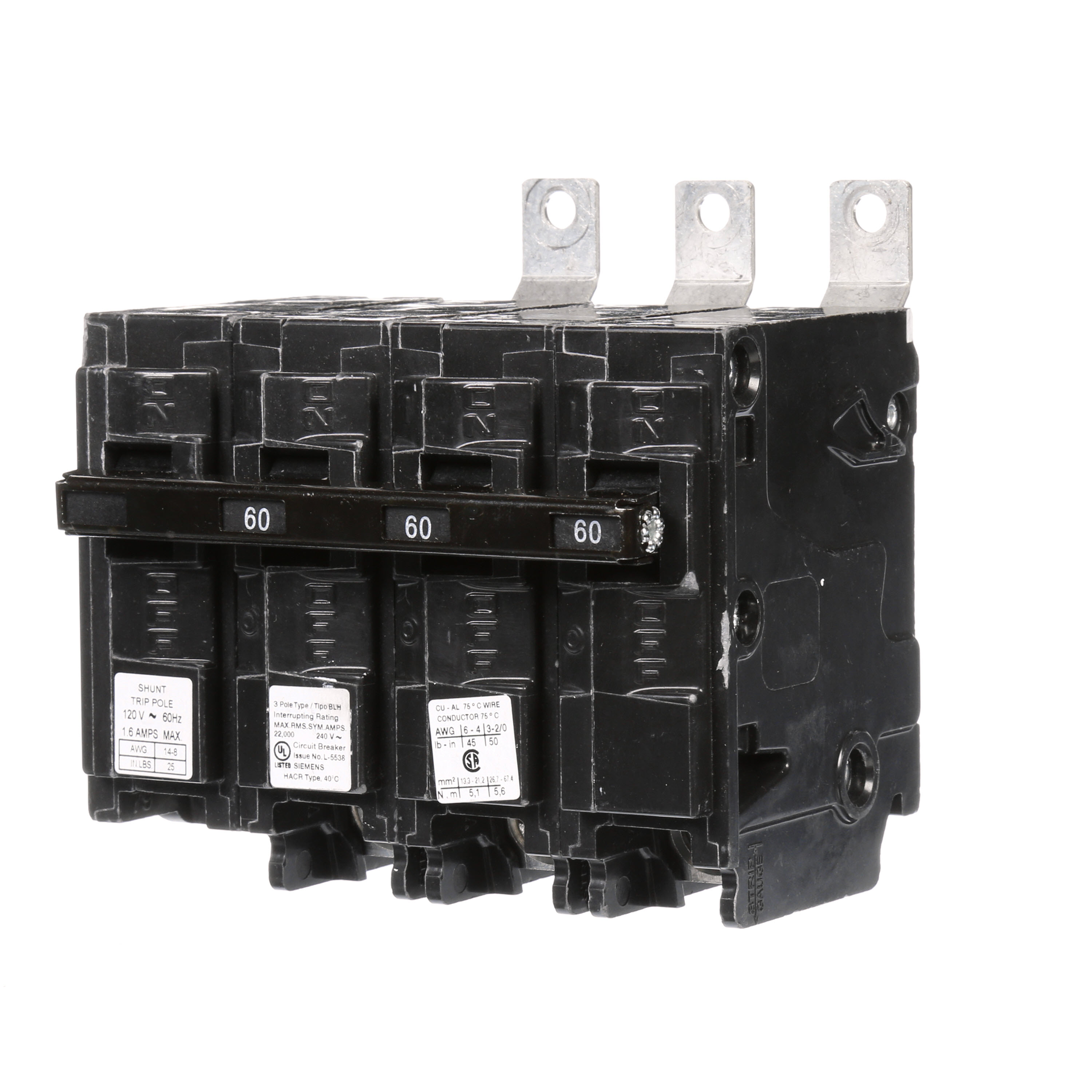

Siemens Speedfax™ B360H00S01 Molded Case Circuit Breaker, 120/240 VAC, 60 A, 22 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
1051020
MFG #: B360H00S01
Siemens
528.46000
/ ea
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
- Catalog URL - Siemens_B215HHNAV_Brochuer_1.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - 10991_4UOTB9CKR0L8MNDI.pdf(Spec Sheet URL)
- Spec Sheet URL - 10991_RA54ZI291OLUNEWB.pdf(Spec Sheet URL)
- Spec Sheet URL - SF17-07-029.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:B360H00S01&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Wiring Diagram URL - SIE_WD_QP-BQ-BL_111128AR10.pdf(Wiring Diagram URL)
- Features
| Shunt Trip 120V |
| Sense when an over current occurs |
| Measure the amount of over current |
| Act by tripping quickly enough to prevent damage to itself and associated conductors |
| Mounting with insta-wire |
| 8 to 4 AWG copper, 8 to 2 AWG aluminum wire |
| 120 VAC shunt trip |
