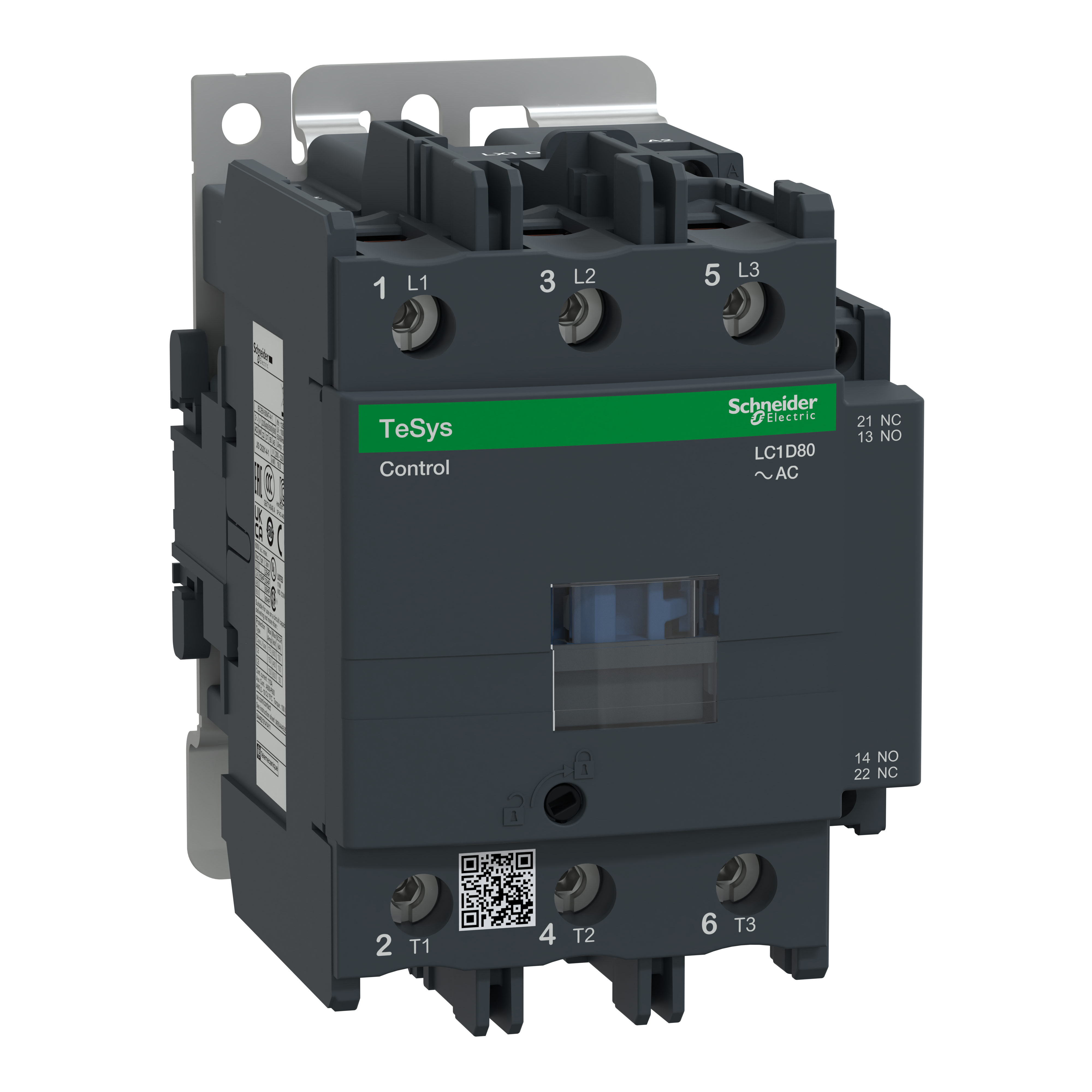

Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 110 VAC Coil, 80 A Max Load, 3NO, 3 Poles
Contactors
52001
MFG #: LC1D80F7
Schneider Electric
559.68000
/ ea
Schneider Electric LC1D80F7 CONTACTOR 600VAC 80AMP IEC +OPTIONS,110 V AC 50/60 Hz,125 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3 NO,3P,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8085015360Den&ext=webp(360 Degree View URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=LC1D80M7C_3D-CAD.stp(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=LC1D25_32_0_OD.dxf(Computer~Aided [CAD|BIM] Model URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=998-20803955_GMA-US.pdf(Brochure URL)
- Spec Sheet URL - 11003_N5182Q3EPMLDU9GB.pdf(Spec Sheet URL)
- Spec Sheet 1 URL(Spec Sheet 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Install Instructions 1 URL - files?p_File_Name=W9 0444935 0114 12.pdf(Install Instructions 1 URL)
- Tech Drawing URL - 11003_587AT0YOMXPBHVW4.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=E0200501-01.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/e8UrRZljFg0(Video)
- Tech Drawing URL - 11003_ON0LMGC5WUKQYPA8.zip(Tech Drawing URL)
- Applications
- Features
| Motor control;resistive load |
| Without built-in suppressor module |
| Conforming to IEC 60947 rated impulse withstand voltage |
| III overvoltage category |
| 125 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current |
| 1100 A at 440 V power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5-1/250 A DC signaling circuit conforming to IEC 60947-5-1 IRMs rated making capacity |
| 1100 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity |
| 160 A gG at 690 V coordination type 2-power circuit, 200 A gG at 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating |
| 0.8 mOhm at 50 Hz - Ith 125 A power circuit average impedance |
| 20 to 35 ms closing, 6 to 20 ms opening operating time |
| 3600 cycles/hr at <=140 deg F (60 deg C) operating rate |
| Without built-in suppressor module coil technology |
| 245 VA at 68 deg F (20 deg C) 50/60 Hz inrush power |
| 26 VA at 68 deg F (20 deg C) 60 Hz hold-in power consumption |
| 6 to 10 W heat dissipation |
| 25 to 400 Hz signaling circuit frequency |
| 5 mA signaling circuit minimum switching current |
| 17 V signaling circuit minimum switching voltage |
| 1.5 ms on de-energisation (between NC and NO contacts)/1.5 ms on energisation (between NC and NO contacts) non-overlap time |
| >10 MOhm signaling circuit insulation resistance |
| TH protective treatment |
| 3 pollution degree |
