Square D™

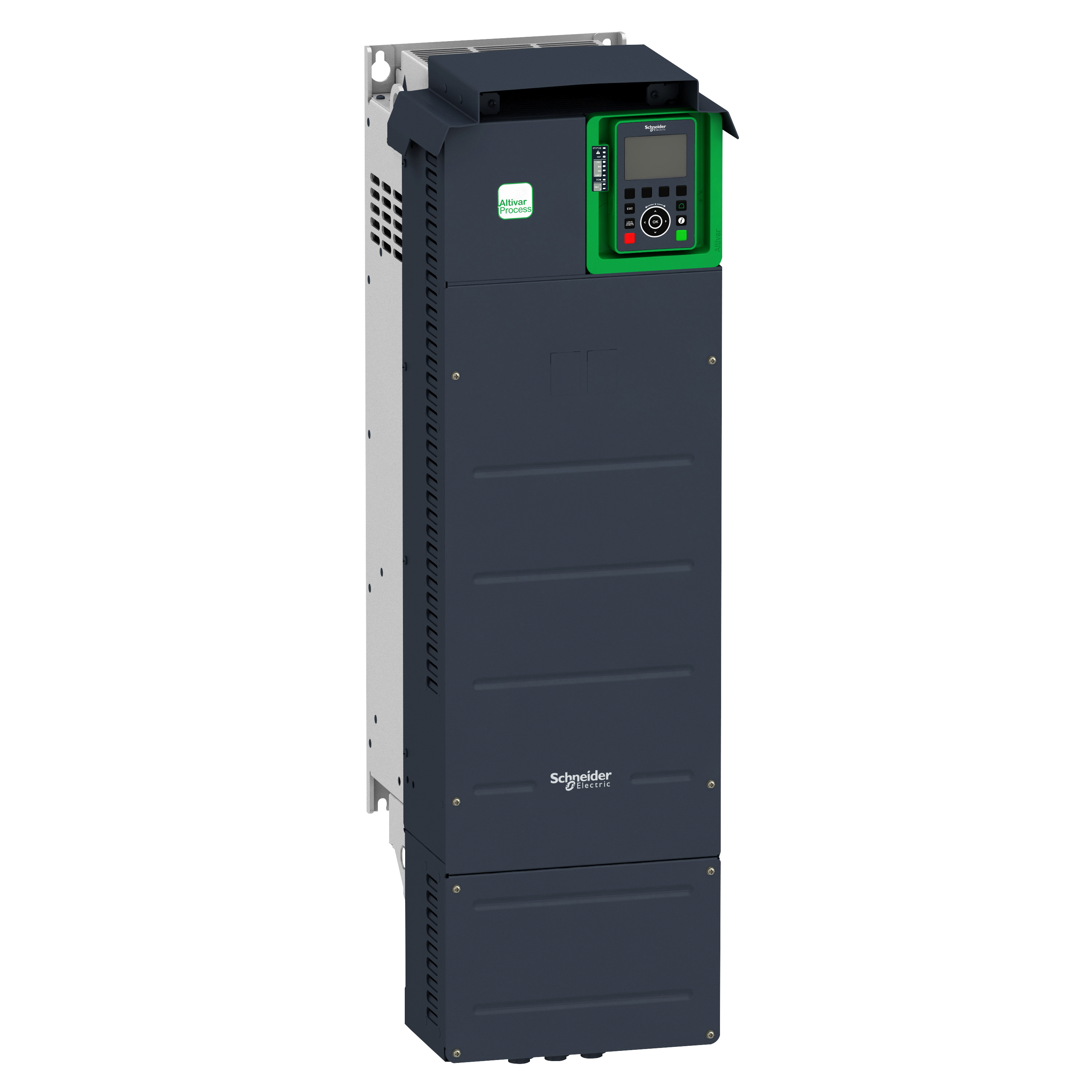

Schneider Electric ATV930D90N4C ATV930 Series Variable Speed Drive, 380 to 480 V, 173.0 A, 125.0 hp normal duty,100.0 hp heavy duty, 11.42 in w x 12.81 in d
Square D™
Schneider Electric ATV930D90N4C ATV930 Series Variable Speed Drive, 380 to 480 V, 173.0 A, 125.0 hp normal duty,100.0 hp heavy duty, 11.42 in w x 12.81 in d
SKU1399075
MFGR #ATV930D90N4C
Call For Price
List: Schneider Electric ATV930D90N4C, Variable Speed Drive, ATV930 Series, 380 to 480 V, 173.0 A, 125.0 hp normal duty,100.0 hp heavy duty, 11.42 in Width, 12.81 in Depth, 36.30 in Height, IP21 Enclosure, Wall Mounting
Schneider Electric ATV930D90N4C, Variable Speed Drive, ATV930 Series, 380 to 480 V, 173.0 A, 125.0 hp normal duty,100.0 hp heavy duty, 11.42 in Width, 12.81 in Depth, 36.30 in Height, IP21 Enclosure, Wall Mounting
Alternate Catalog Number ATV930D90N4C Application Industrial Application,Asynchronous motors,Synchronous motors ARRA Compliant N Buy American Compliant N Catalog Number ATV930D90N4C Communication EtherNet/IP;Modbus serial;Modbus TCP;Ethernet;2-wire RS 485 Country of Origin IN Currency USD Current Rating 145 A 2.5 kHz heavy duty;173 A 2.5 kHz normal duty A Display Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) EU RoHS Indicator Y Gross Weight Per Pack 0.6220 lb Gross Weight per Pack Metric 63.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 59.0000 in Height [Metric] 59.0000 cm Input Voltage 380...480 V - 15...10 % Item Group 22277 Length 104.5000 in Length [Metric] 104.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428548088&lang=en-us Mounting Wall Mount Returnable Y Size 12.81 in Standard IP21 Substitute Product Catalog Number VW3A1112 Type Variable speed drive;2 RJ45;1 RJ45 UNSPSC 39122001 Width [Metric] 46.0000 cm Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Depth 12.815 in Width 46.0000 in Industrial Application,Asynchronous motors,Synchronous motors Variable torque standard;constant torque standard;optimized torque mode;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;line side screw terminal 120 mm² AWG 4/0...250 kcmil;motor screw terminal 120 mm² 250 kcmil;DC bus screw terminal 95...120 mm² AWG 3/0...250 kcmil;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection Embedded Power measurement and Energy dashboard Embedded process monitoring and control Low Harmonics (THDi < 48% at 80% load or THDi < 5% with low harmonic offer) Stop and Go function to reduce energy consumption in standby mode Asset monitoring and protection Drift monitoring Easy maintenance via a Dynamic QR-Code Seamless integration with embedded Ethernet:From device to process control with the Smart Process Object From data to insights with the embedded Web Server Modular and compact design Modular and compact design Easy grid integration Embedded Control (PLC, RTU, HMI) A full set of control options Fully load tested in a controlled laboratory environment Complies with your countrys industry standards Sustainable cost savings thanks to predictive condition-based maintenance Up to 20% downtime reduction without additional investment Excellent motor performance on any type of motor in open or closed loop control Dual port Ethernet maximizes services such as connection to the control room and full process transparency
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV930D90N4C |
| Application | Industrial Application,Asynchronous motors,Synchronous motors |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATV930D90N4C |
| Communication | EtherNet/IP;Modbus serial;Modbus TCP;Ethernet;2-wire RS 485 |
| Country of Origin | IN |
| Currency | USD |
| Current Rating | 145 A 2.5 kHz heavy duty;173 A 2.5 kHz normal duty A |
| Display | Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.6220 lb |
| Gross Weight per Pack Metric | 63.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 59.0000 in |
| Height [Metric] | 59.0000 cm |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22277 |
| Length | 104.5000 in |
| Length [Metric] | 104.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428548088&lang=en-us |
| Mounting | Wall Mount |
| Returnable | Y |
| Size | 12.81 in |
| Standard | IP21 |
| Substitute Product Catalog Number | VW3A1112 |
| Type | Variable speed drive;2 RJ45;1 RJ45 |
| UNSPSC | 39122001 |
| Width [Metric] | 46.0000 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Depth | 12.815 in |
| Width | 46.0000 in |
| Industrial Application,Asynchronous motors,Synchronous motors |
| Variable torque standard;constant torque standard;optimized torque mode;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;line side screw terminal 120 mm² AWG 4/0...250 kcmil;motor screw terminal 120 mm² 250 kcmil;DC bus screw terminal 95...120 mm² AWG 3/0...250 kcmil;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
| Embedded Power measurement and Energy dashboard |
| Embedded process monitoring and control |
| Low Harmonics (THDi < 48% at 80% load or THDi < 5% with low harmonic offer) |
| Stop and Go function to reduce energy consumption in standby mode |
| Asset monitoring and protection |
| Drift monitoring |
| Easy maintenance via a Dynamic QR-Code |
| Seamless integration with embedded Ethernet:From device to process control with the Smart Process Object |
| From data to insights with the embedded Web Server |
| Modular and compact design |
| Modular and compact design |
| Easy grid integration |
| Embedded Control (PLC, RTU, HMI) |
| A full set of control options |
| Fully load tested in a controlled laboratory environment |
| Complies with your countrys industry standards |
| Sustainable cost savings thanks to predictive condition-based maintenance |
| Up to 20% downtime reduction without additional investment |
| Excellent motor performance on any type of motor in open or closed loop control |
| Dual port Ethernet maximizes services such as connection to the control room and full process transparency |
