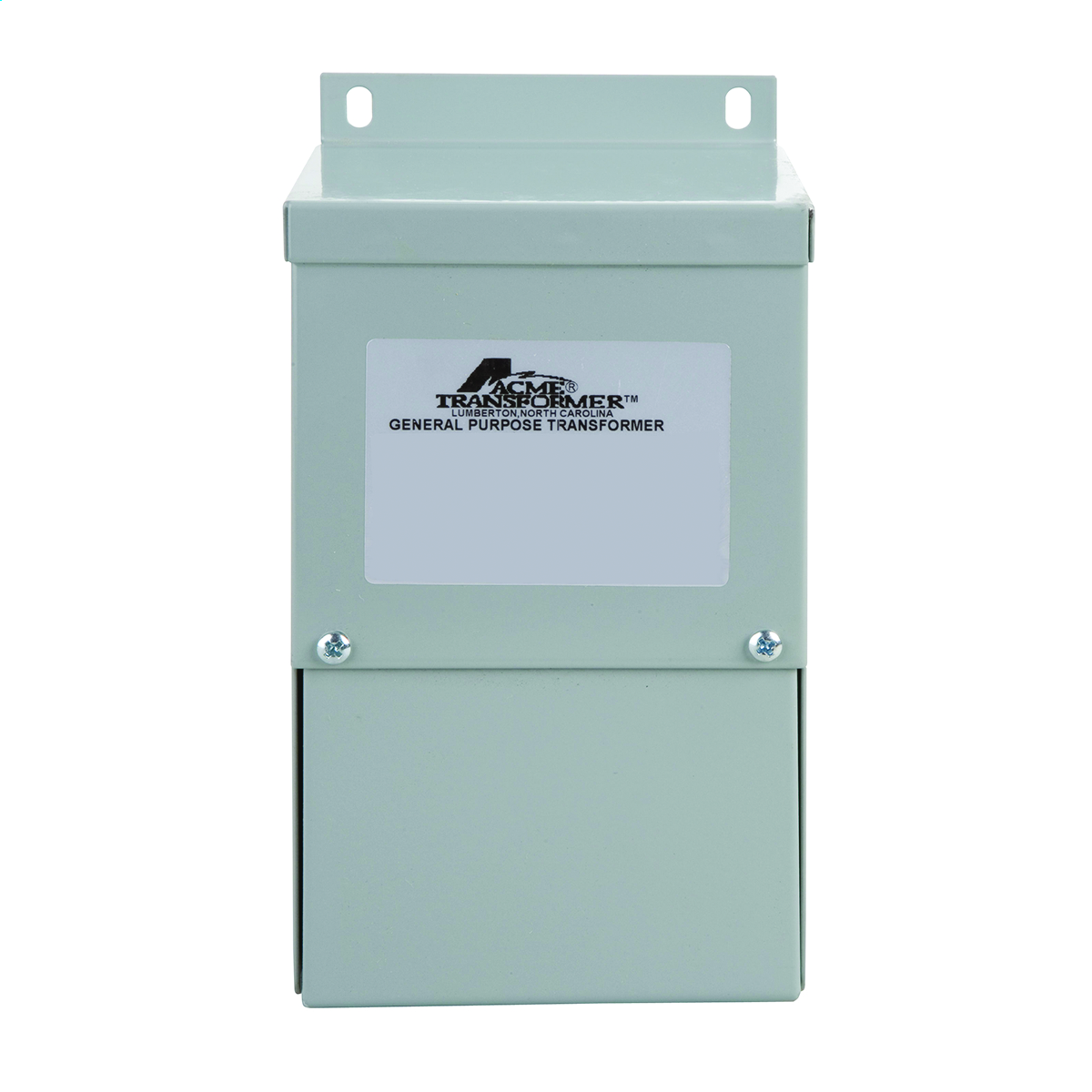

Acme Electric® T181056 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 0.15 kVA, 60 Hz
Buck Boost Transformers
68510
MFG #: T181056
Acme Electric
179.31000
/ ea
Acme Electric® Buck Boost Transformer, Isolation, 120/240 VAC Primary, 16/32 VAC Secondary, 0.15 kVA, 60 Hz, 1 Phase, 9.38/4.69 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R/IP54, 115 deg C, 7.16 in H x 3.89 in W x 3.67 in D
- Catalog URL - IDW_DOCUMENT_1480741299932.pdf(Catalog URL)
- Install Instructions 1 URL - 11112_GMEQCKR8X4L35ATS.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11112_HP5W1VA2YL0ZOUM3.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - 11112_7H4TDAXCJ6NBMU13.pdf(Spec Sheet URL)
- Tech Drawing URL - Acme_BB1_TECHNICAL_DRAWINGS.dwg(Tech Drawing URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- Applications
- Features
| Encapsulated |
| 150 VA |
| Encapsulated core and coil |
| Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT |
| The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line |
| Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense |
| Buck-boost transformers are an economical way to correct a potentially very serious problem |
