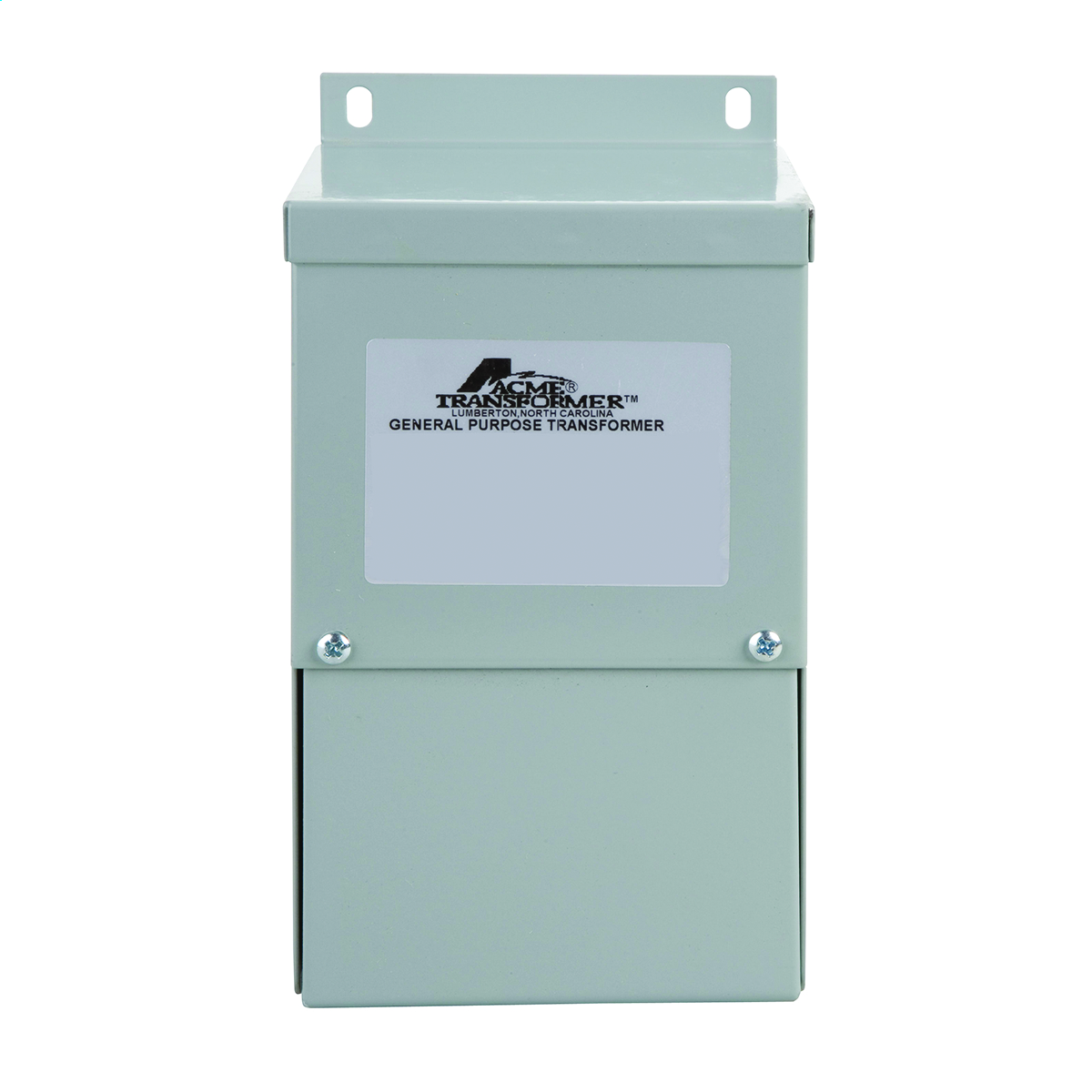

Acme Electric® T181054 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 0.05 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® T181054 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 0.05 kVA, 60 Hz
SKU1144501
MFGR #T181054
Your Cost: $164.63/ea
Acme Electric® Buck Boost Transformer, Isolation, 120/240 VAC Primary, 16/32 VAC Secondary, 50 VA, 60 Hz, 1 Phase, 3.12/1.56 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R/IP54, 115 deg C, 6.41 in H x 3.14 in W x 3.05 in D
Acme Electric® Buck Boost Transformer, Isolation, 120/240 VAC Primary, 16/32 VAC Secondary, 50 VA, 60 Hz, 1 Phase, 3.12/1.56 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R/IP54, 115 deg C, 6.41 in H x 3.14 in W x 3.05 in D
Application Encapsulated ARRA Compliant C Buy American Compliant C Catalog Number T181054 Connection Type Wire Lead Country of Origin MX Currency USD Dimensions 6.41 in H x 3.14 in W x 3.05 in D Enclosure Type NEMA 3R/IP54 Gross Weight Per Pack 4.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 6.41 in Height [Metric] 16.2814 cm Insulation Class H/180 deg C Length 3.05 in Length [Metric] 7.7470 cm Maximum Amperage Rating 3.12/1.56 A Mounting Wall Mounting Type Wall Returnable Y Standards UL 506File No. E79947V150B8B3223 ListedCSA CertifiedOSHA ApprovedANSI SpecifiedIEEE Temperature Rating 115 °C Type Isolation UNSPSC 39121025 UPC 11 04750308821 UPC 12 047503088210 Width 3.14 in Width [Metric] 7.9756 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 50 VA Primary Voltage 120/240 VAC Secondary Voltage 16/32 VAC Encapsulated 50 VA Encapsulated core and coil Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense Buck-boost transformers are an economical way to correct a potentially very serious problem
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T181054 |
| Connection Type | Wire Lead |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.41 in H x 3.14 in W x 3.05 in D |
| Enclosure Type | NEMA 3R/IP54 |
| Gross Weight Per Pack | 4.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 6.41 in |
| Height [Metric] | 16.2814 cm |
| Insulation | Class H/180 deg C |
| Length | 3.05 in |
| Length [Metric] | 7.7470 cm |
| Maximum Amperage Rating | 3.12/1.56 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | Y |
| Standards | UL 506File No. E79947V150B8B3223 ListedCSA CertifiedOSHA ApprovedANSI SpecifiedIEEE |
| Temperature Rating | 115 °C |
| Type | Isolation |
| UNSPSC | 39121025 |
| UPC 11 | 04750308821 |
| UPC 12 | 047503088210 |
| Width | 3.14 in |
| Width [Metric] | 7.9756 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 50 VA |
| Primary Voltage | 120/240 VAC |
| Secondary Voltage | 16/32 VAC |
| Encapsulated |
| 50 VA |
| Encapsulated core and coil |
| Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT |
| The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line |
| Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense |
| Buck-boost transformers are an economical way to correct a potentially very serious problem |
