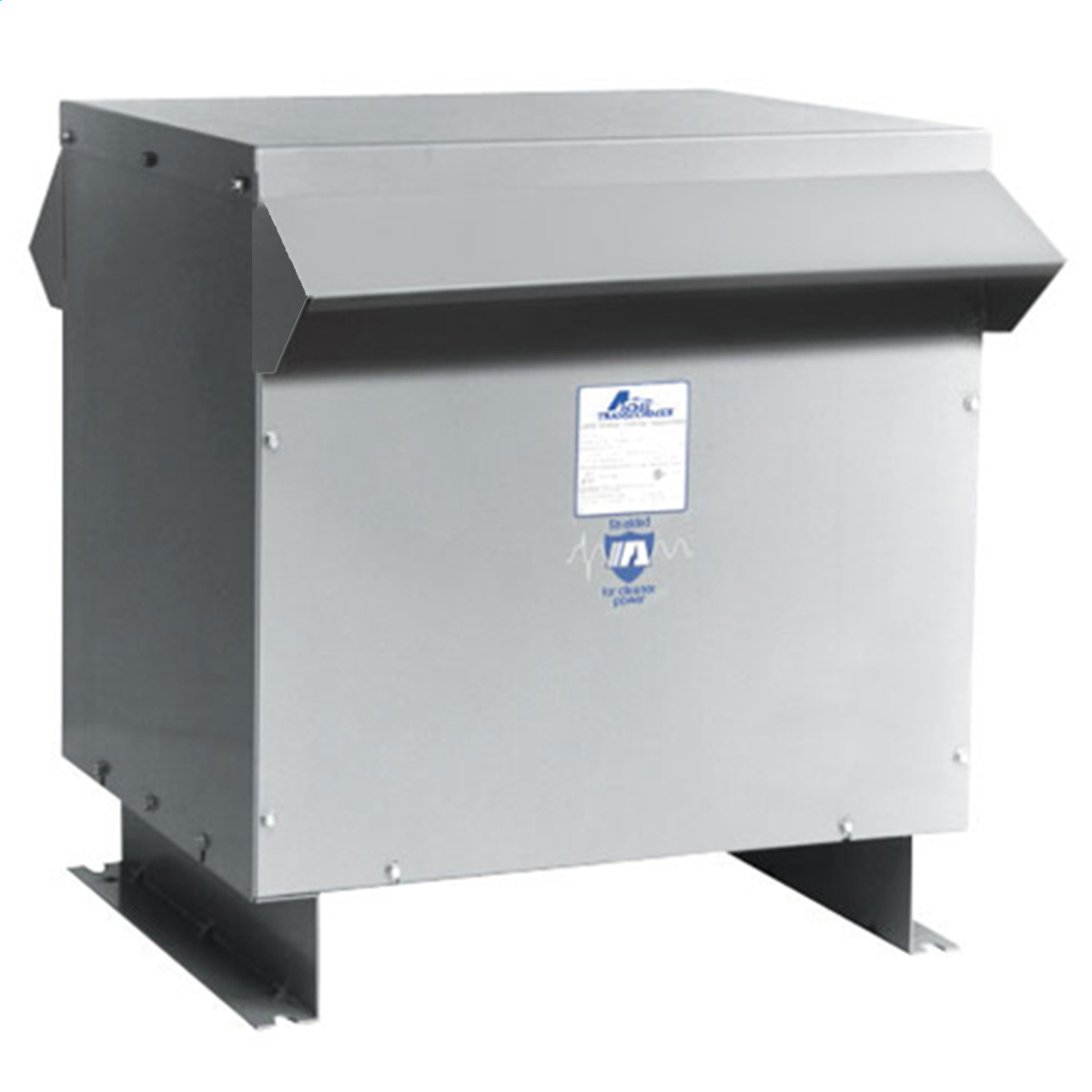

ACME T3150K0023B TRANSFORMER 3 PHAS
SKU915394
MFGR #T3150K0023B
$/ea
Industrical Control Transformer, 3PH 150KVA 480-240 provides a low and safe control voltage for the operation of electromagnetic devices, such as motor starters, contactors, solenoids, timers or other loads requiring above average voltage regulation when actuated.
Industrical Control Transformer, 3PH 150KVA 480-240 provides a low and safe control voltage for the operation of electromagnetic devices, such as motor starters, contactors, solenoids, timers or other loads requiring above average voltage regulation when actuated.
Application Dry Type Distribution Transformer ARRA Compliant C Buy American Compliant C Catalog Number T3150K0023B Connection Type Aluminum Bus Terminal Cooling Ventilated Country of Origin MX Currency USD Dimensions 41.52 in H x 32.9 in W x 29.87 in D Efficiency 98.83 Enclosure NEMA 3R Enclosure Type NEMA 3R Gross Weight Per Pack 1245.0000 lb Gross Weight per Pack Metric 564.73 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 41.52 in Height [Metric] 105.4608 cm Housing Material Steel KVA Rating 150 Length 29.87 in Length [Metric] 75.8698 cm Mounting Floor Mounting Type Floor Returnable Y Standard UL 1561, UL File Number E12547, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, OSHA Compliant, ANSI, IEEE Standards CSA CertifiedUL 1561UL File No. E12547C22.2 No. 47LR7357-32U.S. DOE 10 CFR Part 431PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Temperature Rating 150 °C Type Ventilated UNSPSC 39121001 UPC 11 04750309339 UPC 12 047503093399 Width 32.90 in Width [Metric] 83.5660 cm Winding Aluminum Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Power Rating 150 kVA Primary Voltage 480 Delta VAC Secondary Voltage 120 VAC/240 Delta VAC Dry Type Distribution Transformer Meet DOE 2016 efficiency requirements Quite operation with sound levels below NEMA standards Ventilated - Constructed to provide for circulation of external air through the enclosure to remove excess heat, fumes or vapors Type 3R Enclosures - Intended for outdoor use, primarily to provide a degree of protection against falling rain, sleet and external ice formation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Dry Type Distribution Transformer |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T3150K0023B |
| Connection Type | Aluminum Bus Terminal |
| Cooling | Ventilated |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 41.52 in H x 32.9 in W x 29.87 in D |
| Efficiency | 98.83 |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 1245.0000 lb |
| Gross Weight per Pack Metric | 564.73 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 41.52 in |
| Height [Metric] | 105.4608 cm |
| Housing Material | Steel |
| KVA Rating | 150 |
| Length | 29.87 in |
| Length [Metric] | 75.8698 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Returnable | Y |
| Standard | UL 1561, UL File Number E12547, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Standards | CSA CertifiedUL 1561UL File No. E12547C22.2 No. 47LR7357-32U.S. DOE 10 CFR Part 431PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Temperature Rating | 150 °C |
| Type | Ventilated |
| UNSPSC | 39121001 |
| UPC 11 | 04750309339 |
| UPC 12 | 047503093399 |
| Width | 32.90 in |
| Width [Metric] | 83.5660 cm |
| Winding | Aluminum |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 150 kVA |
| Primary Voltage | 480 Delta VAC |
| Secondary Voltage | 120 VAC/240 Delta VAC |
| Dry Type Distribution Transformer |
| Meet DOE 2016 efficiency requirements |
| Quite operation with sound levels below NEMA standards |
| Ventilated - Constructed to provide for circulation of external air through the enclosure to remove excess heat, fumes or vapors |
| Type 3R Enclosures - Intended for outdoor use, primarily to provide a degree of protection against falling rain, sleet and external ice formation |
