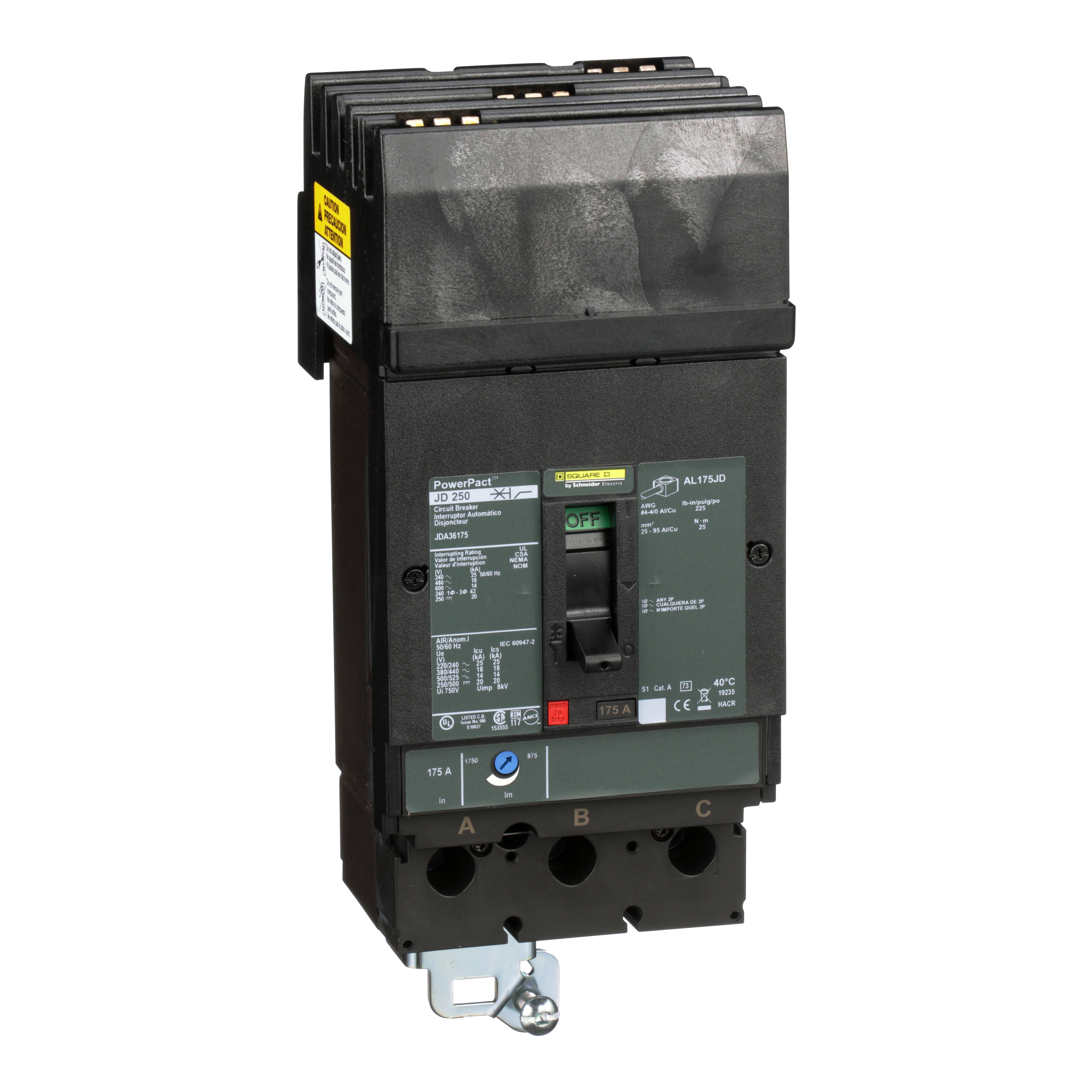

Square D™ I-Line™ PowerPact™ JDA36175 Molded Case Circuit Breaker, 600 VAC, 175 A, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
290385
MFG #: JDA36175
Square D™
2465.62000
/ ea
- Alternate Catalog Number: JDA36175
- Application: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: JDA36175
- Connection: I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC
- Connection Type: Line/Load Lug
- Country of Origin: US
- Currency: USD
- Dimensions: 6.4 in H x 4.12 in W x 4.36 in D
- Enclosure Type: NEMA AB1
- EU RoHS Indicator: Y
- Frame: J Frame
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 790.50
- Gross Volume per Pack Metric: 12953.92
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.0299 lb
- Gross Weight per Pack Metric: 4.29
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 15.7480 in
- Height [Metric]: 15.7480 cm
- Item Group: 01112
- Length: 38.1000 in
- Length [Metric]: 38.1000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=424967&lang=en-us
- Mounting Type: Surface
- Operating Temperature: -13 to 158F (-25 to 70C) °C
- Phase: 3 pH
- Returnable: Y
- Standard: UL LISTED - CSA CERTIFIED - IEC RATED - CCC
- Sub Brand: POWERPACT
- Substitute Product Catalog Number: S29450
- Temperature Rating: 104 °F
- Trip Range: 875 to 1750 A
- Type: MOLDED CASE CIRCUIT BREAKER
- UNSPSC: 39121601
- UPC 11: 78590170067
- UPC 12: 785901700678
- Warranty Description: Contractual Warranty:18 months
- Width: 21.5900 in
- Width [Metric]: 21.5900 cm
- Wire Size: 4 to 4/0 AWG
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 175 A
- Interrupt Rating: 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250 VDC
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC
- Number Of Poles: 3
Square D JDA36175 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 175A,-13F and 158F (-25 C and +70 C),175A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,J-Frame,Low 875A - High 1750A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - index.html?pid=11003&id=9089288360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Install Instructions URL - Square_D_HDA260251_Installation_Sheet.pdf(Install Instructions URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=JDA36175_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_N0K7D9AGOVLSE18T.pdf(Install Instructions 1 URL)
- Video - https://youtube.com/embed/0ifsiqiXvbg(Video)
- Line Drawing URL(Line Drawing URL)
- Video - https://www.youtube.com/embed/GHPCn0u1IUE(Video)
- Service Manual URL - 11003_Z7TW5GLP40EVI8H2.pdf(Service Manual URL)
- Tech Drawing URL - 11003_3AWQDSEZC2T6KXB4.zip(Tech Drawing URL)
- User Manual URL - 11003_2BJ69C04G7FEHRNX.pdf(User Manual URL)
- Spec Sheet URL - 11003_MCVI205EZQRKSJWB.pdf(Spec Sheet URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Video - https://youtube.com/embed/VuQhshcKxko(Video)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| Easy to install, extremely versatile, a wide variety of terminal |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
