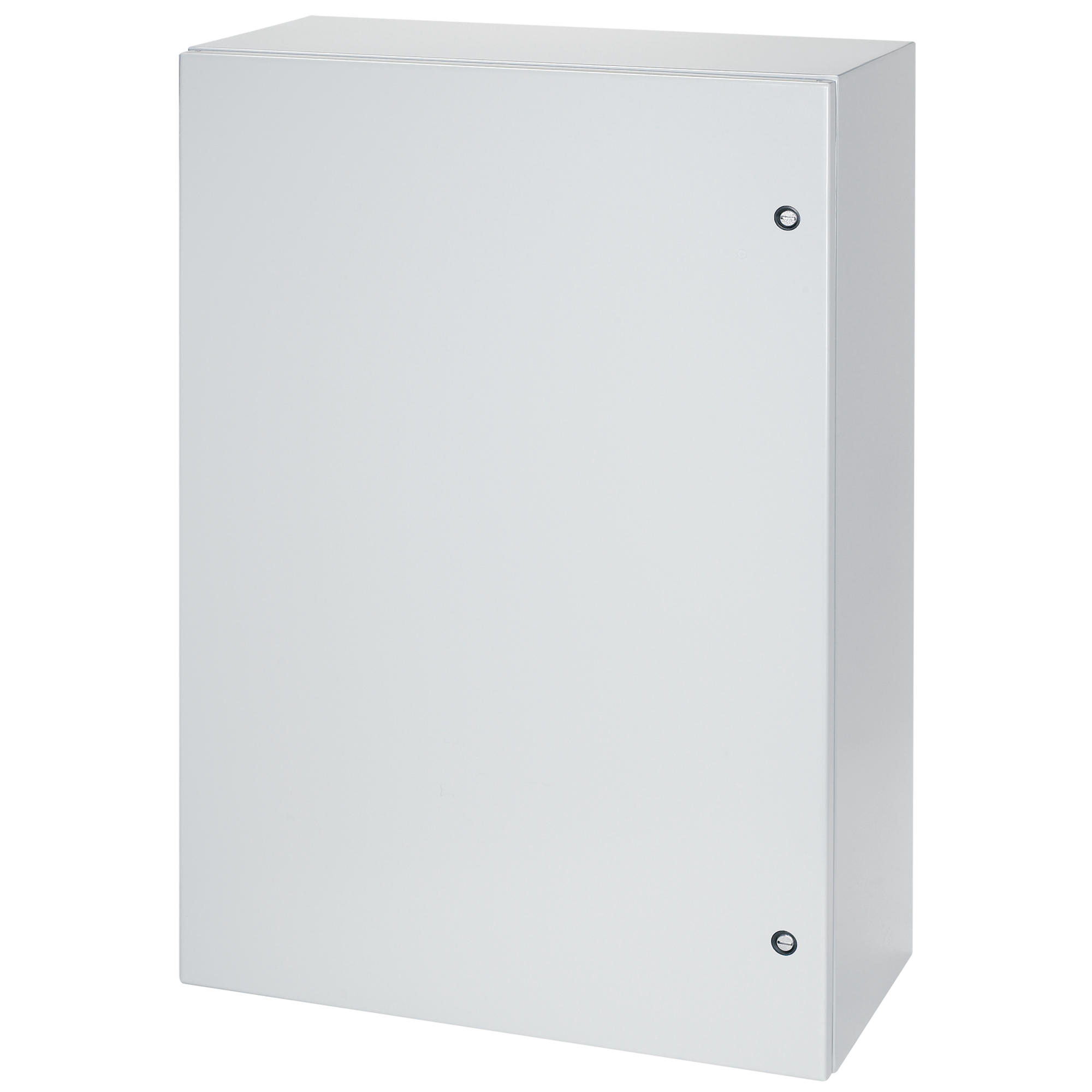

nVent HOFFMAN CONCEPT™ CSD483010 CW1 1-Door Enclosure, 48 in L x 30 in W x 10 in D, NEMA 4/12 NEMA Rating, Steel
Wall Mount Enclosures
892294
MFG #: CSD483010
nVent HOFFMAN
1264.30000
/ ea
nVent HOFFMAN CONCEPT™ Enclosure, 1-Door, Series: CW1, 48 in Length, 30 in Width, 10 in Depth, NEMA 4/12, Hinged Cover, 46.2 in W x 28.2 in H Panel, Lock: Quarter Turn Latch, Wall Mount, Steel, Polyester Powder Painted, Gray
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_UR2KL0GPSQFCZMH9.pdf(Install Instructions 1 URL)
- Install Instructions URL - Hoffman_CP1210_Installation_Sheet.pdf(Install Instructions URL)
- Spec Sheet URL - Spec-00286.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/ocjnVqclSOU(Video)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives |
| Streamlined styling, flush quarter-turn latches and an attractive, durable finish |
| Seams continuously welded and ground smooth |
| Corner formed door |
| Simple easy-to-remove and install hinge pins with built-in captivation clip |
| High-torque threadless studs and fasteners on door |
| Minimum width body flange provides maximum door opening |
| External formed body flange |
| Door opens 210 deg |
| Removable door with hidden hinges for clean, aesthetic appearance |
| Seamless foam in place gasket |
| Four hinges on 60 in high enclosures |
| Grounding stud on body, bonding provision on door |
| Installation instructions provided |
