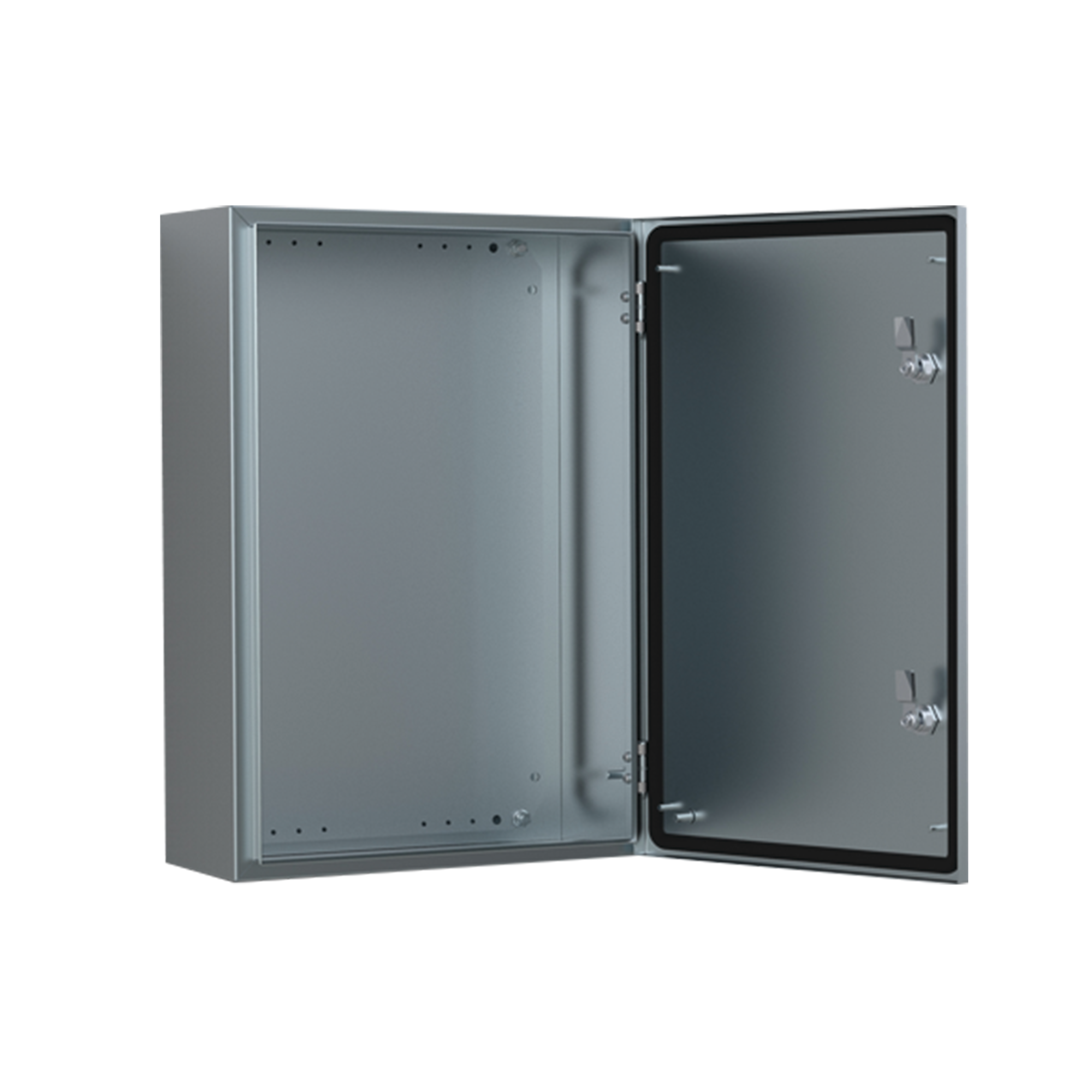

nVent HOFFMAN ASR0406021 1-Door Wall Mount Enclosure, 600 mm W x 210 mm D x 400 mm H, 4X/12/13/IK10/IP66 NEMA Rating, 304L Stainless Steel
Wall Mount Enclosures
1168258
MFG #: ASR0406021
nVent HOFFMAN
1395.05000
/ ea
nVent HOFFMAN Wall Mount Enclosure, 1-Door, Series: ASR, 600 mm Width, 210 mm Depth, 400 mm Height, 4X/12/13/IK10/IP66 NEMA Rating, 550 mm W x 370 mm H Panel, Lock: 3 mm Double Bit, Wall Mounting, 304L Stainless Steel, Pre-Grained
- Applications
- Features
| Corrosive Environments; Factory Automation and Process Control; Hazardous Environments |
| Protection - Corresponds with IP66, Type 4X, 12, 13, IK10 |
| Body - Folded and seam welded |
| Door - Corner formed in one piece |
| Surface mounted, with 130 deg opening |
| Concealed AISI 304 stainless steel hinges with captive pin |
| Can be mounted to allow left or right hand opening |
| For AISI 316L, sealing is ensured by an injected one piece silicone gasket |
| Inner M6 welded studs to mount door profiles MMDP |
| Lock - customized zamak double bit 3 mm lock, with 90 deg movement and anti-vibration mechanism |
| Stainless steel lock and other versions are available as accessories |
| Mounting plate - The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment |
| On the top and bottom there are holes to facilitate cable fixing |
| Fixed onto M8 press welded studs to the rear of the enclosure |
| All sides, from 800 mm and above, are strengthened by folded edges |
| By using the AMG accessory, the mounting plate position can be adjusted to any depth |
| Cable access - No gland plate openings as standard, to maximize sealing and cleanliness |
