YG-1

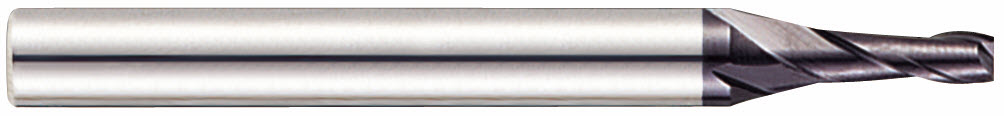

YG-1 93496 EM959 X-Power Square End High Performance End Mill, 1-1/2 in OAL, 2 Flutes, 0.028 in Cutter, 0.055 in, 1/8 in Shank
Custom_Product_Images_Illustration
YG-1
YG-1 93496 EM959 X-Power Square End High Performance End Mill, 1-1/2 in OAL, 2 Flutes, 0.028 in Cutter, 0.055 in, 1/8 in Shank
SKU660974
MFGR #93496
Your Cost: $23.08/ea
List: YG-1 High Performance End Mill, Square End, Series: EM959, X-Power, 0.028 in Cutter Dia, 1-1/2 in Overall Length, 0.055 in Maximum Depth of Cut, 2 Flutes, 1/8 in Shank Dia, 30 deg Helix Angle, Plain Shank, 1.455 in Shank Length, Solid Micro Grain Carbide, TiAlN Coated
YG-1 High Performance End Mill, Square End, Series: EM959, X-Power, 0.028 in Cutter Dia, 1-1/2 in Overall Length, 0.055 in Maximum Depth of Cut, 2 Flutes, 1/8 in Shank Dia, 30 deg Helix Angle, Plain Shank, 1.455 in Shank Length, Solid Micro Grain Carbide, TiAlN Coated
Application Steel Catalog Number 93496 Country of Origin KR Cut Type Center Cutting Direction Right Hand Gross Weight Per Pack 0.0200 lb Helix Angle 30 ° Material Carbide Maximum Depth of Cut 0.055 in Series EM959 Shank Length 1.455 in Shank Type Plain Type Carbide, 2 Flute Miniature Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 0.02 in Finish AlTiN Length of Cut 0.04 in Number of Flutes 2 Overall Length 1.5 in Shank Diameter 0.125 in Steel Titanium aluminum nitride (TiAlN) coating lubricates the end mill for high temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than TiN and TiCN coatings High performance carbide provides better wear resistance and toughness than standard carbide and can run at higher speeds than high speed or cobalt steel, resisting wear and high cutting temperatures Miniature end mill has small cutting and shank diameters for better control than larger tool s when creating precise details and contours Two flutes offer better chip carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material For high performance precision machining of high hardened steel up to Rockwell hardness C7
content loaded
content loaded
content loaded
content loaded
- Attributes
- Applications
- Features
- Substitute Products
| Application | Steel |
| Catalog Number | 93496 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.0200 lb |
| Helix Angle | 30 ° |
| Material | Carbide |
| Maximum Depth of Cut | 0.055 in |
| Series | EM959 |
| Shank Length | 1.455 in |
| Shank Type | Plain |
| Type | Carbide, 2 Flute Miniature |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 0.02 in |
| Finish | AlTiN |
| Length of Cut | 0.04 in |
| Number of Flutes | 2 |
| Overall Length | 1.5 in |
| Shank Diameter | 0.125 in |
| Steel |
| Titanium aluminum nitride (TiAlN) coating lubricates the end mill for high temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than TiN and TiCN coatings |
| High performance carbide provides better wear resistance and toughness than standard carbide and can run at higher speeds than high speed or cobalt steel, resisting wear and high cutting temperatures |
| Miniature end mill has small cutting and shank diameters for better control than larger tool s when creating precise details and contours |
| Two flutes offer better chip carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material |
| For high performance precision machining of high hardened steel up to Rockwell hardness C7 |
