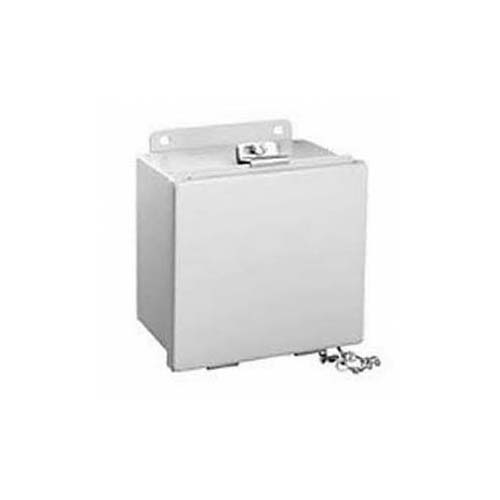

Wiegmann® B100806 Enclosure, 8 in W x 6 in D, Type 12 and 13, Steel
Wall Mount Enclosures
952985
MFG #: B100806
Wiegmann®
254.72000
/ ea
The Hubbell Wiegmann B Series JIC box is a standard of the automotive industry but has wide application in other industries. The box incorporates a chain secured lift off cover and is designed to safeguard components against exposure to dust, dirt, oil and water.
- http://www.hubbell-wiegmann.com/(Seller Home Page URL)
- Line Drawing URL - 11030_WM4NV9FJO5GBZDC8.pdf(Line Drawing URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 11030_AE1WD0QGBY7PNKLR.pdf(Spec Sheet URL)
- Tech Drawing URL - HWDB100806-S.dwg(Tech Drawing URL)
- Warranty URL - Wiegmann_Warranty_Price_Sheet_3-8-2012.pdf(Warranty URL)
- Applications
- Features
| The Hubbell Wiegmann B Series JIC box is a standard of the automotive industry but has wide application in other industries. The box incorporates a chain secured lift off cover and is designed to safeguard components against exposure to dust, dirt, oil, a |
| Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. External screw clamps are quick and easy to operate. Lift off cover design. Chain holds cover to box when cover is removed. Grounding provisions provided. |
| Body 14 ga and doors fabricated from 16 ga steel |
| Continuously welded seams ground smooth, less knockouts or holes |
| Lids are sealed with closed cell oil resistant neoprene gasket |
| External mounting plates, top and bottom of enclosure |
| Weldnuts are provided to secure optional back panel |
| External screw clamps are quick and easy to operate |
| Lift off cover design and chain holds cover to box when cover is removed |
| Grounding provisions provided |
| ANSI-61 gray polyester powder inside and out finish |
| 10 in H |
| 10-3/4 x 6 in mounting |
| 11-1/2 x 8.31 in overall |
