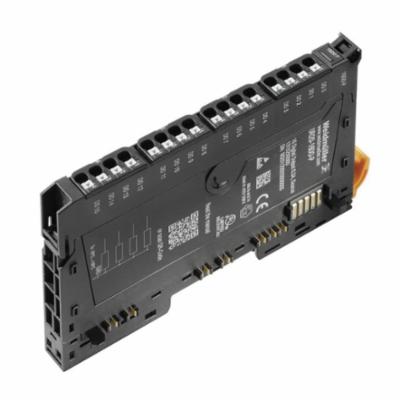

Weidmuller 1315250000 Remote Input-Output Module, 16 Outputs

Weidmuller 1315250000 Remote Input-Output Module, 16 Outputs

SKU976702

MFGR #1315250000

Your Cost: $144.27/ea
Digital output modules are available in the following variants: 4 DO, 8 DO with 2- and 3-wire technology, 16 DO with or without PLC interface connection. They are mainly used for the incorporation of decentralized actuators. All outputs are designed for DC-13 actuators acc. to DINEN60947-5-1 and IEC 61131-2 specifications. As with the digital input modules, frequencies of up to 1 kHz are possible. Protection of the outputs ensures maximum system safety. This consists of an automatic restart following a short-circuit. Clearly visible LEDs signal the status of the entire module as well as the status of individual channels. In addition to the standard applications of the digital output modules, the range also includes special variants such as the 4RO-SSR module for rapidly switching applications. Fitted with solid state technology, 0.5 A is available here to each output. Furthermore, there is also the 4RO-CO relay module for power-intensive applications. It equipped with four CO contacts, optimized for a switching voltage of 255 V UC and designed for a switching current of 5 A.
Digital output modules are available in the following variants: 4 DO, 8 DO with 2- and 3-wire technology, 16 DO with or without PLC interface connection. They are mainly used for the incorporation of decentralized actuators. All outputs are designed for DC-13 actuators acc. to DINEN60947-5-1 and IEC 61131-2 specifications. As with the digital input modules, frequencies of up to 1 kHz are possible. Protection of the outputs ensures maximum system safety. This consists of an automatic restart following a short-circuit. Clearly visible LEDs signal the status of the entire module as well as the status of individual channels. In addition to the standard applications of the digital output modules, the range also includes special variants such as the 4RO-SSR module for rapidly switching applications. Fitted with solid state technology, 0.5 A is available here to each output. Furthermore, there is also the 4RO-CO relay module for power-intensive applications. It equipped with four CO contacts, optimized for a switching voltage of 255 V UC and designed for a switching current of 5 A.

Amperage Rating

8 mA

Catalog Number

1315250000

Country of Origin

DE

Dimensions

76 mm L x 11.5 mm W x 120 mm H

Gross Weight Per Pack

1 lb

Returnable

Returnable with 20% restock fee

Standards

UL 94|CE/IEC Certified|cULus Listed for Hazardous Locations|ATEX Compliant|RoHS Compliant|IP20 Rated

Temperature Rating

-20 to 60 °C

Voltage Rating

24 VDC

Stock Status

NONSTOCK

Brand

Weidmuller

Manufacturer

Weidmuller, USA

Number of Outputs

16
