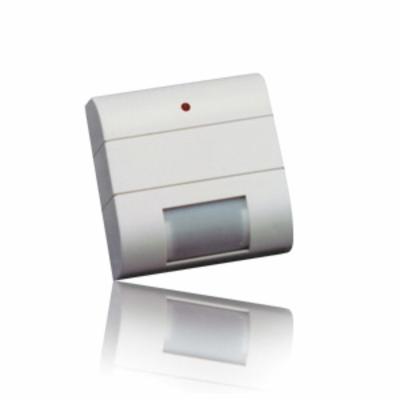

WattStopper® WPIR WPER Occupancy Sensor, 24 VDC, PIR Sensor, 300 sq-ft Coverage, 110 deg, Ceiling Mount
Custom_Product_Images_Illustration
WattStopper® WPIR WPER Occupancy Sensor, 24 VDC, PIR Sensor, 300 sq-ft Coverage, 110 deg, Ceiling Mount
SKU36810
MFGR #WPIR
Your Cost: $122.50/ea
WattStopper's WPIR Sensor is a versatile ceiling mount sensor that utilizes the latest passive infrared (PIR) technology to turn lights on and off based on occupancy. The WPIR controls lighting in a wide variety of applications, but is especially adept at controlling small spaces with well-defined coverage.
WattStopper's WPIR Sensor is a versatile ceiling mount sensor that utilizes the latest passive infrared (PIR) technology to turn lights on and off based on occupancy. The WPIR controls lighting in a wide variety of applications, but is especially adept at controlling small spaces with well-defined coverage.
Amperage Rating 14 mA Catalog Number WPIR Color White Connection Type Flying Lead Control Output Automatic On/Automatic Off Country of Origin CN Dimensions 2.5 in L x 2.5 in W x 1.14 in D Gross Weight Per Pack 0.2500 lb Lamp Type LED Material Plastic Series W Series Standards RoHS CompliantcUL ListedUL 244AUL 508 Temperature Rating 35 °C Time Delay 30 s to 30 min UNSPSC 39122236 UPC 11 75418226103 UPC 12 75418226103 Stock Status NONSTOCK Brand WattStopper® Manufacturer Legrand Coverage 300 ft² Mounting Type Ceiling Sensor Type Passive Infrared Viewing Angle 110 ° Voltage Rating 24 VDC Passive Infrared PIR occupancy sensor turns lights on and off based on occupancy 30 s to 30 min user adjustable time delay Automatic or manual on operation when used with a BZ-150 power pack ASIC technology reduces components and provides greater reliability 30 segment multi-element fresnel lens Incorporated daylight filter prevents short wavelength infrared waves, such as those emitted by the sun, from affecting WPIR Uses the latest PIR technology to reliably control lighting in a variety of applications Multi-element fresnel lens allows the sensor to efficiently collect infrared energy and provide optical gain over a defined field of view Alternate viewing patterns depending on mounting choice Optional on override through logic key/on bypass LED indicates occupancy detection Dual element, temperature compensated pyroelectric sensor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 14 mA |
| Catalog Number | WPIR |
| Color | White |
| Connection Type | Flying Lead |
| Control Output | Automatic On/Automatic Off |
| Country of Origin | CN |
| Dimensions | 2.5 in L x 2.5 in W x 1.14 in D |
| Gross Weight Per Pack | 0.2500 lb |
| Lamp Type | LED |
| Material | Plastic |
| Series | W Series |
| Standards | RoHS CompliantcUL ListedUL 244AUL 508 |
| Temperature Rating | 35 °C |
| Time Delay | 30 s to 30 min |
| UNSPSC | 39122236 |
| UPC 11 | 75418226103 |
| UPC 12 | 75418226103 |
| Stock Status | NONSTOCK |
| Brand | WattStopper® |
| Manufacturer | Legrand |
| Coverage | 300 ft² |
| Mounting Type | Ceiling |
| Sensor Type | Passive Infrared |
| Viewing Angle | 110 ° |
| Voltage Rating | 24 VDC |
| Passive Infrared |
| PIR occupancy sensor turns lights on and off based on occupancy |
| 30 s to 30 min user adjustable time delay |
| Automatic or manual on operation when used with a BZ-150 power pack |
| ASIC technology reduces components and provides greater reliability |
| 30 segment multi-element fresnel lens |
| Incorporated daylight filter prevents short wavelength infrared waves, such as those emitted by the sun, from affecting WPIR |
| Uses the latest PIR technology to reliably control lighting in a variety of applications |
| Multi-element fresnel lens allows the sensor to efficiently collect infrared energy and provide optical gain over a defined field of view |
| Alternate viewing patterns depending on mounting choice |
| Optional on override through logic key/on bypass |
| LED indicates occupancy detection |
| Dual element, temperature compensated pyroelectric sensor |
