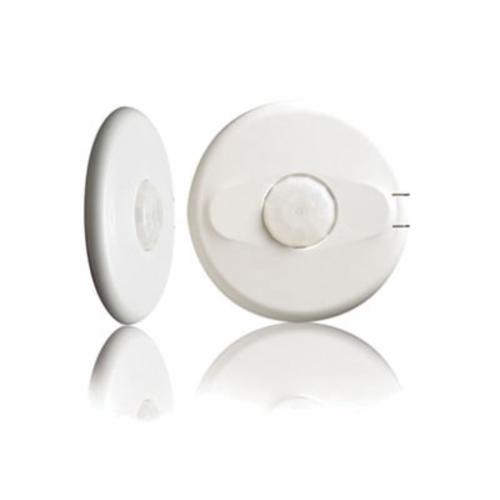

WattStopper® CI-305 Low Voltage Ceiling Mount Occupancy Sensors, 24 VAC/VDC, Passive Infrared Sensor, 360 deg
Ceiling Mount Occupancy Sensors
1391062
MFG #: CI-305
WattStopper®
139.44000
/ ea
PIR technology senses occupancy by detecting the difference between heat emitted from the human body in motion and the background space. Relying on a clear line-of-sight view, passive infrared sensors make 100 percent coverage cut off possible. These sensors utilize a unique fresnel lens which divides the coverage area into zones, enhancing detection of small movement.
- 5 Years(Warranty URL)
- http://www.passandseymour.com(Seller Home Page URL)
- Install Instructions URL - WattStopper_CI_305_Installation_Instructions.pdf(Install Instructions URL)
- Spec Sheet URL - ws-cutsheet-ci-300_16807.pdf(Spec Sheet URL)
- Tech Drawing URL - ci-305.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/qsVCQV9uGKM(Video)
- Features
| Passive Infrared |
| 95% relative humidity, non-condensing, for indoor use only environmental conditions |
| This passive infrared (PIR) ceiling sensors automatically turn lighting on and off based on occupancy |
| The sensor mounts on the ceiling with a flat, low profile appearance and provides 360 deg of coverage |
| Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI |
| Walk through mode turns lights off 3 min after the area is initially occupied - ideal for brief visits such as mail delivery |
| Built-in light level sensor featuring simple, one step setup |
| Sensors work with low voltage momentary switches for manual control |
| Dip switch simplifies sensor adjustments |
| Clip mounting system simplifies ceiling tile installation |
| Plug terminal wiring system for quick and easy installation |
| 1 A at 30 VAC/VDC load rating |
| Magnetic low voltage |
