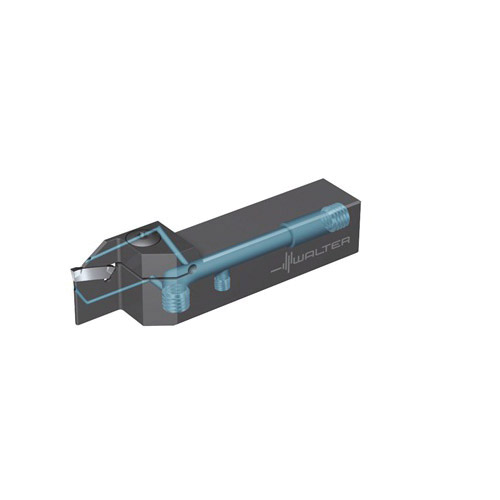

Walter 7107486 G1011.12L-3T15GX16-P Turn Toolholders for External and Internal Turning
Custom_Product_Images_Illustration
Walter 7107486 G1011.12L-3T15GX16-P Turn Toolholders for External and Internal Turning
SKU1039951
MFGR #G1011.12L-3T15GX16-P
Your Cost: $289.54/ea
VALENITE Walter Cut Grooving/Cut-Off Tool Holder, Series: G1011, Insert Compatibility: GX16-2E3 .., 1.398 in Head Length, 5.906 in Overall Length, 3/4 in H x 3/4 in W Shank, Left Hand Cutting, 0.118 in Minimum Groove Width, 0.591 in Maximum Depth of Cut, Screw Clamp
VALENITE Walter Cut Grooving/Cut-Off Tool Holder, Series: G1011, Insert Compatibility: GX16-2E3 .., 1.398 in Head Length, 5.906 in Overall Length, 3/4 in H x 3/4 in W Shank, Left Hand Cutting, 0.118 in Minimum Groove Width, 0.591 in Maximum Depth of Cut, Screw Clamp
Catalog Number G1011.12L-3T15GX16-P Head Length 1.398 in Minimum Groove Width 0.118 in Series G1011 Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Clamp Type Screw Cutting Direction Left Hand Insert Compatibility GX16-2E3 .. Maximum Depth of Cut 0.591 in Overall Length 5.906 in Shank Size 3/4 in H x 3/4 in W External machining 0 deg radial grooving 1-piece shank tool Reduced tool head height Optimum screw position Stable insert seat design Clamping screw can be accessed from above and below Maximum clamping force due to optimum screw position For use on lathes of all types 0.087 in W body 0.707 in W functional 0 deg (straight) approach angle 3/4 in H cutting ISO Code: G1011.12L-3T15GX16-P ANSI Code: G1011.12L-3T15GX16-P
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | G1011.12L-3T15GX16-P |
| Head Length | 1.398 in |
| Minimum Groove Width | 0.118 in |
| Series | G1011 |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Clamp Type | Screw |
| Cutting Direction | Left Hand |
| Insert Compatibility | GX16-2E3 .. |
| Maximum Depth of Cut | 0.591 in |
| Overall Length | 5.906 in |
| Shank Size | 3/4 in H x 3/4 in W |
| External machining |
| 0 deg radial grooving |
| 1-piece shank tool |
| Reduced tool head height |
| Optimum screw position |
| Stable insert seat design |
| Clamping screw can be accessed from above and below |
| Maximum clamping force due to optimum screw position |
| For use on lathes of all types |
| 0.087 in W body |
| 0.707 in W functional |
| 0 deg (straight) approach angle |
| 3/4 in H cutting |
| ISO Code: G1011.12L-3T15GX16-P |
| ANSI Code: G1011.12L-3T15GX16-P |
