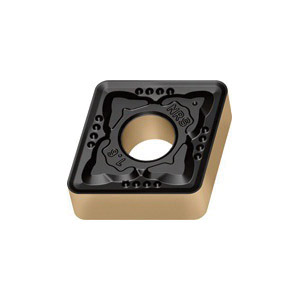

Valenite Tiger-tec® Silver 5866883 Double Sided Negative Turning Insert, CNMG432-NRS WSM10 ANSI, Rhombic, CNMG Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 5866883 Double Sided Negative Turning Insert, CNMG432-NRS WSM10 ANSI, Rhombic, CNMG Insert
SKU661360
MFGR #CNMG432-NRS WSM10
Your Cost: $17.45/ea
List: VALENITE Tiger-tec® Silver Turning Insert, Double Sided Negative, CNMG Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, NRS Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer's Grade: WSM10, ANSI Code: CNMG432-NRS WSM10, ISO Code: CNMG120408-NRS WSM10, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
VALENITE Tiger-tec® Silver Turning Insert, Double Sided Negative, CNMG Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, NRS Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer's Grade: WSM10, ANSI Code: CNMG432-NRS WSM10, ISO Code: CNMG120408-NRS WSM10, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
ANSI Code CNMG432-NRS WSM10 Catalog Number CNMG432-NRS WSM10 Corner Radius 0.8 mm Country of Origin DE Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 5.16 mm Included Angle 80 deg ISO Code CNMG120408-NRS WSM10 Relief Angle 0 deg Sub Brand Tiger-tec® Thickness 4.76 mm Type Double Sided Negative Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker NRS Inscribed Circle 12.7 mm Insert Style CNMG Manufacturer's Grade WSM10 Material Carbide Material Grade M/S Maximum Depth of Cut 4 mm Shape Rhombic NRS Geometry - Roughing, specially for high temperature alloy (Ni, Co, Fe-based alloys Precise cutting edge design Alternative to NR4 geometry Cylindrical hole 2 cutting edges 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.16 to 0.35 mm feed/rev 12.9 mm cutting edge length
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG432-NRS WSM10 |
| Catalog Number | CNMG432-NRS WSM10 |
| Corner Radius | 0.8 mm |
| Country of Origin | DE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 5.16 mm |
| Included Angle | 80 deg |
| ISO Code | CNMG120408-NRS WSM10 |
| Relief Angle | 0 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 4.76 mm |
| Type | Double Sided Negative |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | NRS |
| Inscribed Circle | 12.7 mm |
| Insert Style | CNMG |
| Manufacturer's Grade | WSM10 |
| Material | Carbide |
| Material Grade | M/S |
| Maximum Depth of Cut | 4 mm |
| Shape | Rhombic |
| NRS Geometry - Roughing, specially for high temperature alloy (Ni, Co, Fe-based alloys |
| Precise cutting edge design |
| Alternative to NR4 geometry |
| Cylindrical hole |
| 2 cutting edges |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.16 to 0.35 mm feed/rev |
| 12.9 mm cutting edge length |
