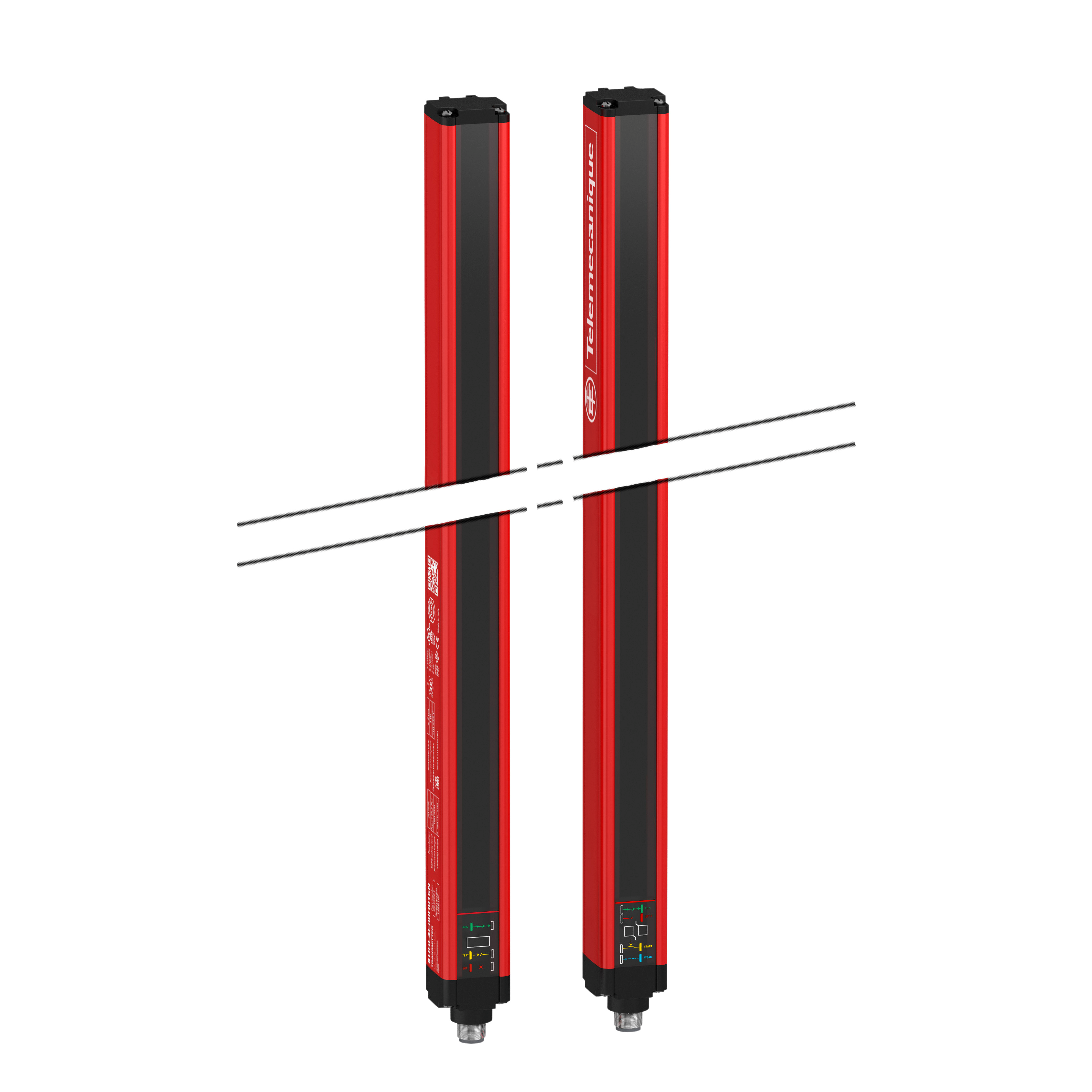

Telemecanique XUSL4E30H091L XUSL Safety Light Curtain Type 4, 35.83 in h protected, 3 to 20/0 to 10 m by Cabling operating, 46 beams
Safety Light Curtains
PDW~11801159
MFG #: XUSL4E30H091L
Telemecanique Sensors
1705.06000
/ ea
Telemecanique XUSL4E30H091L, Safety Light Curtain Type 4, XUSL, 35.83 in Protected Height, 3 to 20/0 to 10 m by Cabling Operating, 46 Beam, 7.5 ms Response, 2.5 deg at 3 m Aperture Angle, IR LED Light Source, 24 VDC Supply, 2 A Supply, OSSD solid state PNP arc suppression Output Function, 0.4 A Output Current, Aluminium/Polycarbonate/Polypropylene Housing Material, IP65/IP67 Enclosure, 5-Pin M12 Cable/8-Pin M12 Cable Male Connection, -4 to 131,14 to 131 deg F Storage/Operating
- Brochure URL - 123af9895a0d08dfaeed86713a1d3486400e2249.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_4ZAFEPLTN93RH5SY.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11003_IOE29L05QRH87NU6.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_M8BW6N0QTCKYXG3P.pdf(Service Manual URL)
- Service Manual URL - 11003_OBK01E3LGP9D86YU.pdf(Service Manual URL)
- Spec Sheet URL - 11003_H9G65JFPAMIYZ8LD.pdf(Spec Sheet URL)
- User Manual URL - 11003_25LF9KWE07HSYV6B.pdf(User Manual URL)
- User Manual URL - 11003_4MZSTU76OCP2N0AR.pdf(User Manual URL)
- Applications
- Features
| For hand protection, Long sensing range, Hp, For all the dangerous machines with free access requiring a zone protection for the security of, For hand protection - Long sensing range - Hp, For hand protection, For operators in the vicinity of hazardous zones, For an optimum functioning, For transmitter and 8-pin M12 male connector for receiver |
| 2 safety outputs OSSD solid-state PNP arc suppression) output type |
| 1.18 in (30 mm) r resolution |
| 35.83 in (910 mm) hp height protected |
| 46 number of beams |
| Selected by wiring external device monitoring (edm) |
| Transmitter-receiver system detection system |
| 7.5 ms response time |
| Adjustable mounting bracket(s)1 receiver(s)1 transmitter(s) 1 user guide with certificate of conformity on CD-ROM kit composition |
| 2.5 deg at 3 m eaa effective aperture angle |
| Power supply IEC 61496-1Power supply IEC 60204-1 supply |
| Power supply IEC 61496-1Power supply IEC 60204-1 supply |
| 0.4 A safety outputs OSSD output current limits |
| 24 V output voltage |
| DC output circuit type |
| Red RAL 3000 housing colour |
| By fixing brackets fixing mode |
| Long distance offer type |
| 89/336/EEC - electromagnetic compatibility89/655/EEC - work equipment98/37/EEC - machinery directives |
| Type 4 IEC 61496-1SIL 3 IEC 61508SILCL 3 IEC 62061Category 4 EN/ISO 13849-1PL = e EN/ISO 13849-1 safety level (correctly wired) |
