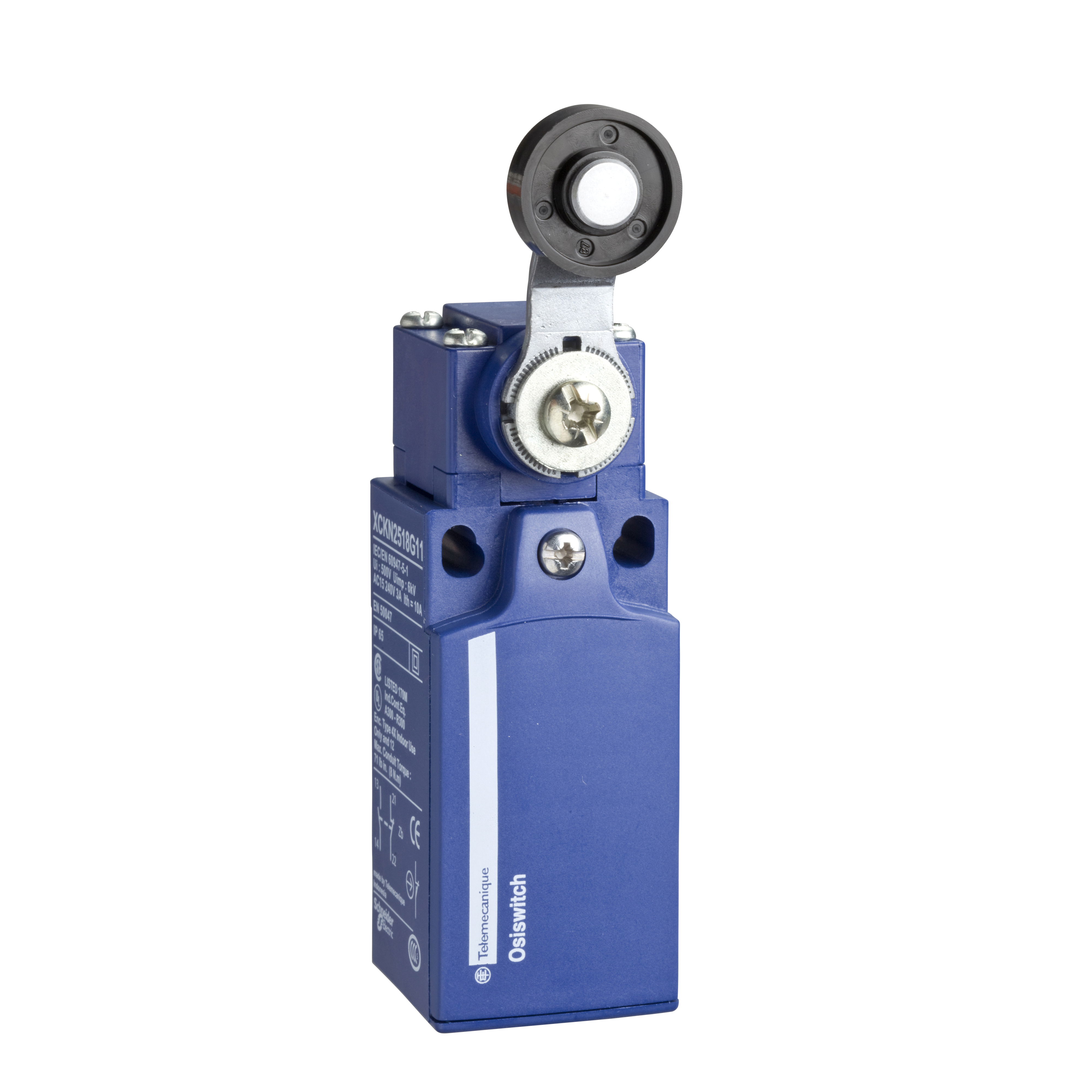

Telemecanique XCKN2118G11 XC Standard Format Fixed Limit Switch, 250 VDC, 240 VAC, 10 A, Spring Return Roller Lever Actuator, 1NC-1NO Contact, 2 Poles
Rotary Actuated Limit Switches
PDW~6421818
MFG #: XCKN2118G11
Telemecanique Sensors
24.00000
/ ea
Telemecanique OsiSense® XC Limit Switch, Standard Format Fixed, Series: XCKN, 250 VDC, 240 VAC, 10 A, 1NC-1NO, 2 Pole, 25 MOhm Closed Contact Resistance, Snap, Spring Return Roller Lever, 1 x 0.34 to 2 x 1.5 sq-mm Screw Clamp Terminal, IP65, 30 mm W x 44.5 mm D x 108 mm H, 5000000 cycles Electrical/10000000 cycles Mechanical Operating Cycles, -25 to 70 deg C Operating, Plastic, Environmental Conditions: -40 to 70 deg C Storage
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - sales?sn=XCKN2118G11(Tech Drawing URL)
- Service Manual URL - 11003_UCAN6FIZET0GKB8Q.pdf(Service Manual URL)
- Spec Sheet URL - 11003_6DPNTMVE5LAW3J1F.pdf(Spec Sheet URL)
- Applications
- Features
| Electric Lift - Lifting Platforms/Elevators/Escalators, Packaging Machinery - Packaging Machines/Shrink Wrap Machines/Food and Beverage Machinery - Bottling/Textile |
| FIXED,PLASTIC |
| Simple - hundreds of complete switches can be assembled from a few stock components, reducing selection time and inventory |
| Heads and levers are adjustable in 15 deg increments up to 360 degrees for precise and fast target alignment and are installed or interchanged quickly by releasing a lever instead of loosening multiple screws |
| Damaged parts are easily replaced, saving you time and money over replacing the entire switch |
| Economical - OsiSense® XC switches offer a more cost effective solution for high volume OEM's combined with high performance - up to 10 million operations and proven reliability |
| Rotary head |
