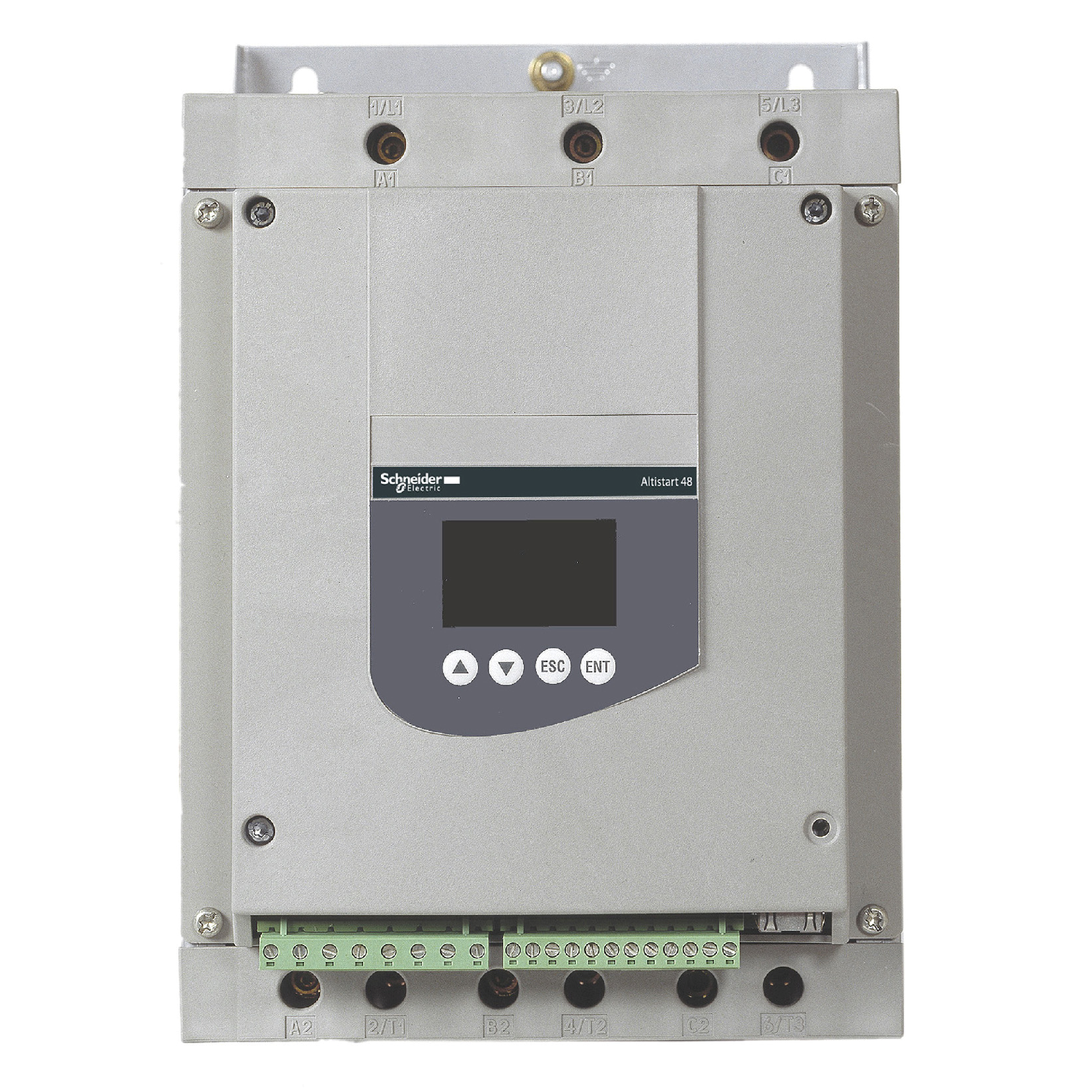

Telemecanique Altistart 48 Square D™ ATS48D62Y Soft Starter With Heat Sink, IP20 Enclosure
Open Soft Starters
194279
MFG #: ATS48D62YR
Square D™
1184.90000
/ ea
Telemecanique Altistart 48 Square D™ Soft Starter, Series: ATS48, 177 to 759 VAC, 62 A, 50/60 Hz Frequency, 15 hp, 20 hp, 30 hp, 40 hp, 50 hp Motor, 3 ph, RJ45 Connection, IP20 Enclosure, -10 to 40 deg C Operating, 11.42 in L x 7.48 in W x 9.25 in D Dimensions
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Service Manual URL - 11003_F46W12J50LEYMU9G.pdf(Service Manual URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ATS48D62Y_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_AZGHUWCIF6KRM1DE.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- User Manual URL - 11003_WYULO5ATQ4EDHVPF.pdf(User Manual URL)
- Spec Sheet URL - 11003_AM0OGHNTBD1VQIYP.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_RI7LNCQ3F4JE0TD2.pdf(Tech Drawing URL)
- User Manual URL - 11003_EQXNLKU42YWO38B7.pdf(User Manual URL)
- Tech Drawing URL - 11003_YA0CFOGTRMD2ELH9.pdf(Tech Drawing URL)
- Tech Bulletin URL - 11003_MEPQZGXC07I5R6OS.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_S2G6TUD5QWKOVZF4.pdf(Tech Bulletin URL)
- Service Manual URL - 11003_ZCTNOJ19Q65W24K0.pdf(Service Manual URL)
- Video - https://www.youtube.com/embed/ZtyXMItit5E(Video)
- User Manual URL - files?p_enDocType=User guide&p_File_Name=ATS48_User_Manual_1494409_04.pdf(User Manual URL)
- Applications
- Features
| Asynchronous Motors, Pumps, Fans and High Inertia Machines, Compressors, Conveyors, Heavy Duty Industry and Ventilation Machine Applications |
| EXTERNAL BYPASS (OPTIONAL) |
| Performance with exclusive torque control system (TCS) |
| 30% smaller than the Altistart® 46 |
| 3-seven segment displays |
| Thermal protection by I2t calculation |
| Thermal protection with PTC probes |
| Simplified wiring with top and bottom connections |
| Integrated ModBus protocol |
| POWERSUITE™ software, 3-current sensors |
| Overload detection function |
| Integrated functional keypad |
| Integrated functional keypad |
| SCRs designed with 1800 V PIV ratings |
| +/-5% frequency tolerance |
| 15 hp at 208 VAC, 20 hp at 230 VAC, 30 hp at 400 VAC, 40 hp at 460 VAC, 50 hp at 575 VAC motor rating |
