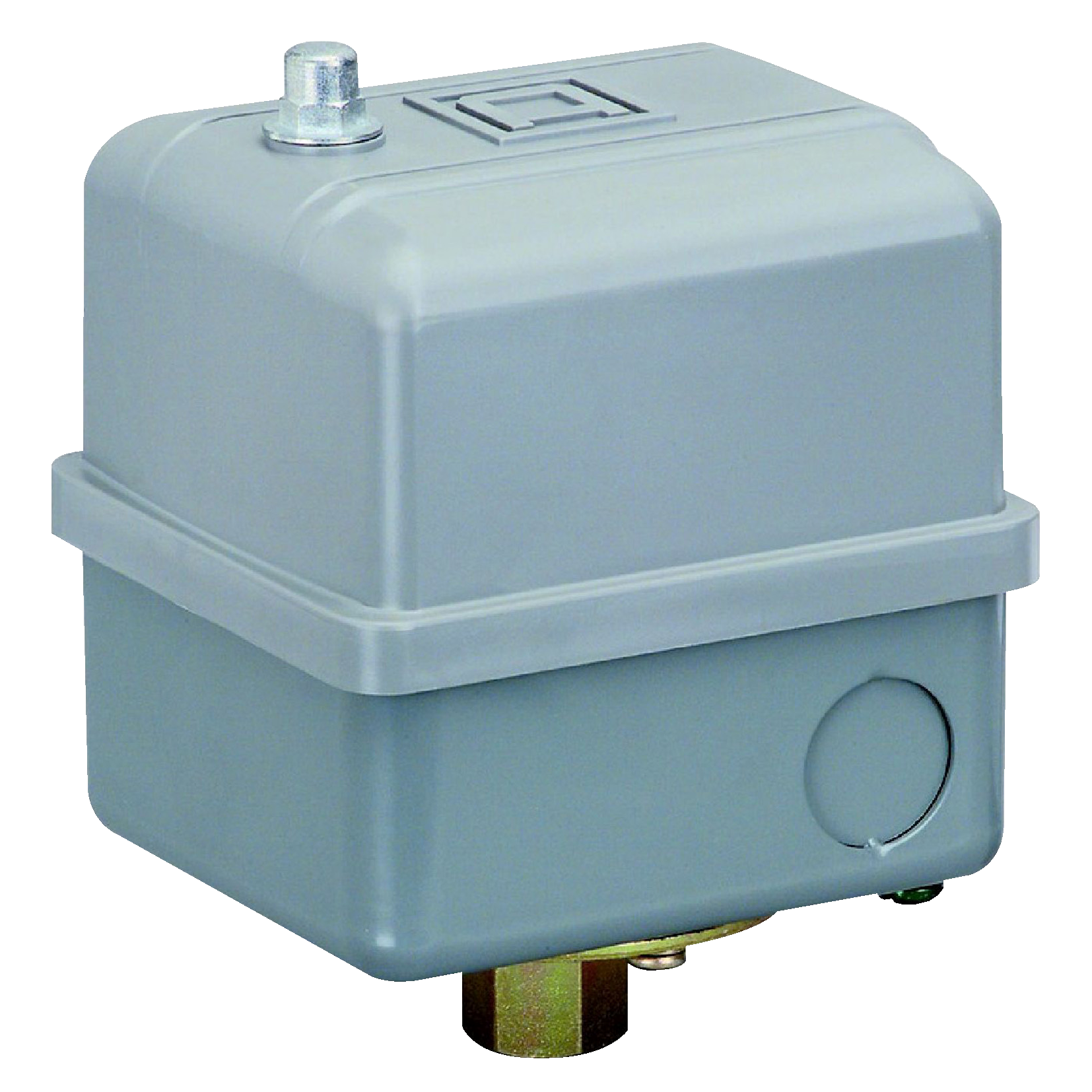

Telemecanique 9013GSG2J24 PRESSURE SWITCH 575
Pressure Control Switches
128689
MFG #: 9013GSG2J24
Telemecanique Sensors
127.47000
/ ea
Telemecanique 9013GSG2J24 PRESSURE SWITCH 575VAC 5HP G +OPTIONS,-,0.25 inch NPSF internal conforming to UL 508,15...30 psi,20...80 psi,40...60 psi,80 psi (5...60 psi),300 PSIG,5 to 60 PSIG,DPST,General Purpose (Indoor),NEMA 1,Pressure Switch,Pumptrol,Screw Clamp,UL listed, CSA,control electrically driven water pumps and air compressors,fresh water (-22...257 deg.F)-air (-22...257 deg.F)
- Brochure URL - 11003_U15DY9OPJN7FG43B.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_b10280cf867b73e94e1871c4f71f7a065c58d3555af5a3fb8c8a52715abc2a2f.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_BGX9OJ5D4NT2VYI1.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_9013GSG2J24_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_CN8RVX013QY6IDJE.pdf(Service Manual URL)
- Service Manual URL - 11003_CPJTB8F0X1VINW4H.pdf(Service Manual URL)
- Spec Sheet URL - 11003_B4GTDSKQI7FAZ920.pdf(Spec Sheet URL)
- Applications
- Features
| Control electrically driven water pumps and air compressors;Power circuit;Regulation between 2 thresholds |
| - |
| 9013G power pressure switches rated for the direct control of motors in pump and compressor applications |
| Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service |
| Drift proof cut-in and cut-out settings |
| Has visible vertical contacts, easy to inspect without removal |
| An extra strong frame that resists distortion when mounting the switch to a compressor |
| Designed for the direct control of motors in pump and compressor applications |
| 1/4 in NPSF Internal pressure |
| 40 to 60 psi pressure |
