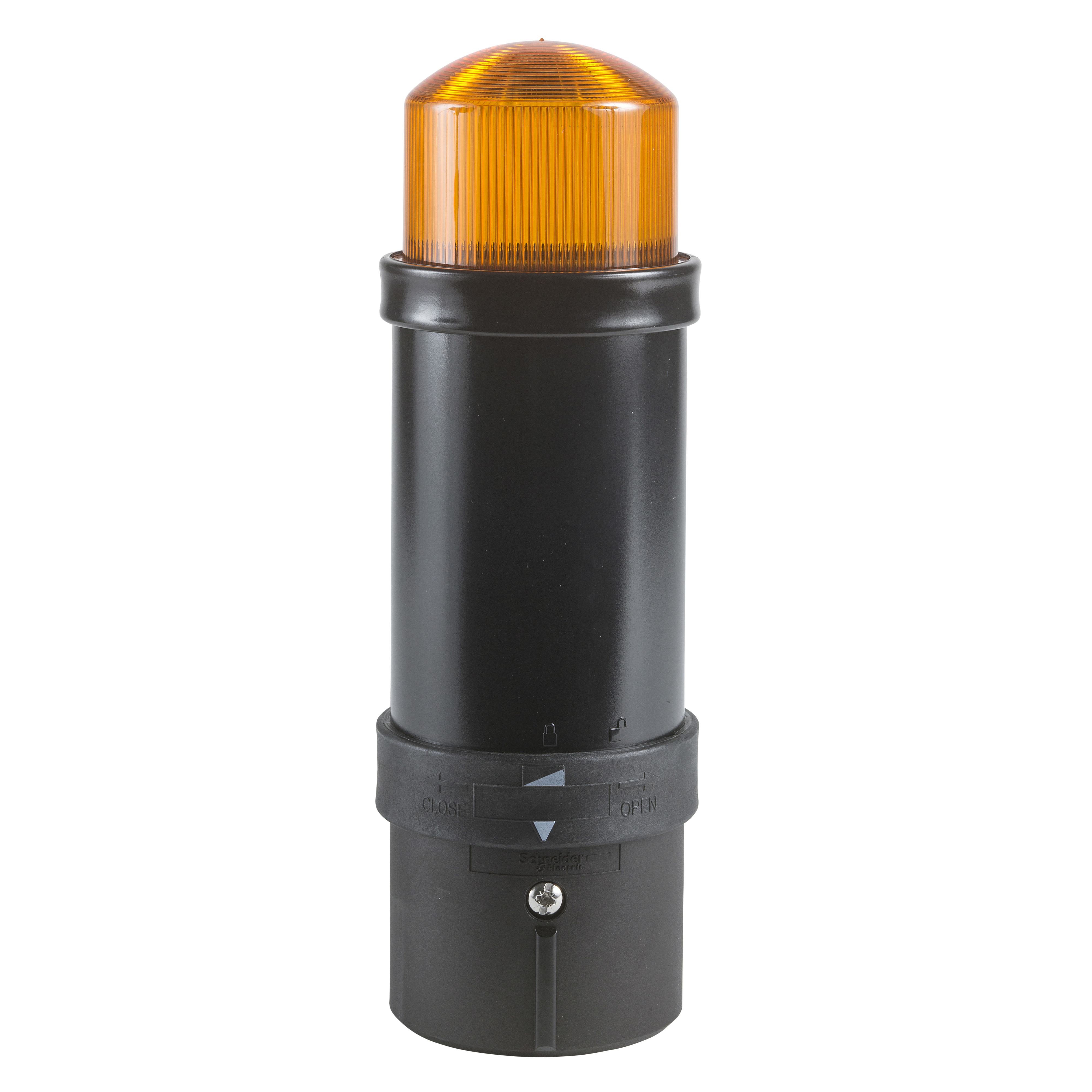

Square D™ XVBL Flashing Signal Strobe Beacon, 24 VDC, Flash Discharge Tube Lamp, 2.76 in Dia, Orange Lens
Strobe Beacons
137092
MFG #: XVBL8B5
Square D™
523.14000
/ ea
Schneider Electric XVBL8B5 24V ORANGE STROBE LIGHT,(1) Lens Unit and (1) Base Unit,24 V AC/DC,70 mm,70 mm,70 mm,Direct or Tube,Harmony XVB Universal,NEMA 4X/12,UL Listed - CSA Certified - IEC Rated,complete beacon,complete beacon,complete beacon,flash discharge tube,flashing,orange integral flash discharge tube
- 360 Degree View URL - index.html?pid=11003&id=8054339360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_RJZYO04D2VLXABMK.pdf(Install Instructions 1 URL)
- Catalog URL - IDW_DOCUMENT_65fe95c83387e8d9f1c878e9f76c3e99d9b4728a8b30da70b2afddf405a80b2e.pdf(Catalog URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 11003_9SNJY4XEZ6FLPD15.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_QH2LZE7AWX6IS0O9.pdf(Tech Drawing URL)
- Features
| SCREW CLAMP TERMINALS, <= 1 X 1.5 MMA² WITH CABLE END |
| Harmony™ XVB universal tower light compatibility |
| Base unit with direct or tube fixing mode illuminated unit beacon or indicator bank unit type |
| Glass reinforced polyamide (base unit), polycarbonate (illuminated unit) material |
| Orange integral flash discharge tube light source |
| <=1 x 1.5 sq-mm with cable end screw clamp terminals, connection capacity connection |
| 250 VAC conforming to IEC 60947-1 rated insulation voltage |
| 0.85 to 1.1 un conforming to IEC 60947-5-1 nominal voltage limit |
| 4 kV conforming to IEC 60947-1 rated impulse withstand voltage |
| (GND) ground, (COM-1)PW terminals description ISO n deg 1 |
| TC protective treatment |
| -40 to 158 deg F ambient air temperature for storage |
| Class I on support tube, class II on base unit conforming to IEC 61140 protection against electric shock |
| IP65 on fixing base XVBZ0, IP66 on base unit conforming to IEC 60529 |
