Schneider Electric

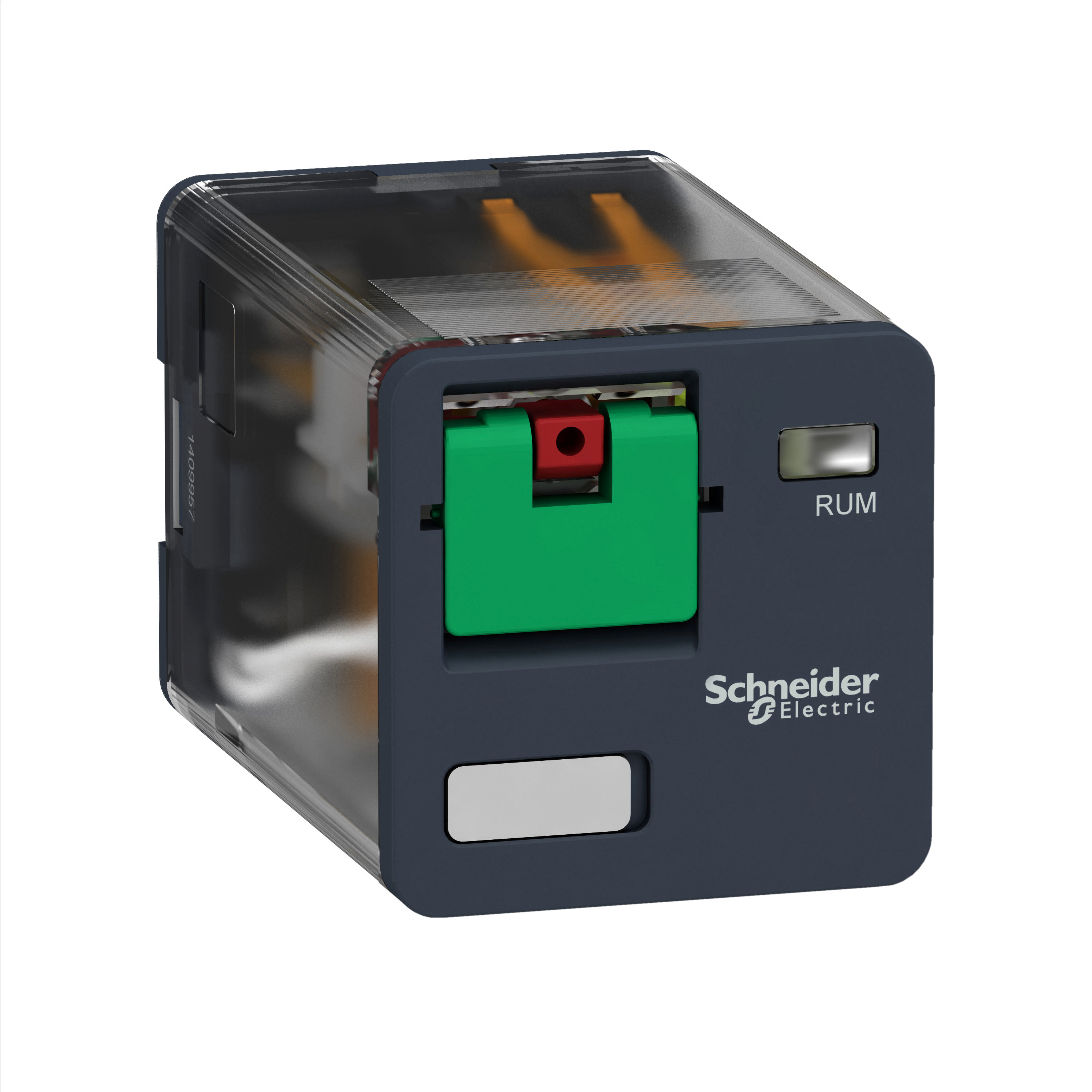

Square D™ RUMC21F7 Universal Plug-In Relay, 10 A, 2CO SPDT Contact Form, 120 VAC Coil
Custom_Product_Images_Illustration
Schneider Electric
Square D™ RUMC21F7 Universal Plug-In Relay, 10 A, 2CO SPDT Contact Form, 120 VAC Coil
SKU853931
MFGR #RUMC21F7
Your Cost: $12.96/ea
Schneider Electric RUMC21F7 RELAY 2CO CYL PINS 10A250V 120VAC COIL TEST,2 C/O,250 V conforming to IEC,plug-in relay
Schneider Electric RUMC21F7 RELAY 2CO CYL PINS 10A250V 120VAC COIL TEST,2 C/O,250 V conforming to IEC,plug-in relay
Alternate Catalog Number RUMC21F7 Amperage Rating 10 A ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number RUMC21F7 Coil 250 V CONFORMING TO IEC Coil Voltage 120 VAC Contact Configuration 2 C/O Contact Form 2CO/SPDT Contact Material AgNi Contact Rating 10 A at 250 VAC/28 VDC Country of Origin US Currency USD Enclosure Type IP40 EU RoHS Indicator Y Gross Volume Per Pack 5.29 Gross Volume per Pack Metric 86.69 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1900 lb Gross Weight per Pack Metric 86.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490075 Height 3.5000 in Height [Metric] 6.9000 cm Item Group 21127 Length 3.6000 in Length [Metric] 3.6000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=356882682&lang=en-us Mounting Type Socket Operating Temperature -40-55 A°C Pickup Voltage 120 V AC Power Rating 2500 VA/280 W Returnable Y Standard 10 GN 11 MS) IN OPERATION EN/IEC 60068-2-27-10 GN 11 MS) NOT OPERATING EN/IEC 60068-2-27,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-4 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,EN/IEC 61810-1-UL 508-CSA C22.2 NO 14,IP40,UL-ROHS-EAC-CSA-REACH Standards CSA C22.2 No 14, REACH, EAC, EN/IEC 61810-1, RoHS Compliant, UL 508 Listed Stock Status NORMALLY STOCKED Sub Brand RUM Substitute Product Catalog Number RUW101MW Type Universal UNSPSC 39122325 UPC 11 78590116684 UPC 12 785901166849 Width 6.9000 in Width [Metric] 3.5000 cm LOCKABLE TEST BUTTON Cylindrical shape pin 4 kV rated impulse withstand voltage 2500 VA/280 W maximum switching capacity 170 mW at 10 mA/17 VAC minimum switching capacity 20 ms at nominal voltage operating and reset time 1700 Ohm at 20 deg C +/-15% average resistance
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RUMC21F7 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | RUMC21F7 |
| Coil | 250 V CONFORMING TO IEC |
| Coil Voltage | 120 VAC |
| Contact Configuration | 2 C/O |
| Contact Form | 2CO/SPDT |
| Contact Material | AgNi |
| Contact Rating | 10 A at 250 VAC/28 VDC |
| Country of Origin | US |
| Currency | USD |
| Enclosure Type | IP40 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 5.29 |
| Gross Volume per Pack Metric | 86.69 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1900 lb |
| Gross Weight per Pack Metric | 86.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490075 |
| Height | 3.5000 in |
| Height [Metric] | 6.9000 cm |
| Item Group | 21127 |
| Length | 3.6000 in |
| Length [Metric] | 3.6000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=356882682&lang=en-us |
| Mounting Type | Socket |
| Operating Temperature | -40-55 A°C |
| Pickup Voltage | 120 V AC |
| Power Rating | 2500 VA/280 W |
| Returnable | Y |
| Standard | 10 GN 11 MS) IN OPERATION EN/IEC 60068-2-27-10 GN 11 MS) NOT OPERATING EN/IEC 60068-2-27,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-4 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,EN/IEC 61810-1-UL 508-CSA C22.2 NO 14,IP40,UL-ROHS-EAC-CSA-REACH |
| Standards | CSA C22.2 No 14, REACH, EAC, EN/IEC 61810-1, RoHS Compliant, UL 508 Listed |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | RUM |
| Substitute Product Catalog Number | RUW101MW |
| Type | Universal |
| UNSPSC | 39122325 |
| UPC 11 | 78590116684 |
| UPC 12 | 785901166849 |
| Width | 6.9000 in |
| Width [Metric] | 3.5000 cm |
| LOCKABLE TEST BUTTON |
| Cylindrical shape pin |
| 4 kV rated impulse withstand voltage |
| 2500 VA/280 W maximum switching capacity |
| 170 mW at 10 mA/17 VAC minimum switching capacity |
| 20 ms at nominal voltage operating and reset time |
| 1700 Ohm at 20 deg C +/-15% average resistance |
