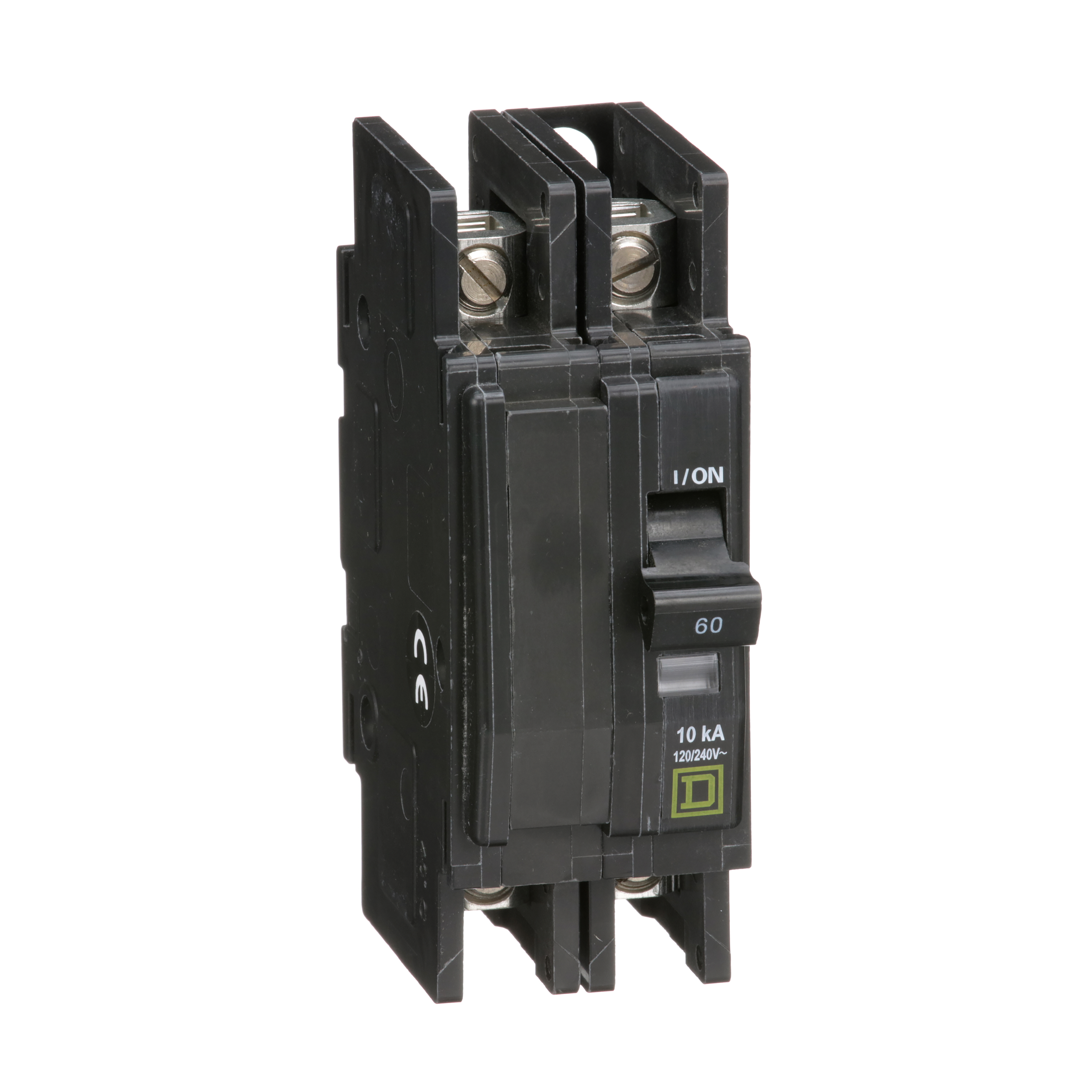

Square D™ QOU260B Type QOU Standard Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
Miniature Circuit Breakers
PDW~6414670
MFG #: QOU260B
Square D™
0.00000
/ ea
Square D™ Miniature Circuit Breaker, Type QOU Standard, 120/240 VAC, 60 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 2 Pole, Line/Load Lug Connection, 14 to 2 AWG Al/Cu Wire, DIN Rail/Surface Mounting, 14 to 140 deg F, 1.5 in W x 2.63 in D x 4.05 in H Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8035899360Den&ext=webp(360 Degree View URL)
- Brochure URL - b77bb42dea8c0f41ae0164c37d96f0dd84aa4cf0.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - d337ead740bd328814ca8628ba2874adc7993dbb.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_81OHVQ9Y62UBTXFJ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_RT6L3OPXC0JQHUVA.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_0DXES25HIVA9R184.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_HP4K71MI60F9GOVW.zip(Tech Drawing URL)
- Applications
- Features
| Commercial HVAC and Wastewater Treatment Applications |
| BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED,SLOTTED BOX LUGS (LINE AND LOAD) |
| Provide a means to manually open a circuit |
| Automatically open a circuit under overload or short circuit conditions |
| Features common tripping of all poles |
| Have a Visi-Trip™ trip indicator |
| Has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
