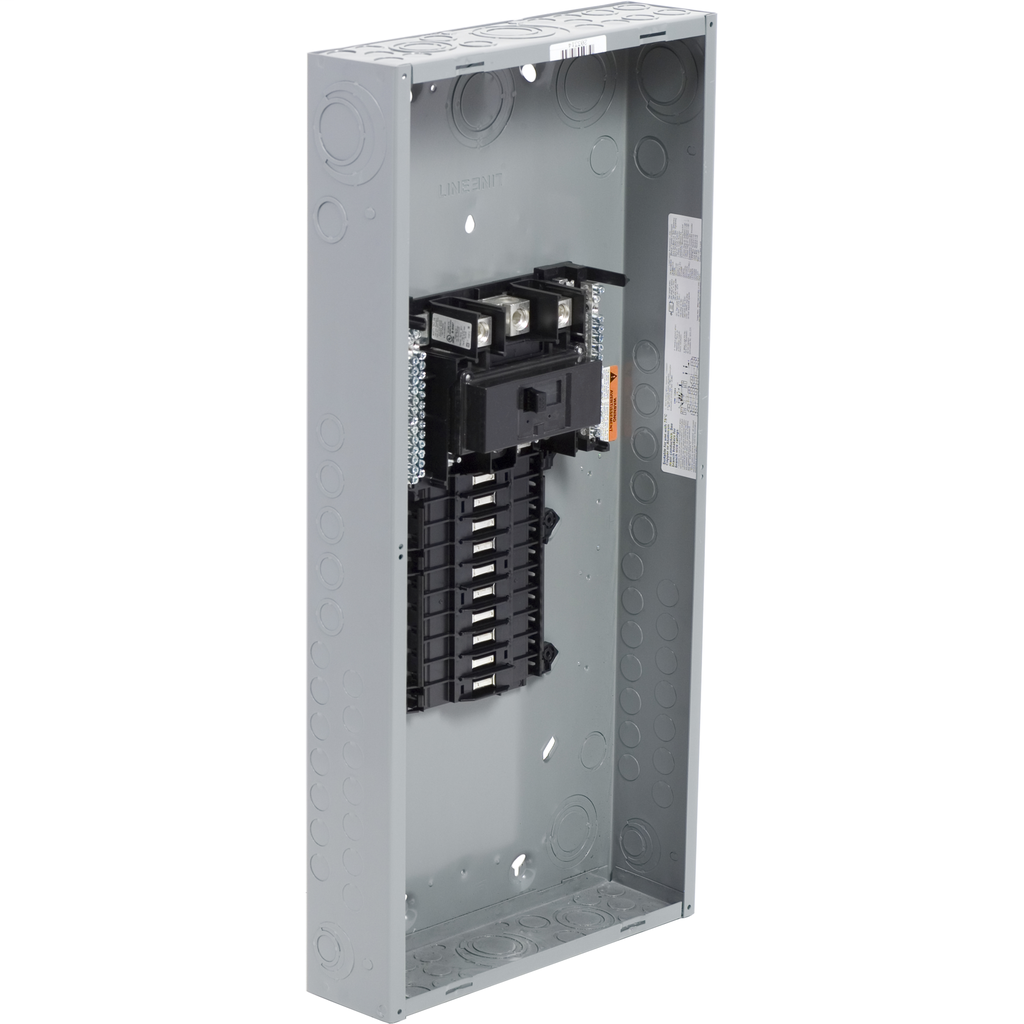

Square D™ QO12040M200 Convertible Load Center, 120/240 VAC, 200 A, 40 Pole, 22 kA Interrupt
Single Phase Main Breaker Load Centers
34758
MFG #: QO12040M200
Square D™
325.23000
/ ea
Square D QO12040M200 LOAD CENTER QO MB 240V 200A 1PH 20SP,#4 to 250 AWG/kcmil (Al/Cu),1 phase,120/240 V AC,120/240 V AC,22 kA,200 A,3-Wire,Convertible Mains (breaker),Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Load Center,NEMA 1,Order separately,QO,UL Listed
- 18 months(Warranty URL)
- Catalog 1 URL - Square_D_QO11224L125G_Catalog.pdf(Catalog 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Line Drawing URL - files?p_File_Id=3545711795&p_File_Name=3007.pdf&p_Reference=3007(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Catalog URL - IDW_DOCUMENT_418351a0c169b39c8b07e0e57bb2dda631f61cac8df986423bf48ea1333409c5.pdf(Catalog URL)
- Tech Bulletin URL - 0bcc9856f5d72ef9ad29f1c87379051bda246bd6.pdf(Tech Bulletin URL)
- Video - https://youtube.com/embed/Iu4hcYgb5sw(Video)
- Tech Drawing URL - 5d21454860ae9ffb8ade8f2e46b5f2f6d67c133b(Tech Drawing URL)
- Features
| MAIN BREAKER,TIN PLATED COPPER BUSBAR |
| Aluminum bus construction on fixed mains panels |
| Tin plated 1-piece copper bus helps prevent corrosion and ensures superior performance |
| Service entrance equipment capable panels |
| Split neutral bars for neat wiring |
| Top or bottom feed by rotating convertible mains panels 180 deg |
| Single captive screw interior mounting on indoor panels to ease removal |
| Straight-in wiring to help minimize service cable installation |
| Side hinge doors on outdoor convertible main panels |
| Baked enamel gray surface finish |
| Multiple ground bar locations to customized the panel to your needs |
| Backed-out screws on neutral, ground a and twin and quad breaker terminals |
| Factory removed main breaker knockout |
| Low profile busbars and insulated shielding improved safety and protection |
| Flexible and convenient main and branch breaker knockouts |
| Spring loaded self-adjusting surface/flush trim reduces installation time |
