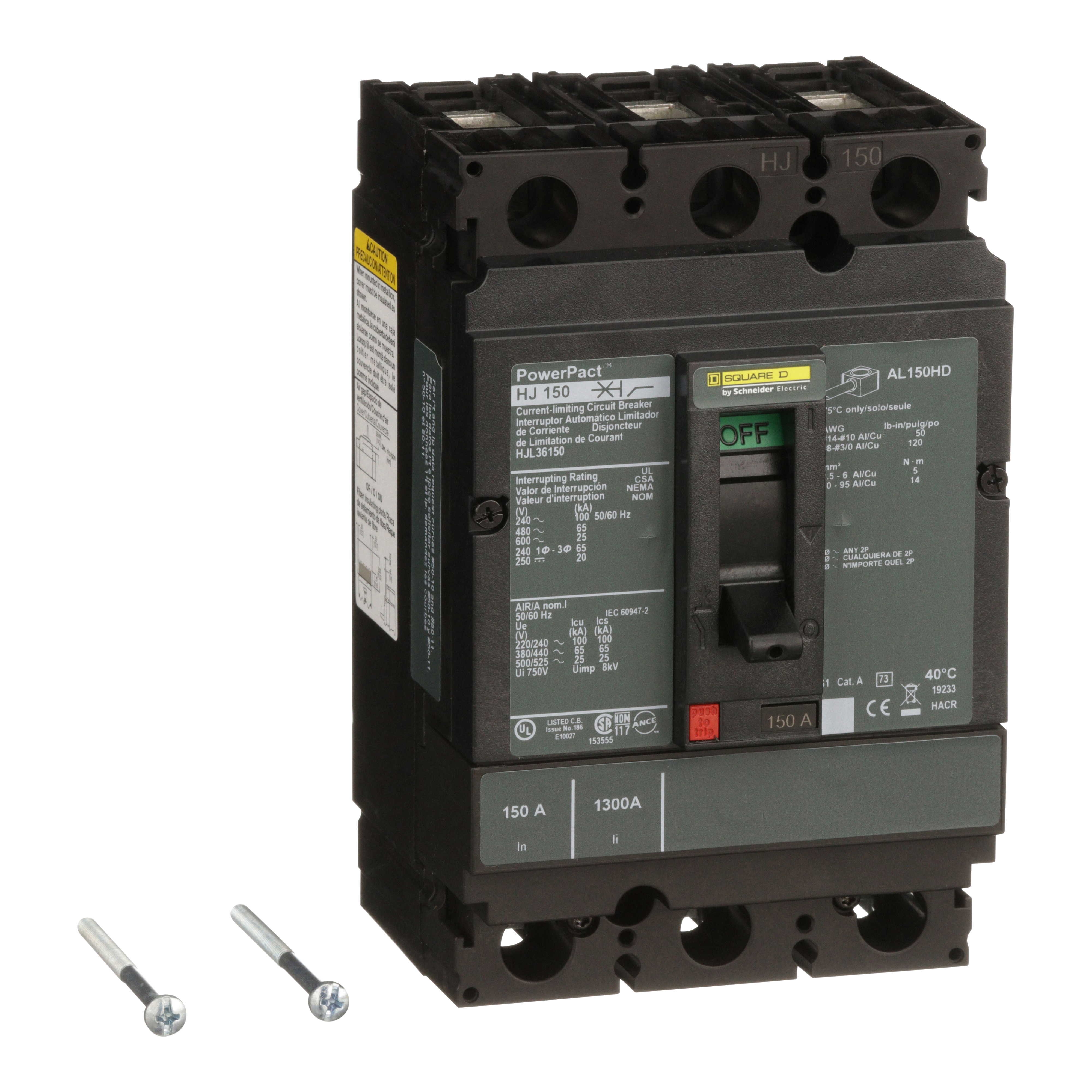

Square D™ PowerPact™ HJL36150 Molded Case Circuit Breaker, 600 VAC, 150 A, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
321336
MFG #: HJL36150
Square D™
4486.60000
/ ea
Square D HJL36150 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 150A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,104 mm,150A,163 mm,3,50/60Hz,600 Vac/250 Vdc,86 mm,H-Frame,Hold 900A - Trip 1700A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
- 360 Degree View URL - index.html?pid=11003&id=8052034360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=HJL36150_2D+Front+View.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_FXH7MA1QBV6YLZGN.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_OHXSF8E4N5AQMWR2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_0STNC5Q3YVKOMP8A.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_6GPZQULHKR9SYWXT.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_O4QH52BCYUSITVJW.pdf(Tech Drawing URL)
- User Manual URL - 11003_X4QGCHKPU1SLW5TD.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/eoDTK_hod_s(Video)
- Video - https://youtube.com/embed/0ifsiqiXvbg(Video)
- Applications
- Features
| Distribution |
| UNIT MOUNT |
| Easy to install, extremely versatile, a wide variety of terminal |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
