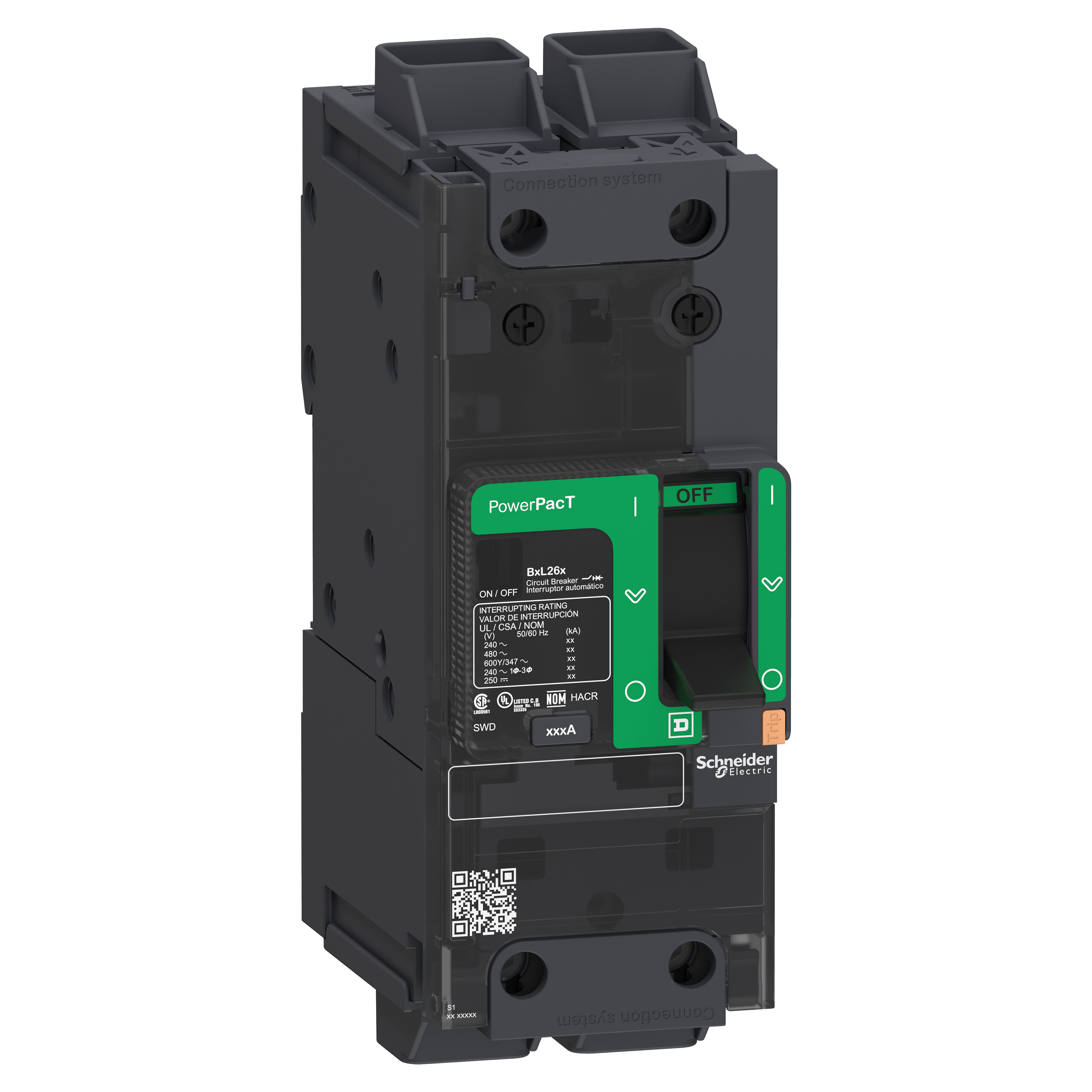

Square D™ PowerPact™ EverLink BJL26050 Molded Case Circuit Breaker, 600Y/347 VAC, 50 A, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ EverLink BJL26050 Molded Case Circuit Breaker, 600Y/347 VAC, 50 A, 2 Poles, Thermal Magnetic Trip
SKU1340441
MFGR #BJL26050
Your Cost: $923.71/ea
List: Square D™ PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 50 A, 50/60 Hz, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600Y/347 VAC Interrupt, B Frame, Thermal Magnetic Trip, 480 to 720 A Trip, 2 Poles, 1-Phase, Toggle Actuator, Line/Load Lug, 14 to 3/0/6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 2.12 in W x 4.01 in D, Gray
Square D™ PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 50 A, 50/60 Hz, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600Y/347 VAC Interrupt, B Frame, Thermal Magnetic Trip, 480 to 720 A Trip, 2 Poles, 1-Phase, Toggle Actuator, Line/Load Lug, 14 to 3/0/6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 2.12 in W x 4.01 in D, Gray
Actuator Toggle Alternate Catalog Number BJL26050 Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number BJL26050 Connection AWG 6...AWG 2/0 FINE STRANDED ALUMINIUM/COPPER- AWG 14...AWG 3/0 RIGID OR STRANDED ALUMINIUM/COPPER,EVERLINK LUG LINE-EVERLINK LUG LOAD Country of Origin US Currency USD EU RoHS Indicator Y Gross Weight Per Pack 1.5000 lb Gross Weight per Pack Metric 907.20 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 8.1000 in Height [Metric] 8.1000 cm Item Group 01132 Length 20.3000 in Length [Metric] 20.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590738&lang=en-us Number Of Poles 2 Operating Temperature -25 to 70 °C Returnable N Standard CSA C22.2 NO 5-EN/IEC 60947-5-1-UL 489-GB 14048.2-NMX J-266-EN/IEC 60947-2-NEMA AB1,IK07 IEC 62262,UL-IEC-CCC-EAC-CSA-NOM,FRONT COVER IP40 IEC 60529 Standards ARRABuy American Act CompliantCSA C22.2 No 5CECCCEACEN/IEC 60947-2EN/IEC 60947-5-1GB 14048.2NOM CertifiedUL 489PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Sub Brand BJ 050,POWERPACT B Type Circuit Breaker UNSPSC 39121601 UPC 11 78590107830 UPC 12 785901078302 Width 14.9000 in Width [Metric] 14.9000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Trip Type THERMAL-MAGNETIC DISTRIBUTION SET OF 1 Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms The PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | BJL26050 |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BJL26050 |
| Connection | AWG 6...AWG 2/0 FINE STRANDED ALUMINIUM/COPPER- AWG 14...AWG 3/0 RIGID OR STRANDED ALUMINIUM/COPPER,EVERLINK LUG LINE-EVERLINK LUG LOAD |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.5000 lb |
| Gross Weight per Pack Metric | 907.20 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 8.1000 in |
| Height [Metric] | 8.1000 cm |
| Item Group | 01132 |
| Length | 20.3000 in |
| Length [Metric] | 20.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590738&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -25 to 70 °C |
| Returnable | N |
| Standard | CSA C22.2 NO 5-EN/IEC 60947-5-1-UL 489-GB 14048.2-NMX J-266-EN/IEC 60947-2-NEMA AB1,IK07 IEC 62262,UL-IEC-CCC-EAC-CSA-NOM,FRONT COVER IP40 IEC 60529 |
| Standards | ARRABuy American Act CompliantCSA C22.2 No 5CECCCEACEN/IEC 60947-2EN/IEC 60947-5-1GB 14048.2NOM CertifiedUL 489PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Sub Brand | BJ 050,POWERPACT B |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590107830 |
| UPC 12 | 785901078302 |
| Width | 14.9000 in |
| Width [Metric] | 14.9000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | THERMAL-MAGNETIC |
| DISTRIBUTION |
| SET OF 1 |
| Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms |
| The PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards |
| B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products |
| PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits |
| The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product |
| Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications |
