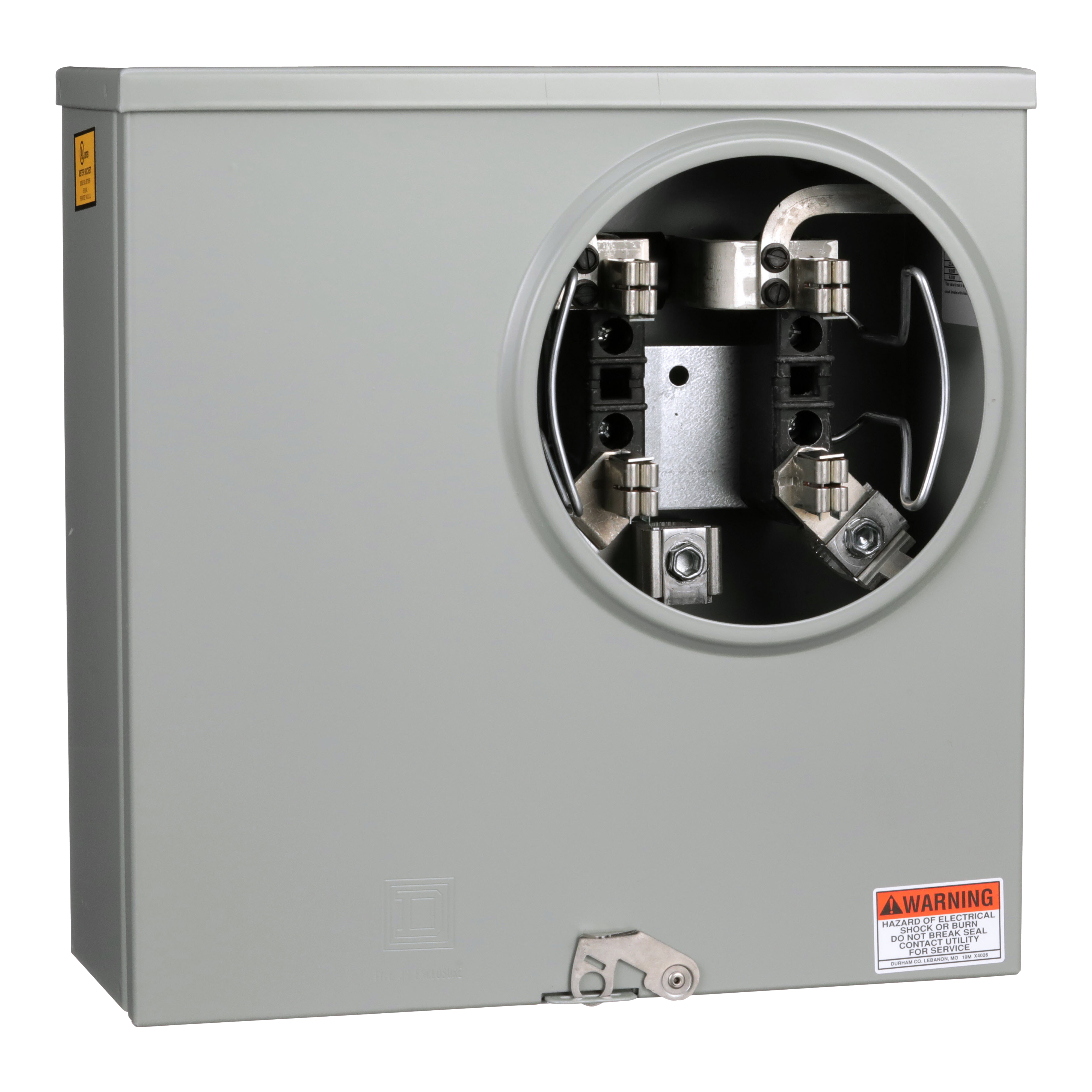

Square D™ Meter-Pak™ UHTRS223A 3-Wire Individual Meter Socket With Horn Bypass, 600 VAC, 200 A, 1 Phase, NEMA 3R/2R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ UHTRS223A 3-Wire Individual Meter Socket With Horn Bypass, 600 VAC, 200 A, 1 Phase, NEMA 3R/2R Enclosure
SKUPDW~6419507
MFGR #UHTRS223A
Your Cost: $333.93/ea
Square D™ Meter-Pak™ Meter Socket, 3-Wire Individual, 600 VAC, 200 A, 1 ph, Underground Feed, 4 Jaws, 1/0 AWG to 350 kcmil, 14 to 2 AWG Al/Cu Wire, Solid Top Hub, Ringless Cover, Hex Lug Terminal, Bolt-On/Wall Mounting, NEMA 3R/2R Enclosure, 13 x 13 in Dimensions
Square D™ Meter-Pak™ Meter Socket, 3-Wire Individual, 600 VAC, 200 A, 1 ph, Underground Feed, 4 Jaws, 1/0 AWG to 350 kcmil, 14 to 2 AWG Al/Cu Wire, Solid Top Hub, Ringless Cover, Hex Lug Terminal, Bolt-On/Wall Mounting, NEMA 3R/2R Enclosure, 13 x 13 in Dimensions
Alternate Catalog Number UHTRS223A ARRA Compliant N Buy American Compliant N Bypass Type Horn Bypass Cable Entry UG Catalog Number UHTRS223A Country of Origin US Cover Type Ringless Currency USD Depth 4.94 in Dimensions 13 x 13 Enclosure Steel;2R EU RoHS Indicator Y Feed Type Underground Gross Volume Per Pack 1109.76 Gross Volume per Pack Metric 18185.64 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0646 lb Gross Weight per Pack Metric 6.46 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 15.2400 in Height [Metric] 15.2400 cm Hub Opening Solid top Hub Type Solid Top Item Group 00039 Length 34.5440 in Length [Metric] 34.5440 cm Line Side Wire Range AWG 1/0...350 kcmil 1 aluminium/copper)line;AWG 14...AWG 2 1 aluminium/copper)service ground Mounting Surface Mounting Type Bolt-On/Wall Number of Jaws 4 Returnable Y Size 13.00 in Standard UL Listed Substitute Product Catalog Number ACPL Terminal Type Hex Lug Type 3-Wire Individual UNSPSC 39121102 UPC 11 78590191168 UPC 12 785901911685 Warranty Description Contractual Warranty:18 months Width 34.5440 in Width [Metric] 34.5440 cm Wire Size 1/0 AWG to 350 kcmil, 14 to 2 AWG Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 Enclosure Type NEMA 3R/2R Phase 1 Voltage Rating 600 VAC HORN BYPASS,RINGLESS Units supplied with bonded neutral Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate Units supplied with solid top are for underground feed only 10 kA short circuit current rating (or higher with utility approval)
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | UHTRS223A |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | Horn Bypass |
| Cable Entry | UG |
| Catalog Number | UHTRS223A |
| Country of Origin | US |
| Cover Type | Ringless |
| Currency | USD |
| Depth | 4.94 in |
| Dimensions | 13 x 13 |
| Enclosure | Steel;2R |
| EU RoHS Indicator | Y |
| Feed Type | Underground |
| Gross Volume Per Pack | 1109.76 |
| Gross Volume per Pack Metric | 18185.64 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0646 lb |
| Gross Weight per Pack Metric | 6.46 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 15.2400 in |
| Height [Metric] | 15.2400 cm |
| Hub Opening | Solid top |
| Hub Type | Solid Top |
| Item Group | 00039 |
| Length | 34.5440 in |
| Length [Metric] | 34.5440 cm |
| Line Side Wire Range | AWG 1/0...350 kcmil 1 aluminium/copper)line;AWG 14...AWG 2 1 aluminium/copper)service ground |
| Mounting | Surface |
| Mounting Type | Bolt-On/Wall |
| Number of Jaws | 4 |
| Returnable | Y |
| Size | 13.00 in |
| Standard | UL Listed |
| Substitute Product Catalog Number | ACPL |
| Terminal Type | Hex Lug |
| Type | 3-Wire Individual |
| UNSPSC | 39121102 |
| UPC 11 | 78590191168 |
| UPC 12 | 785901911685 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 34.5440 in |
| Width [Metric] | 34.5440 cm |
| Wire Size | 1/0 AWG to 350 kcmil, 14 to 2 AWG Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 |
| Enclosure Type | NEMA 3R/2R |
| Phase | 1 |
| Voltage Rating | 600 VAC |
| HORN BYPASS,RINGLESS |
| Units supplied with bonded neutral |
| Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate |
| Units supplied with solid top are for underground feed only |
| 10 kA short circuit current rating (or higher with utility approval) |
