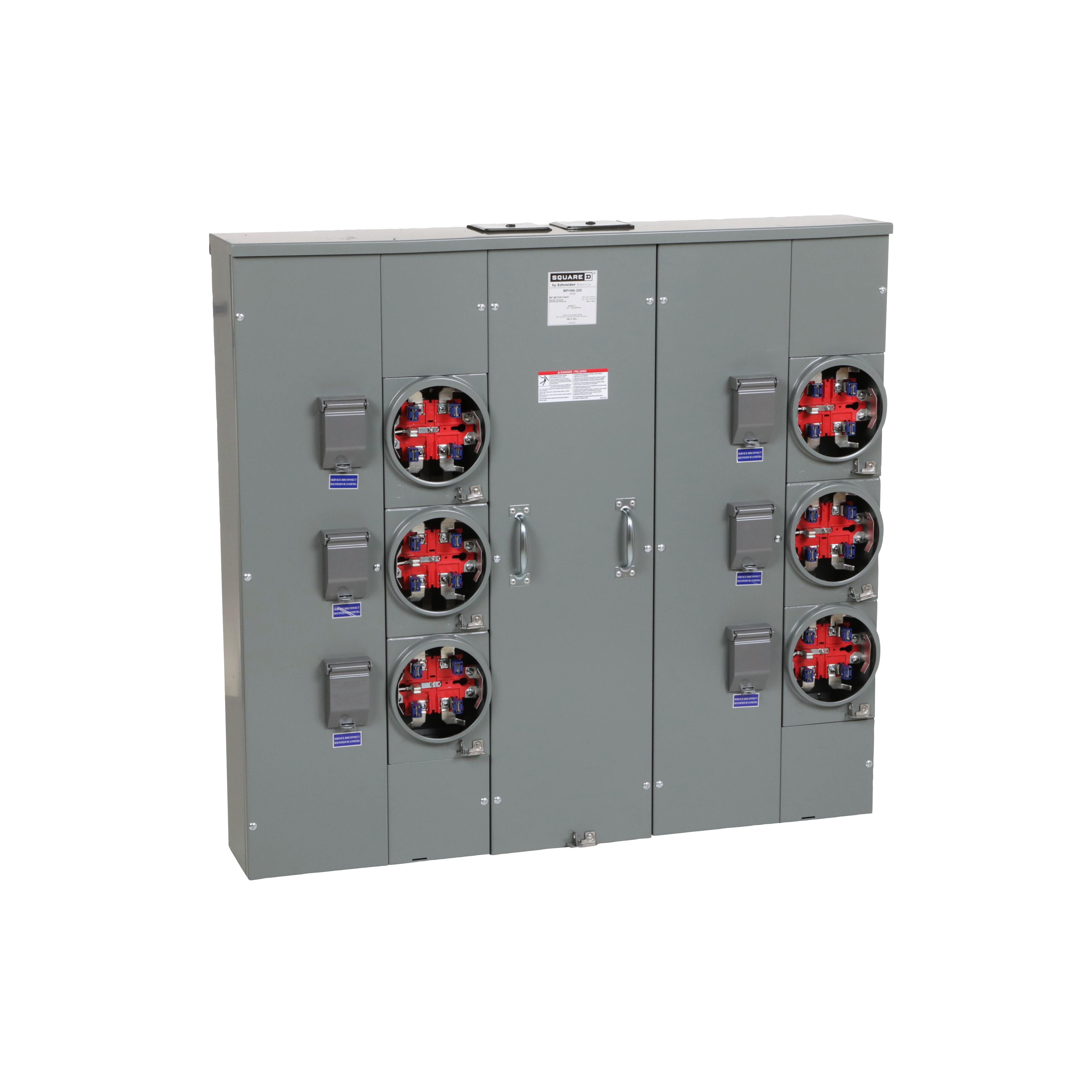

Square D™ Meter-Pak™ MPH86200 6-Position 3-Wire Meter Center With Horn Bypass, 240 VAC, 200 A, 1 ph Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
1224124
MFG #: MPH86200
Square D™
2382.68000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8034195360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 92be7591bdab6173a84c2776dfd517310c7e97a8.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_L807O3EKQMDBTYUP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_O9TMS2831LAUW4XN.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_8143MVYO90ARUJ2P.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_ICSH3L8KJONY0WGB.dwg(Tech Drawing URL)
- Applications
- Features
| For service equipment |
| Main Lugs;Aluminium: busbar |
| Aluminum busbar |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| Meter socket jaws, constructed of tin plated copper are spring reinforced on MP devices |
| Stainless steel cover hasps and latches meet tough coastal utility sealing requirements |
| Barrel lock provisions on all ringless devices |
| 200 a maximum tenant circuit breaker amperage, 800 A bus ampacity |
