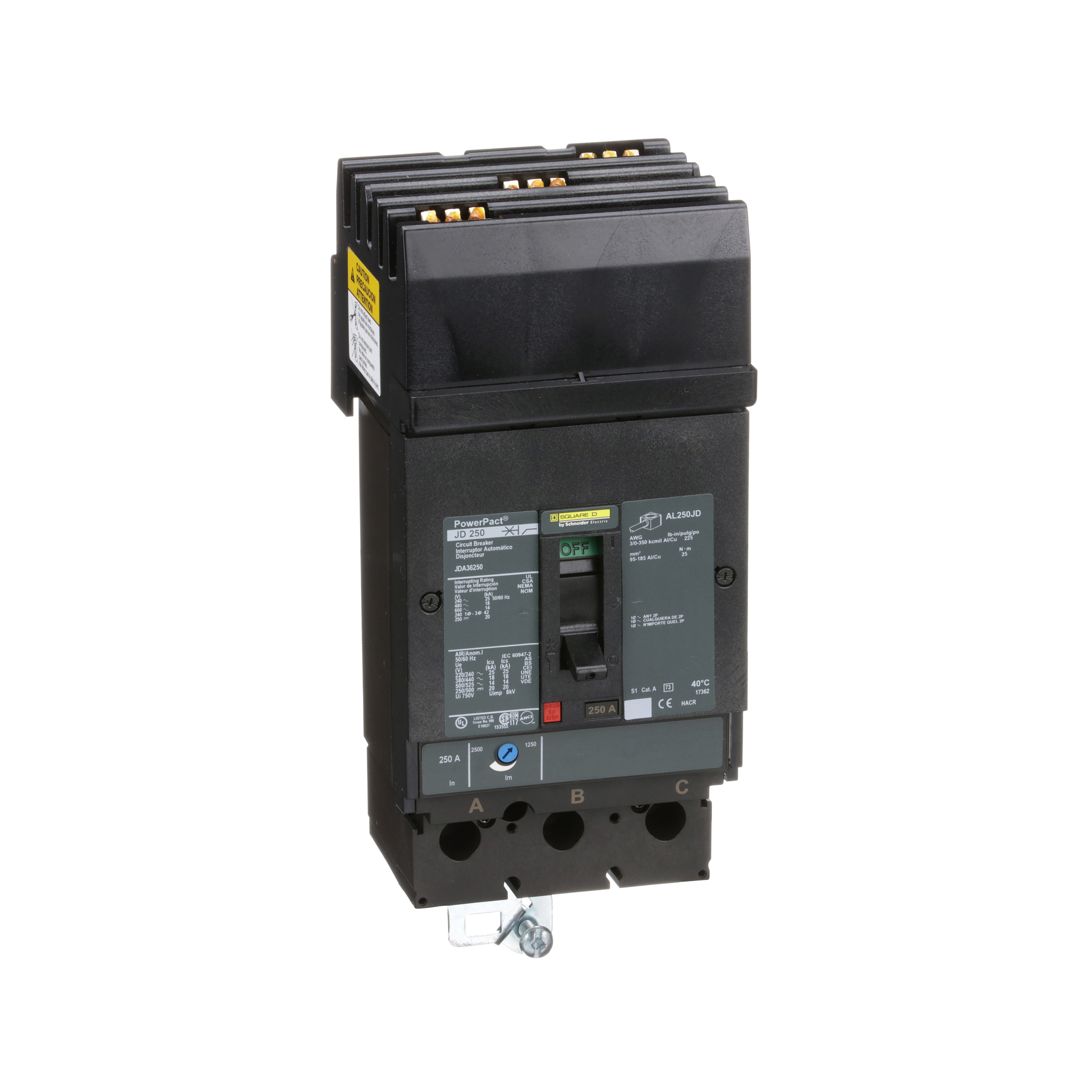

Square D™ I-Line™ PowerPact™ JDA36250 Type JDA Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 3 Poles
Molded Case Circuit Breakers
267262
MFG #: JDA36250
Square D™
2508.61000
/ ea
Square D JDA36250 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 250A,-13F and 158F (-25 C and +70 C),250A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,J-Frame,Low 1250A - High 2500A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - index.html?pid=11003&id=8049481360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=JDA36250(3D Rendering URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=JDA36250_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions URL - Square_D_JDA36250_Installation_Sheet.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_CKU5AF7YLZ9SWVGB.pdf(Tech Drawing URL)
- Service Manual URL - 11003_Z7TW5GLP40EVI8H2.pdf(Service Manual URL)
- User Manual URL - 11003_2BJ69C04G7FEHRNX.pdf(User Manual URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0600DB1604.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/wCXL5fqf9PE(Video)
- Spec Sheet URL - 11003_KMB7VEC2HG56TWLI.pdf(Spec Sheet URL)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| 25 kA at 240 VAC, 18 kA at 480 VAC interrupt rating |
| For reverse fed applications |
| 80% rated interrupting rating |
| Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact® H and J-frame circuit breakers |
| Common accessories across the range of PowerPact® molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
| Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| For I-Line® panelboards and switchboards |
| For I-Line panelboards and switchboards |
