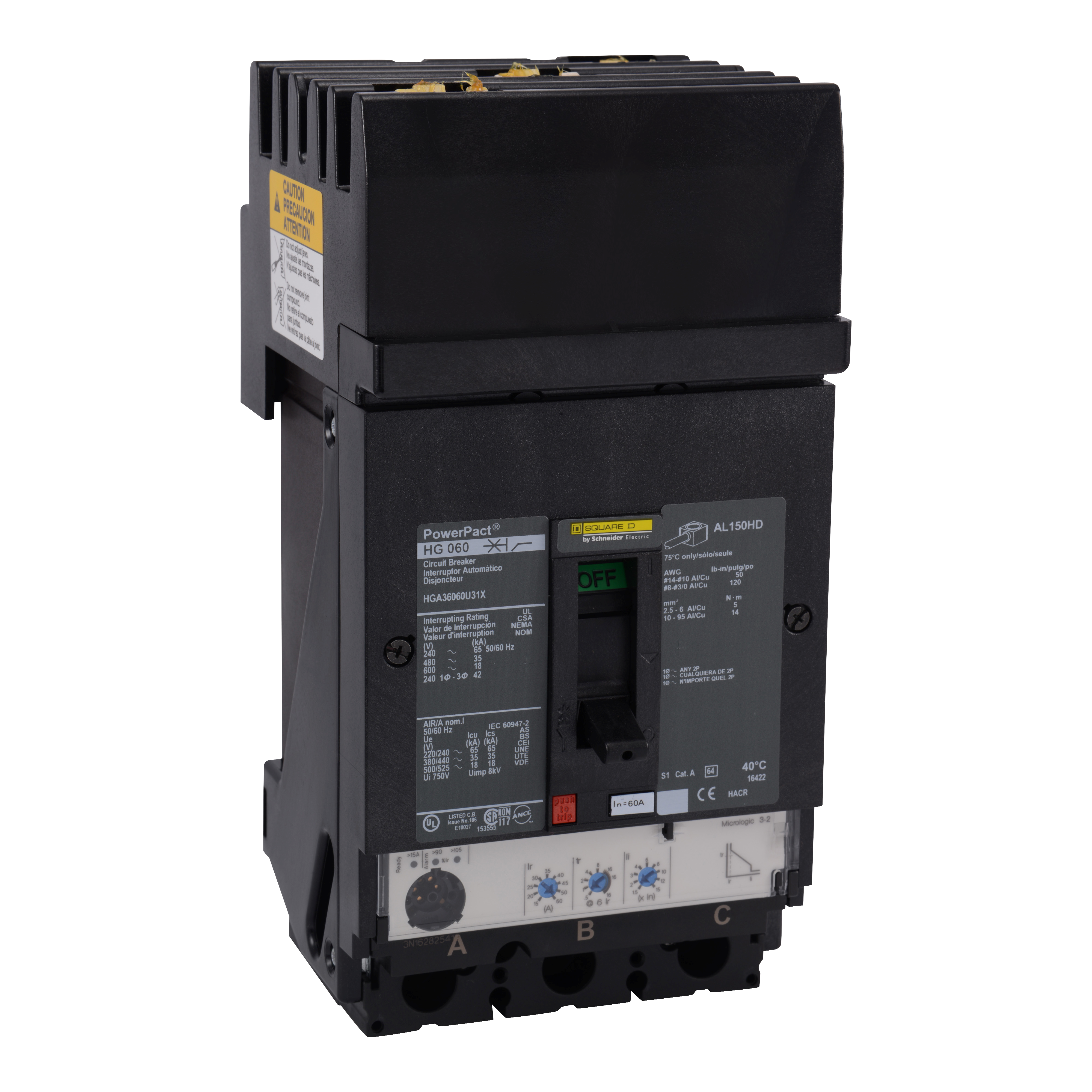

Square D™ I-Line™ PowerPact™ HGA36060U31X Molded Case Circuit Breaker, 600 VAC, 60 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ HGA36060U31X Molded Case Circuit Breaker, 600 VAC, 60 A, 3 Poles
SKUPDW~11720265
MFGR #HGA36060U31X
Price Not Available
Schneider Electric HGA36060U31X MOLDED CASE CIRCUIT BREAKER 600V 60A,60 A,60 A,600 V AC,600 V AC,65 kA 240 V AC-35 kA 480 V AC-18 kA 600 V AC,G,circuit breaker,electronic standard Micrologic 3.2 LI,plug-in
Schneider Electric HGA36060U31X MOLDED CASE CIRCUIT BREAKER 600V 60A,60 A,60 A,600 V AC,600 V AC,65 kA 240 V AC-35 kA 480 V AC-18 kA 600 V AC,G,circuit breaker,electronic standard Micrologic 3.2 LI,plug-in
Actuator Toggle Alternate Catalog Number HGA36060U31X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HGA36060U31X Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0290 lb Gross Weight per Pack Metric 2.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.6530 in Height [Metric] 13.6530 cm Item Group 01104 Length 37.1480 in Length [Metric] 37.1480 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980140&lang=en-us Mounting Type Surface Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable N Standard UL LISTED-CCC-CSA-IEC-CE Sub Brand PowerPact H Substitute Product Catalog Number S29370 Temperature Rating 104 °F Trip Range 800 to 1450 A Type Type HGA UNSPSC 39121616 UPC 11 78590140413 UPC 12 785901404132 Warranty Description Contractual Warranty:18 months Width 20.6380 in Width [Metric] 20.6380 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC Trip Type Electronic LI/Thermal Magnetic Voltage Rating 600 VAC Distribution I-LINE Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | HGA36060U31X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HGA36060U31X |
| Connection | AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0290 lb |
| Gross Weight per Pack Metric | 2.90 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.6530 in |
| Height [Metric] | 13.6530 cm |
| Item Group | 01104 |
| Length | 37.1480 in |
| Length [Metric] | 37.1480 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980140&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | N |
| Standard | UL LISTED-CCC-CSA-IEC-CE |
| Sub Brand | PowerPact H |
| Substitute Product Catalog Number | S29370 |
| Temperature Rating | 104 °F |
| Trip Range | 800 to 1450 A |
| Type | Type HGA |
| UNSPSC | 39121616 |
| UPC 11 | 78590140413 |
| UPC 12 | 785901404132 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.6380 in |
| Width [Metric] | 20.6380 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC |
| Trip Type | Electronic LI/Thermal Magnetic |
| Voltage Rating | 600 VAC |
| Distribution |
| I-LINE |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating |
