Square D™

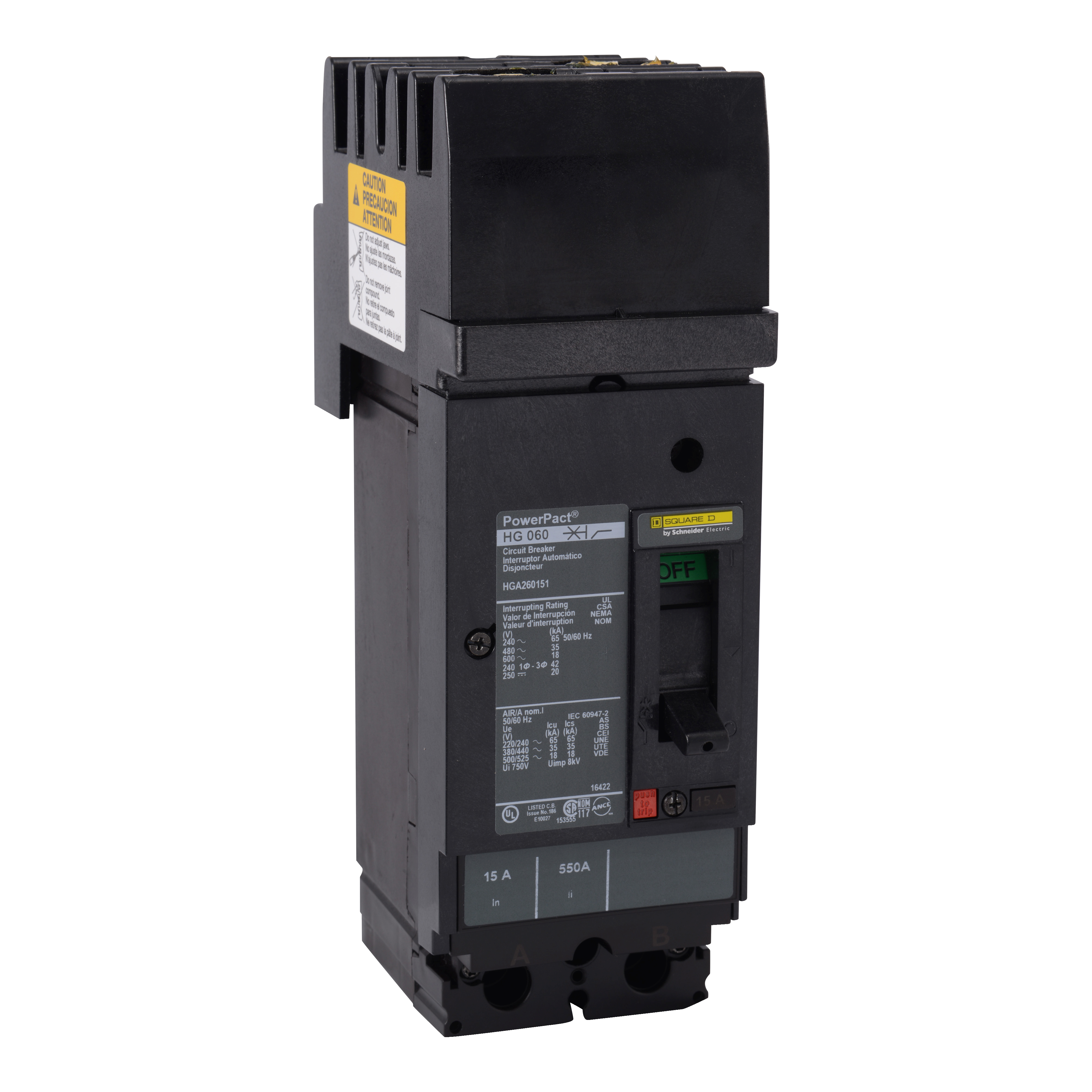

Square D™ I-Line™ PowerPact™ HGA260402 Type HGA Molded Case Circuit Breaker, 600 VAC/250 to 500 VDC, 40 A, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ I-Line™ PowerPact™ HGA260402 Type HGA Molded Case Circuit Breaker, 600 VAC/250 to 500 VDC, 40 A, 2 Poles
SKU1302476
MFGR #HGA260402
Your Cost: $1,279.16/ea
List: The PowerPact™ H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic™ electronic trip units only. H and J-frame circuit breakers with thermal-magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole. The amperage ratings of the thermal trip elements are calibrated at 104 deg F free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code®, standard circuit breakers may only be applied continuously at up to 80% of their rating. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194 deg F rated wire.
The PowerPact™ H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic™ electronic trip units only. H and J-frame circuit breakers with thermal-magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole. The amperage ratings of the thermal trip elements are calibrated at 104 deg F free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code®, standard circuit breakers may only be applied continuously at up to 80% of their rating. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194 deg F rated wire.
Alternate Catalog Number HGA260402 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HGA260402 Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD Connection Type A-Line/Line/Load Lugs Country of Origin MX Currency USD Dimensions 9.73 in H x 2.94 in W x 4.8 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Weight Per Pack 4.0600 lb Gross Weight per Pack Metric 1.84 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Hazard Class N Height 9.8430 in Height [Metric] 9.8430 cm Item Group 01117 Length 37.1480 in Length [Metric] 37.1480 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422231&lang=en-us Mounting Type Plug-In/Unit Number Of Poles 2 Operating Temperature 40 °C Phase 1 pH Returnable N Standard CE-UL LISTED-CSA-IEC Sub Brand POWERPACT Temperature Rating 104 °F Trip Range 400 to 850 A Type Type HGA UNSPSC 39121601 UPC 11 78590153961 UPC 12 785901539612 Warranty Description Contractual Warranty:18 months Width 20.6380 in Width [Metric] 20.6380 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250 VDC/500 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 to 500 VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency AC-phase connection 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC, 20 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HGA260402 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HGA260402 |
| Connection | AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | A-Line/Line/Load Lugs |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 9.73 in H x 2.94 in W x 4.8 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 4.0600 lb |
| Gross Weight per Pack Metric | 1.84 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Hazard Class | N |
| Height | 9.8430 in |
| Height [Metric] | 9.8430 cm |
| Item Group | 01117 |
| Length | 37.1480 in |
| Length [Metric] | 37.1480 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422231&lang=en-us |
| Mounting Type | Plug-In/Unit |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | N |
| Standard | CE-UL LISTED-CSA-IEC |
| Sub Brand | POWERPACT |
| Temperature Rating | 104 °F |
| Trip Range | 400 to 850 A |
| Type | Type HGA |
| UNSPSC | 39121601 |
| UPC 11 | 78590153961 |
| UPC 12 | 785901539612 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.6380 in |
| Width [Metric] | 20.6380 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250 VDC/500 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 to 500 VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
| AC-phase connection |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC, 20 kA at 250 VDC interrupt rating |
