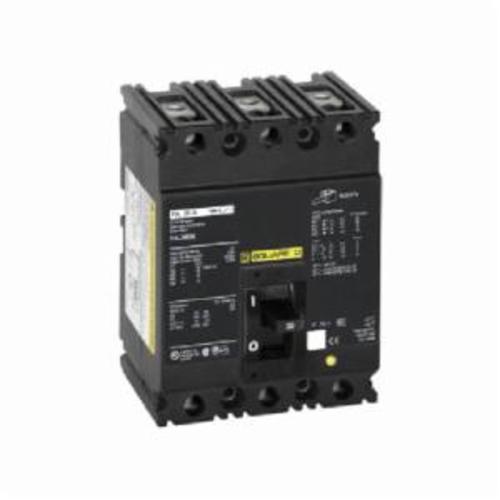

Square D™ I-Line™ FAL36100 Type FAL Molded Case Circuit Breaker, 600 VAC/250 VDC, 100 A, 14 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
33298
MFG #: FAL36100
Square D™
1808.07000
/ ea
Square D FAL36100 MOLDED CASE CIRCUIT BREAKER 600V 100A,100 A,50/60 Hz,600 V AC, 250 V DC,F,Hold 900 A, Trip 1700 A,Molded Case Circuit Breaker,Thermal Magnetic,UL listed, CSA, IEC,standard
- Features
| UNIT MOUNT |
| Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions |
| Thermal magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection |
| Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 10 kA at 250 VDC, 14 kA at 600 VAC interrupt rating |
| Used on class 650/651 I-Line™ panelboard/switchboard |
