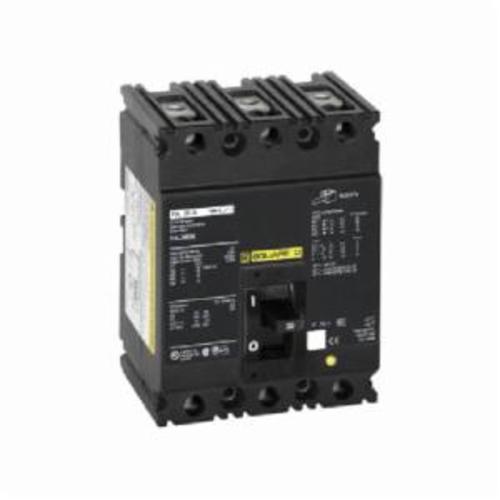

Square D™ I-Line™ FAL34020 Type FAL Molded Case Circuit Breaker, 480 VAC/250 VDC, 20 A, 18 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
33282
MFG #: FAL34020
Square D™
1708.82000
/ ea
Square D FAL34020 MOLDED CASE CIRCUIT BREAKER 480V 20A,20 A,480 V AC,50/60 Hz,F-frame,Molded Case Circuit Breaker,Thermal Magnetic,UL, CSA
- Catalog URL - Square_D_FA24020AB_Catalog.pdf(Catalog URL)
- Full Eng Drawing URL - Square_D_FAB14020A_Technical_Drawing.pdf(Full Eng Drawing URL)
- http://www.schneider-electric.us/(Seller Home Page URL)
- Spec Sheet URL - FAL34020(Spec Sheet URL)
- Tech Drawing URL - FA_FC_FH_3P_100A_OUTLINE_001(Tech Drawing URL)
- Features
| UNIT MOUNT |
| Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions |
| Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide overcurrent protection |
| Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 10 kA at 250 VDC, 480 VAC interrupt rating |
| 100 A frame |
| Used on class 650/651 I-Line™ panelboard/switchboard |
| Standard interrupting, individually mounted |
| Compact and easy to install |
| With non-interchangeable trip unit |
| Cu/Al Wire |
