Square D™

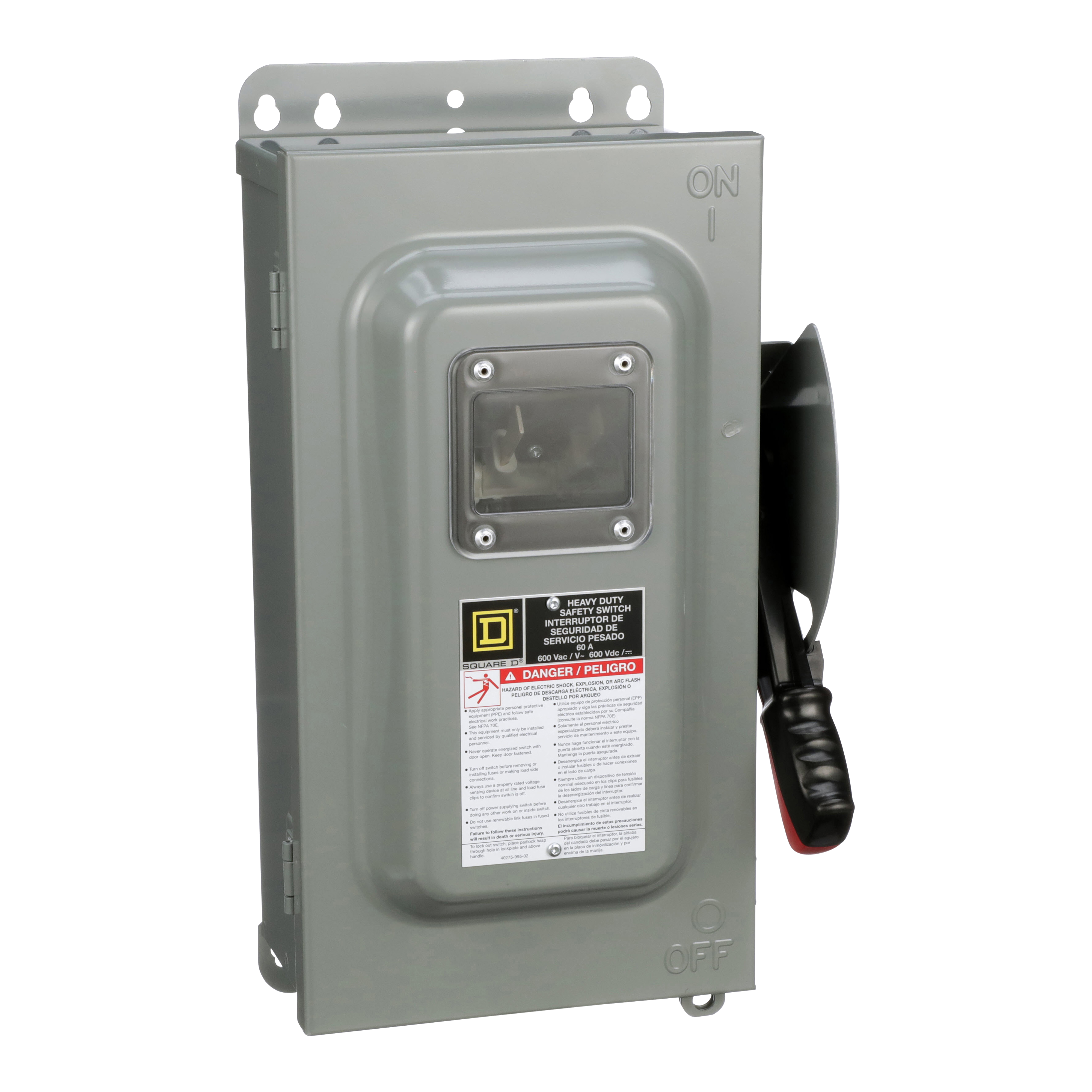

Square D™ HU362AWKVW Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC/VDC, 60 A, 30 hp, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ HU362AWKVW Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC/VDC, 60 A, 30 hp, 3 Poles
SKU324806
MFGR #HU362AWKVW
Your Cost: $718.79/ea
List: Square D HU362AWKVW SW UNFUSED HD 60A 3P NEMA12/VIEW WINDOW,600V,60A,Galvannealed Steel,Lugs,NEMA 3R/12,Non-Fusible,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
Square D HU362AWKVW SW UNFUSED HD 60A 3P NEMA12/VIEW WINDOW,600V,60A,Galvannealed Steel,Lugs,NEMA 3R/12,Non-Fusible,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
Actuator Type Handle Alternate Catalog Number HU362AWKVW Application Heavy application ARRA Compliant N Buy American Compliant N Catalog Number HU362AWKVW Color Gray Connection LUGS Contact Configuration Without Country of Origin US Currency USD Dimensions 16-1/2 in H x 10-1/2 in W x 7 in D Enclosure NEMA 3R/12 Enclosure Type NEMA 12 Environmental Conditions RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed/Painted Gross Volume Per Pack 1589.00 Gross Volume per Pack Metric 26038.98 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 17.4600 lb Gross Weight per Pack Metric 7.92 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 19.6850 in Height [Metric] 50.0380 cm Item Group 00117 Length 11.0236 in Length [Metric] 27.6860 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365313&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Phase 1/2/3 Returnable N Series F6 Short Circuit Current Rating 200 kA Size 10.5 IN,16.5 IN,7 IN in Standard UL listed file E2875 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865CUL 98 File No. E2875eccn: EAR99 Substitute Product Catalog Number EIK1 Temperature Rating -22 to 104 °F Terminal Type Lug Type Dust-Tight Driptight Iceproof Non-Fusible Rainproof Sleetproof UNSPSC 39122218 UPC 11 78590120887 UPC 12 785901208877 Warranty Description Contractual Warranty:18 months Width 7.4803 in Width [Metric] 18.7960 cm Wire Type AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Contact Form TPST Horsepower 30 hp, 60 hp Voltage Rating 600 VAC//VDC Heavy application LUGS Visible blades for positive indication that switch is "OFF" Quick make, quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Without knockouts Optional viewing window allows visual verification of blade position without opening door 30 hp 1-phase, 60 hp 3-phase at 600 VAC, 30 hp at 600 VDC power rating Disconnect switch for rain proof, sleet/ice proof and dusttight (indoor/outdoor) environment conditions Without knockouts
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | HU362AWKVW |
| Application | Heavy application |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU362AWKVW |
| Color | Gray |
| Connection | LUGS |
| Contact Configuration | Without |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 16-1/2 in H x 10-1/2 in W x 7 in D |
| Enclosure | NEMA 3R/12 |
| Enclosure Type | NEMA 12 |
| Environmental Conditions | RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed/Painted |
| Gross Volume Per Pack | 1589.00 |
| Gross Volume per Pack Metric | 26038.98 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 17.4600 lb |
| Gross Weight per Pack Metric | 7.92 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 19.6850 in |
| Height [Metric] | 50.0380 cm |
| Item Group | 00117 |
| Length | 11.0236 in |
| Length [Metric] | 27.6860 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365313&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Phase | 1/2/3 |
| Returnable | N |
| Series | F6 |
| Short Circuit Current Rating | 200 kA |
| Size | 10.5 IN,16.5 IN,7 IN in |
| Standard | UL listed file E2875 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865CUL 98 File No. E2875eccn: EAR99 |
| Substitute Product Catalog Number | EIK1 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Dust-Tight Driptight Iceproof Non-Fusible Rainproof Sleetproof |
| UNSPSC | 39122218 |
| UPC 11 | 78590120887 |
| UPC 12 | 785901208877 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.4803 in |
| Width [Metric] | 18.7960 cm |
| Wire Type | AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Contact Form | TPST |
| Horsepower | 30 hp, 60 hp |
| Voltage Rating | 600 VAC//VDC |
| Heavy application |
| LUGS |
| Visible blades for positive indication that switch is "OFF" |
| Quick make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Without knockouts |
| Optional viewing window allows visual verification of blade position without opening door |
| 30 hp 1-phase, 60 hp 3-phase at 600 VAC, 30 hp at 600 VDC power rating |
| Disconnect switch for rain proof, sleet/ice proof and dusttight (indoor/outdoor) environment conditions |
| Without knockouts |
