Square D™

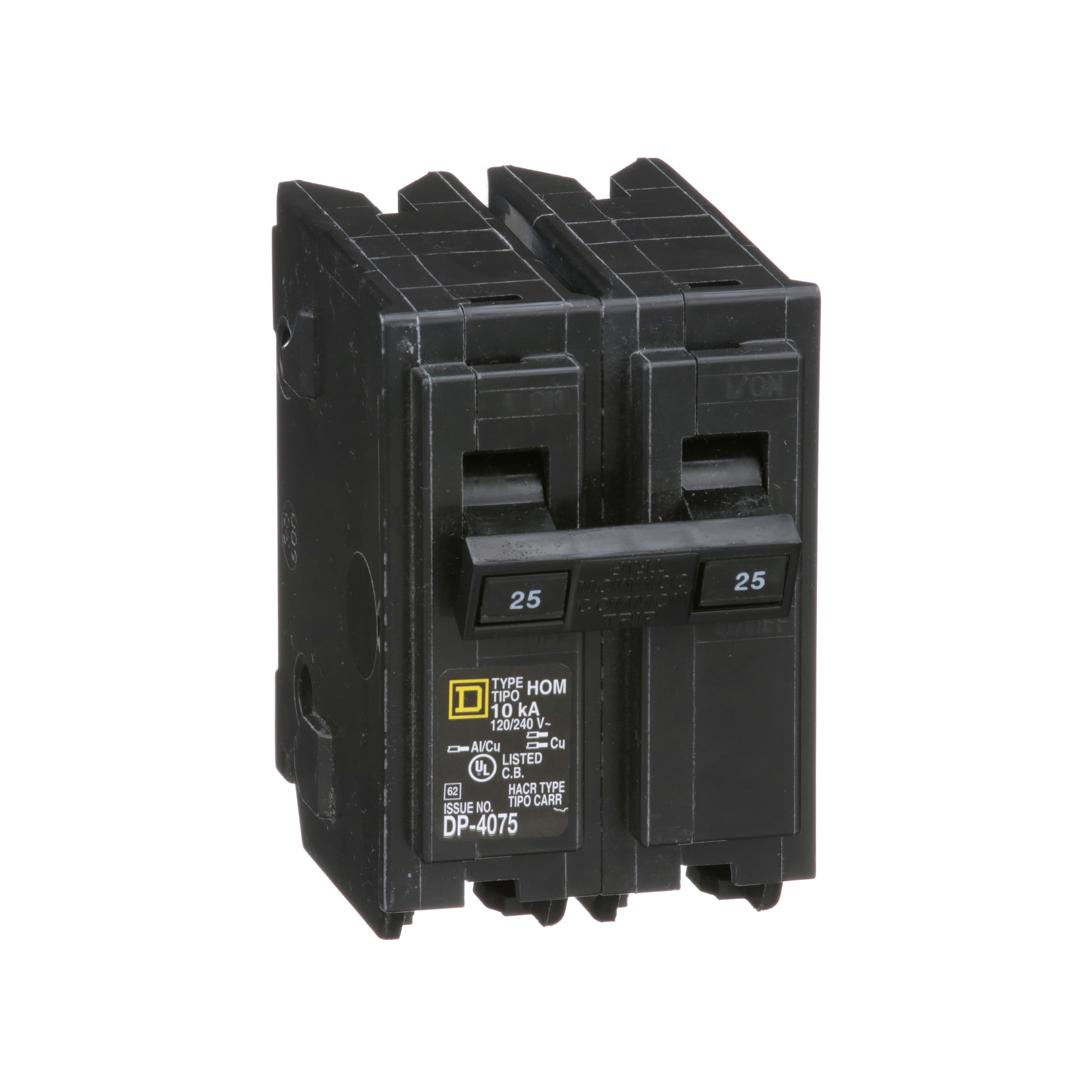

Square D™ HOM225 Type HOM Standard Miniature Circuit Breaker, 120/240 VAC, 25 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ HOM225 Type HOM Standard Miniature Circuit Breaker, 120/240 VAC, 25 A, 10 kA Interrupt, 2 Poles
SKU31916
MFGR #HOM225
Your Cost: $14.67/ea
List: Square D HOM225 MINIATURE CIRCUIT BREAKER 120/240V 25A,10kA,120/240VAC,25A,HomeLine,Miniature Circuit Breaker,Provides overload and short circuit protection,Screw #14-8 AWG(Al/Cu),UL Listed - CSA Certified
Square D HOM225 MINIATURE CIRCUIT BREAKER 120/240V 25A,10kA,120/240VAC,25A,HomeLine,Miniature Circuit Breaker,Provides overload and short circuit protection,Screw #14-8 AWG(Al/Cu),UL Listed - CSA Certified
Alternate Catalog Number HOM225 Amperage Rating 25 A Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number HOM225 Connection SCREW #14-8 AWG(AL/CU) Connection Type Screw Country of Origin MX Currency USD Depth 2.98 in Dimensions 2.98 in L x 2 in W x 3.13 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 18.60 Gross Volume per Pack Metric 304.80 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.6750 lb Gross Weight per Pack Metric 299.38 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.6200 in Height [Metric] 7.6200 cm Interrupt Rating 10 kA Item Group 00046 Length 7.8700 in Length [Metric] 7.8700 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398089&lang=en-us Mounting Type Plug-On Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards UL Listed, HACR Rated Stock Status NORMALLY STOCKED Sub Brand HOMELINE Substitute Product Catalog Number HOM2HBD Temperature Rating 104 °F Trip Type Instantaneous/Long Time/Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590106548 UPC 12 785901065487 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:Lifetime Width 5.0800 in Width [Metric] 5.0800 cm Wire Size 14 to 8 AWG PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION STANDARD
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HOM225 |
| Amperage Rating | 25 A |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | HOM225 |
| Connection | SCREW #14-8 AWG(AL/CU) |
| Connection Type | Screw |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.98 in |
| Dimensions | 2.98 in L x 2 in W x 3.13 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 18.60 |
| Gross Volume per Pack Metric | 304.80 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.6750 lb |
| Gross Weight per Pack Metric | 299.38 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.6200 in |
| Height [Metric] | 7.6200 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00046 |
| Length | 7.8700 in |
| Length [Metric] | 7.8700 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398089&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | UL Listed, HACR Rated |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | HOMELINE |
| Substitute Product Catalog Number | HOM2HBD |
| Temperature Rating | 104 °F |
| Trip Type | Instantaneous/Long Time/Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590106548 |
| UPC 12 | 785901065487 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:Lifetime |
| Width | 5.0800 in |
| Width [Metric] | 5.0800 cm |
| Wire Size | 14 to 8 AWG |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| STANDARD |
