Square D™

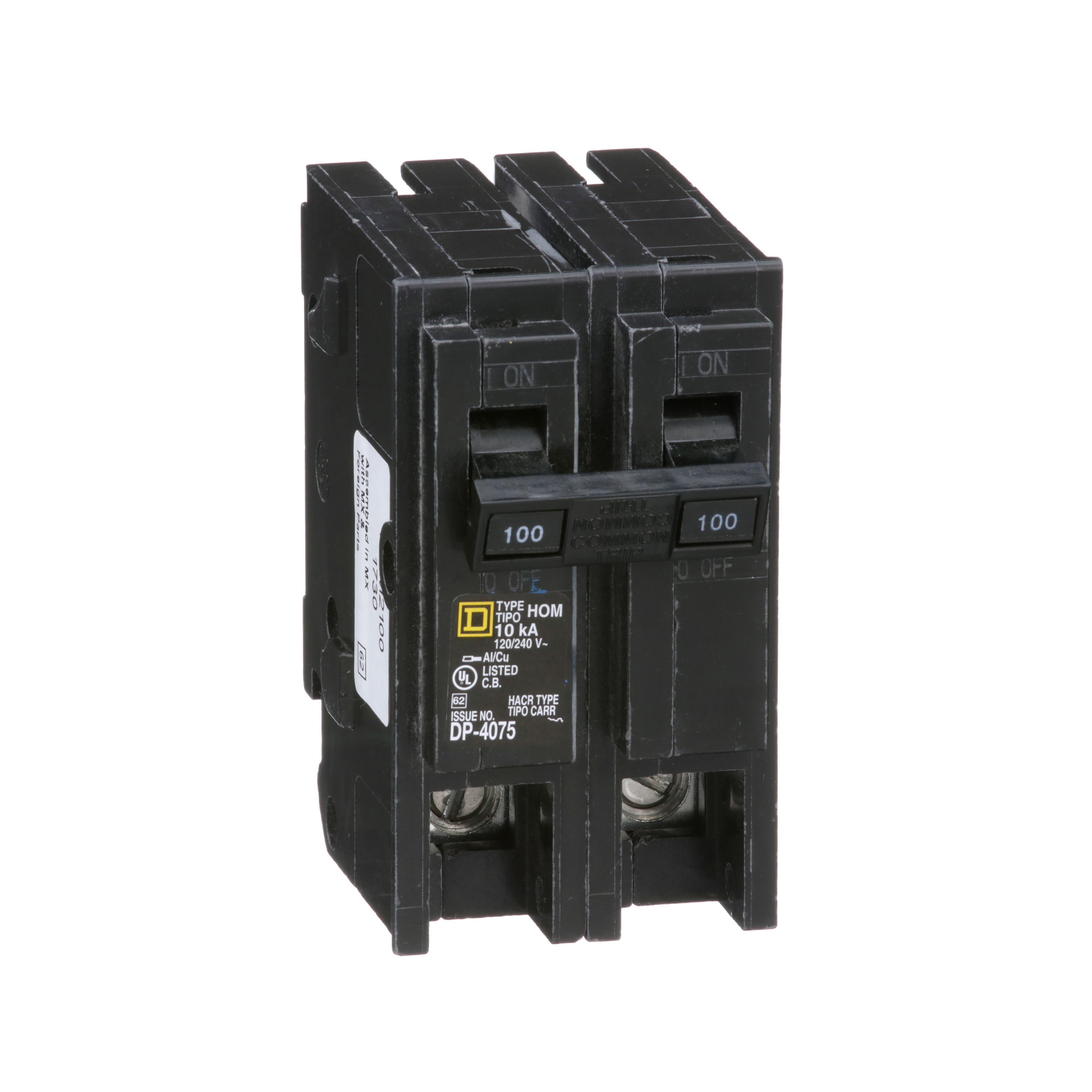

Square D™ HOM2100 Type HOM Standard Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ HOM2100 Type HOM Standard Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Poles
SKU31920
MFGR #HOM2100
Your Cost: $61.81/ea
List: Square D HOM2100 MINIATURE CIRCUIT BREAKER 120/240V 100A,100A,10kA,120/240VAC,HomeLine,Miniature Circuit Breaker,Provides overload and short circuit protection,Screw #4 to #2/0 AWG(Al/Cu),UL Listed - CSA Certified
Square D HOM2100 MINIATURE CIRCUIT BREAKER 120/240V 100A,100A,10kA,120/240VAC,HomeLine,Miniature Circuit Breaker,Provides overload and short circuit protection,Screw #4 to #2/0 AWG(Al/Cu),UL Listed - CSA Certified
Alternate Catalog Number HOM2100 Amperage Rating 100 A Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number HOM2100 Connection SCREW #4 TO #2/0 AWG(AL/CU) Connection Type Screw Country of Origin MX Currency USD Dimensions 2.98 in L x 2 in W x 3.13 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 28.93 Gross Volume per Pack Metric 474.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5100 lb Gross Weight per Pack Metric 430.91 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 8.6360 in Height [Metric] 8.6360 cm Interrupt Rating 10 kA Item Group 00146 Length 9.6520 in Length [Metric] 9.6520 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398051&lang=en-us Mounting PLUG-IN Mounting Type Plug-On Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards UL Listed, HACR Rated Stock Status NORMALLY STOCKED Sub Brand HOMELINE Substitute Product Catalog Number HOM2HBD Temperature Rating 104 °F Trip Type Instantaneous/Long Time/Thermal Magnetic Type Standard UNSPSC 39121601 UPC 11 78590106575 UPC 12 785901065753 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:Lifetime Width 5.8420 in Width [Metric] 5.8420 cm Wire Size 4 to 2/0 AWG PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION STANDARD Square D is the industry leader in circuit protection with a long-standing reputation for quality and reliability Square D offers Homeline a wide range of circuit breakers to meet all National electric code requirements and provide superior electrical safety Homeline load centers accept plug-on neutral, pigtail, full-size, and tandem circuit breakers on every space Faster installation fewer connections Saves wire fully distributed split neutral bar Frees gutter space no pigtails Easier troubleshooting TIME SAVER diagnostics provide additional circuit information at the touch of a button Faster and easier wiring All spaces accept tandems The Square D Homeline circuit breakers are in a 1 in wide format for 1-pole circuit breakers Cu/Al wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HOM2100 |
| Amperage Rating | 100 A |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | HOM2100 |
| Connection | SCREW #4 TO #2/0 AWG(AL/CU) |
| Connection Type | Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.98 in L x 2 in W x 3.13 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 28.93 |
| Gross Volume per Pack Metric | 474.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5100 lb |
| Gross Weight per Pack Metric | 430.91 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.6360 in |
| Height [Metric] | 8.6360 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00146 |
| Length | 9.6520 in |
| Length [Metric] | 9.6520 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398051&lang=en-us |
| Mounting | PLUG-IN |
| Mounting Type | Plug-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | UL Listed, HACR Rated |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | HOMELINE |
| Substitute Product Catalog Number | HOM2HBD |
| Temperature Rating | 104 °F |
| Trip Type | Instantaneous/Long Time/Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121601 |
| UPC 11 | 78590106575 |
| UPC 12 | 785901065753 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:Lifetime |
| Width | 5.8420 in |
| Width [Metric] | 5.8420 cm |
| Wire Size | 4 to 2/0 AWG |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| STANDARD |
| Square D is the industry leader in circuit protection with a long-standing reputation for quality and reliability |
| Square D offers Homeline a wide range of circuit breakers to meet all National electric code requirements and provide superior electrical safety |
| Homeline load centers accept plug-on neutral, pigtail, full-size, and tandem circuit breakers on every space |
| Faster installation fewer connections |
| Saves wire fully distributed split neutral bar |
| Frees gutter space no pigtails |
| Easier troubleshooting TIME SAVER diagnostics provide additional circuit information at the touch of a button |
| Faster and easier wiring All spaces accept tandems |
| The Square D Homeline circuit breakers are in a 1 in wide format for 1-pole circuit breakers |
| Cu/Al wire |
