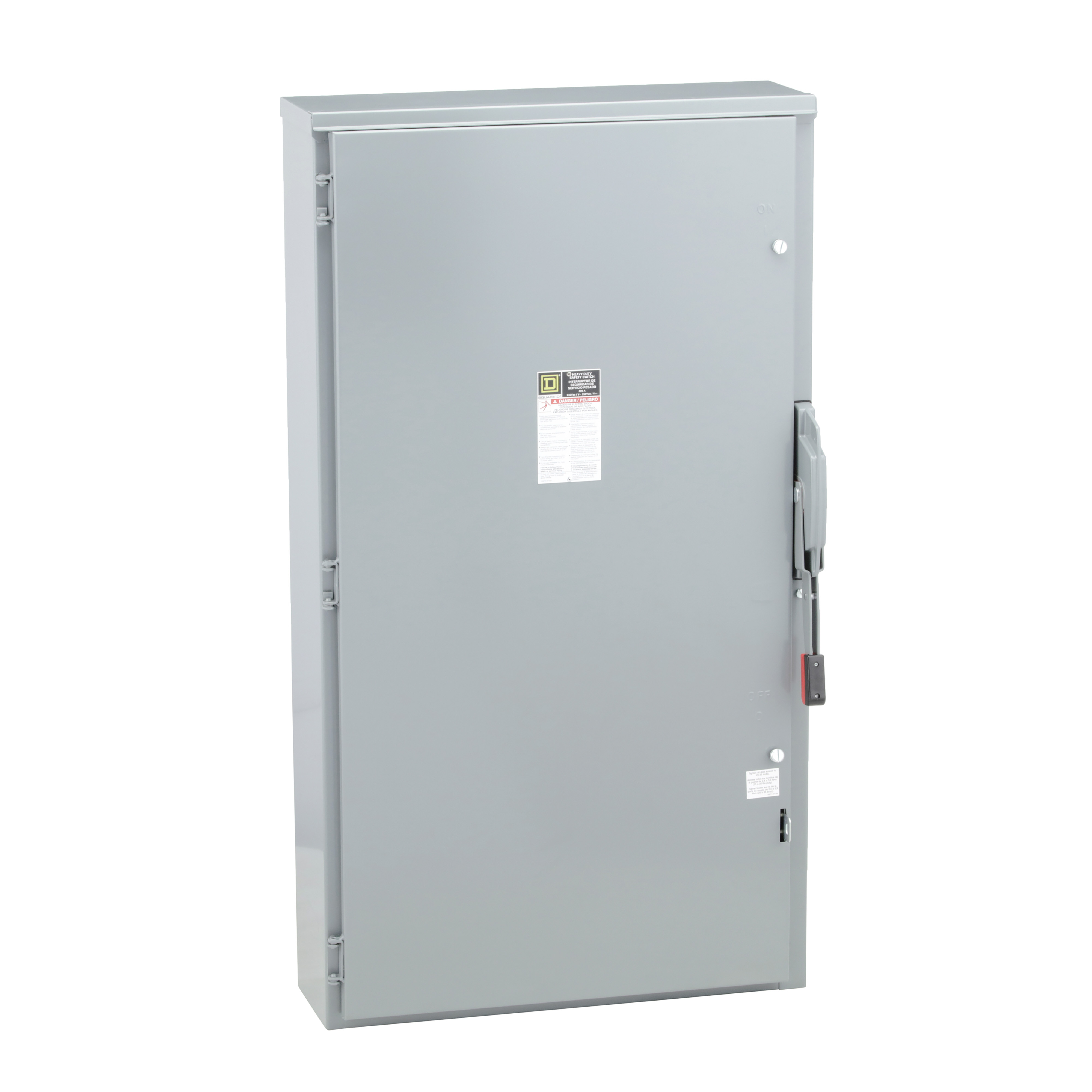

Square D™ H225NR Fusible Heavy Duty Safety Switch With Neutral, 240 VAC/250 VDC, 400 A, 50 hp, 2 Poles, DPST
Heavy Duty Safety Switches
98415
MFG #: H225NR
Square D™
2000.41000
/ ea
Square D H225NR SW,FUSIBLE 240V 400A 2P NEMA3R/NEUTRAL,240 V AC-250 V DC,400 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8051075360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=H225NR(3D Rendering URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Catalog URL - Square_D_D211N_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 4349d1747c6c3cb6aca4b75c58e723ab63629703.pdf(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 11003_9O7S65K82UHRPDJC.pdf(Spec Sheet URL)
- Install Instructions URL - files?p_Doc_Ref=40273-829-02(Install Instructions URL)
- Video - https://www.youtube.com/embed/3j1msgeG034(Video)
- Tech Drawing URL - 11003_FJYQKBXHO14375I9.dwg(Tech Drawing URL)
- Install Instructions 1 URL - 11003_0IBYW91U5ZASPQM2.pdf(Install Instructions 1 URL)
- Tech Drawing URL - 11003_1VDGWF39C0EBKJUL.dwg(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Applications
- Features
| HEAVY DUTY |
| HEAVY DUTY |
| Visible blades for positive blade position indication |
| Red and black handle indicates the On (red) or Off (black) switch position |
| Side-opening, left hinged covers |
| Highly visible embossed On/Off marking/On/Off labels are used on type 4X fiberglass reinforced polyester enclosures |
| Quick-make/quick-break operating mechanism |
| Standard with plated aluminum lugs which accepts both copper and aluminum wires |
| Front removable mechanical lugs |
| Dual cover interlock prevents the cover from being opened when the switch is on and prevents the switch from being turned on when the cover is open |
| An interlock bypass is provided for access by authorized personnel |
| Single throw action |
| Factory-installed neutral (neutrals are field-installable on most general duty and heavy duty safety switches) |
| Rain proof and sleet/ice proof (indoor/outdoor) environment conditions |
