Square D™ EXN30T3HCU PH Series, 480 V primary, 208Y/120 V secondary, 3 phase
General Purpose - Multi-Use Transformers
1142540
MFG #: EXN30T3HCU
Square D™
4475.70000
/ ea

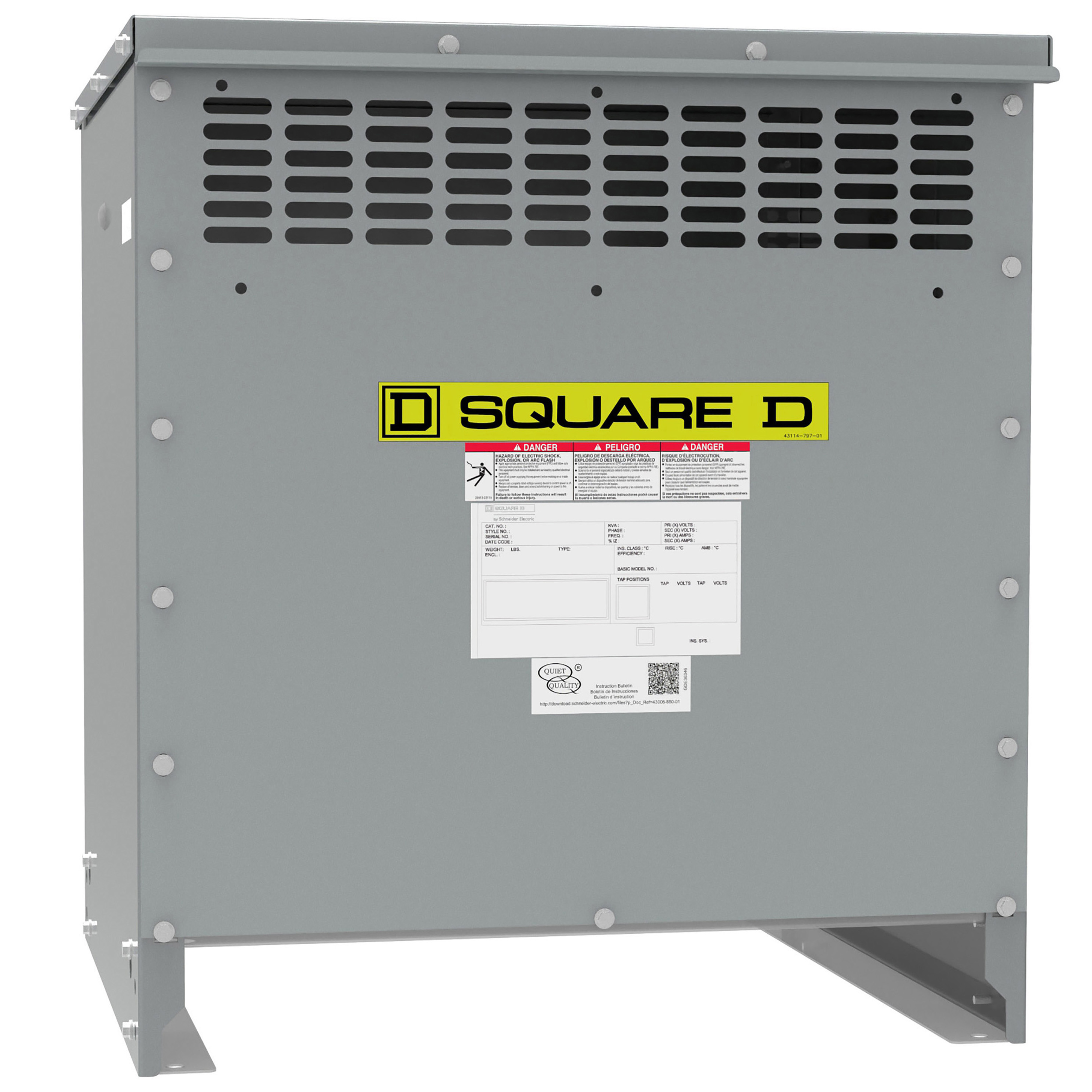

Square D™ EXN30T3HCU, PH Series, 480 V Primary, 208Y/120 V Secondary, 3 ph, 40 deg C, 98.38 % at 35 % load factor Efficiency, 28.31 in H x 25.51 in W x 24.69 in D Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=16923987360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=EXN30T3HCU.dwf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=EXN30T3HCU.DXF(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_ULE6GCJA18O7RFVI.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_PQ0DYKEB43JIV2NF.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_SAORN8KUWDT2L9XQ.zip(Tech Drawing URL)
- Applications
- Features
| For designing with the minimum AIC Panels available |
| The 2005 Energy Act set Low Voltage Distribution Transformers efficiency levels for all products manufactured after January 1, 2007, and also authorized the Department of Energy (DOE) to analyze and mandate levels for all Distribution Transformers |
| The DOE has chosen to increase efficiency level for all units manufactured after Jan 1, 2016. (10 CFR 431.192 April 2013) |
| Square D is addressing these mandated changes by exceeding the DOE requirements with changes in design and efficiency to core configuration, core material and coil sizes |
| We utilized the same conductor range for the Source and Load equipment as the Transformer, making the installation of the complete Square D package easier and faster |
| Separated primary and secondary terminals, sized to handle wire range of Square D equipment |
| Distribution system connect on the incoming and outgoing |
| Bending radius for side and bottom access |
| Quite Quality - minimum of 3db below ST-20 standard, with most units being 6-10dB below (see catalog and drawings for actual levels) |
| New Floor Mounting Kit - leveraging latest technology for mounting equipment to concrete floor |
| 225kVA and above - OPEN BOTTOM design for increase wire access in the bottom of the transformer (enclosure style J only) |
| 225kVA and above - OPEN BOTTOM design for increase wire access in the bottom of the transformer (enclosure style J only) |
| 18M box number |
| 30 kVA rated operational power in va |
| 2 2.5 % FCAN4 2.5 % FCBN number of tap-offs |
| 368 A 83.27 A 30 kVA primary operational current |
| Copper coil material |
| 10 kV basic imp level (bil) |
| 150 deg C220 deg C insulated temperature rise |
| 98.38 % at 35 % load factor , 167 deg F (75 deg C) doe efficiency |
