Square D™ EE75S3H Energy Efficient Low Voltage Transformer, 240/480 V Primary, 120/240 V Secondary, 75 kVA Power Rating, 1 Phase
General Purpose - Multi-Use Transformers
347249
MFG #: EE75S3H
Square D™
8898.36000
/ ea

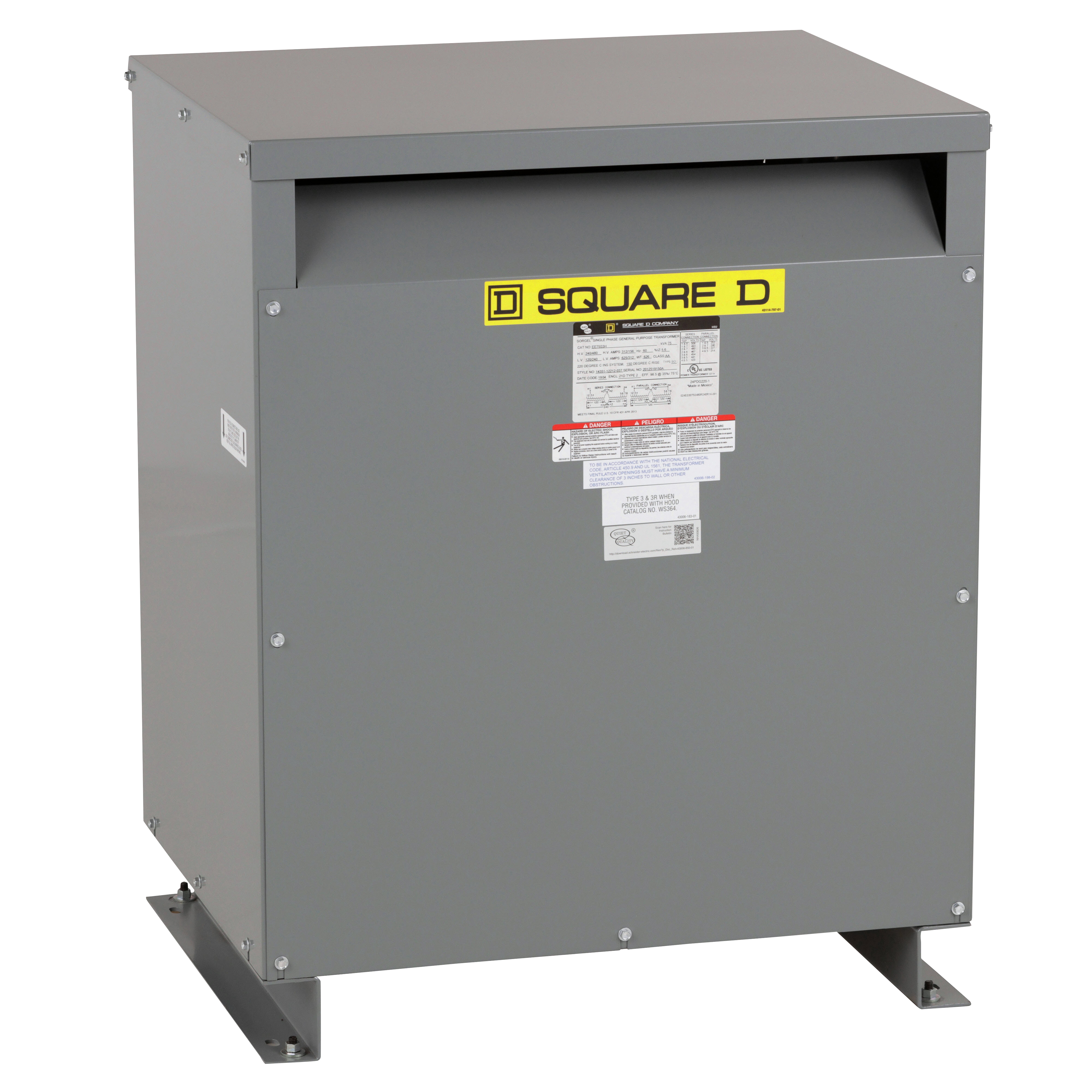

Square D™ Low Voltage Transformer, Energy Efficient, 240/480 V Primary, 120/240 V Secondary, 75 kVA Power, 1 ph, 6 Taps, Ceiling/Floor Mounting, 220 deg C Insulation, NEMA 2/21D Enclosure, 150 deg C, Aluminum Housing Material
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=9613669360Den&ext=webp(360 Degree View URL)
- Brochure URL - 482202b17e9da3c7d6a61d89b7977d1d0715c6f6.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=6312-0201.DWF(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=6312-0201.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_WKR9FM3Q2VOJ7P5Z.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_DVHEKX1S046YAG57.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_W5VCJBTO8XY0GFUD.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=6312-0201.dxf(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=6312-0201.dwg(Tech Drawing URL)
- User Manual URL - 11003_SP9W5RE32CJF1KH8.pdf(User Manual URL)
- User Manual URL - 11003_FVNW427MP6XS9UZ0.pdf(User Manual URL)
- Features
| ENERGY EFFICIENT TRANSFORMER,ALUMINIUM |
| Smaller total area used, with 3 in clearance from ventilated openings instead of 6 in, reducing the distance from the wall to the front of the device by 3 in |
| Terminals are sized to handle lug kits that are coordinated with other square D™ products, increasing the ease of installation when used with other square D™ equipment |
| Increased wiring compartments provide a bending radius for 250% primary cables and multiple feeds on the secondary |
| All units have 200% neutral to allow customers to feed standard and non-linear panels |
| Decreased weight for easier handling of units |
| Aluminum windings |
| Resin filled transformers |
