Square D™ EE100S3H Dry Energy Efficient Low Voltage Transformer, 240/480 VAC Primary, 120/240 V Secondary, 100 kVA Power Rating, 1 Phase
General Purpose - Multi-Use Transformers
347250
MFG #: EE100S3H
Square D™
9681.21000
/ ea

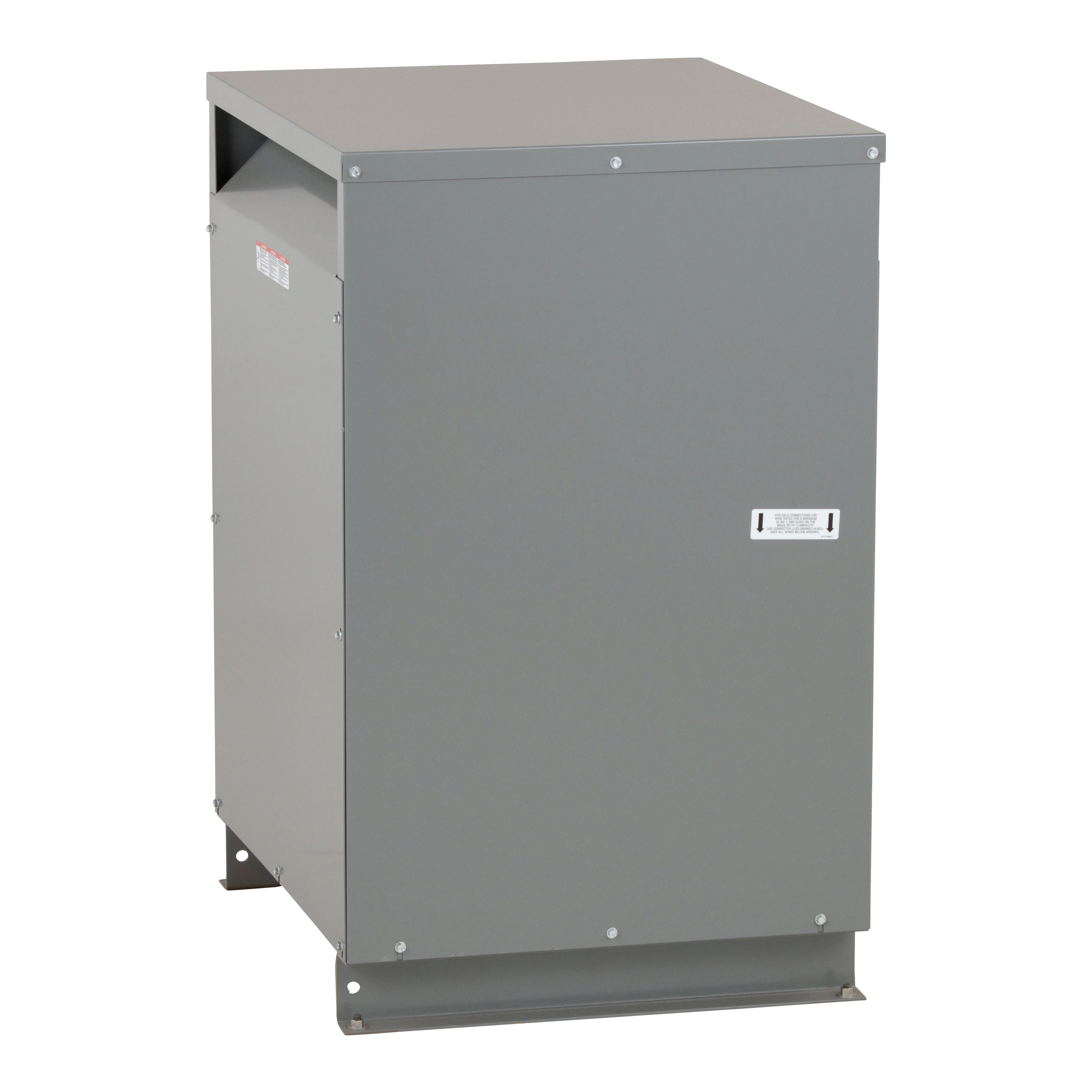

Square D™ Transformer, Dry Energy Efficient Low Voltage, 240/480 VAC Primary, 120/240 V Secondary, 100 kVA Power, 1 ph, 6 Taps, Ceiling/Floor Mounting, 428 deg F Insulation, NEMA 2 Enclosure, 150 deg C
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=9613595360Den&ext=webp(360 Degree View URL)
- Brochure URL - 379d54e597fe8f780409c4c45b66e9573322b01e.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=6312-0202.DWF(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=6312-0202.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_C0195NDHKJZQGROP.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_5VZI3GPRY7J1QC6O.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_P90XOFHWK3QMYZ12.zip(Tech Drawing URL)
- User Manual URL - 11003_FVNW427MP6XS9UZ0.pdf(User Manual URL)
- User Manual URL - 11003_SP9W5RE32CJF1KH8.pdf(User Manual URL)
- Applications
- Features
| Indoor/Outdoor Applications |
| ENERGY EFFICIENT TRANSFORMER,ALUMINIUM |
| Smaller total area used, with 3 in clearance from ventilated openings instead of 6 in, reducing the distance from the wall to the front of the device by 3 in |
| Terminals are sized to handle lug kits that are coordinated with other square D™ products, increasing the ease of installation when used with other square D™ equipment |
| Increased wiring compartments provide a bending radius for 250% primary cables and multiple feeds on the secondary |
| All units have 200% neutral to allow customers to feed standard and non-linear panels |
| Decreased weight for easier handling of units |
| Aluminum winding |
| Resin-filled transformers |
