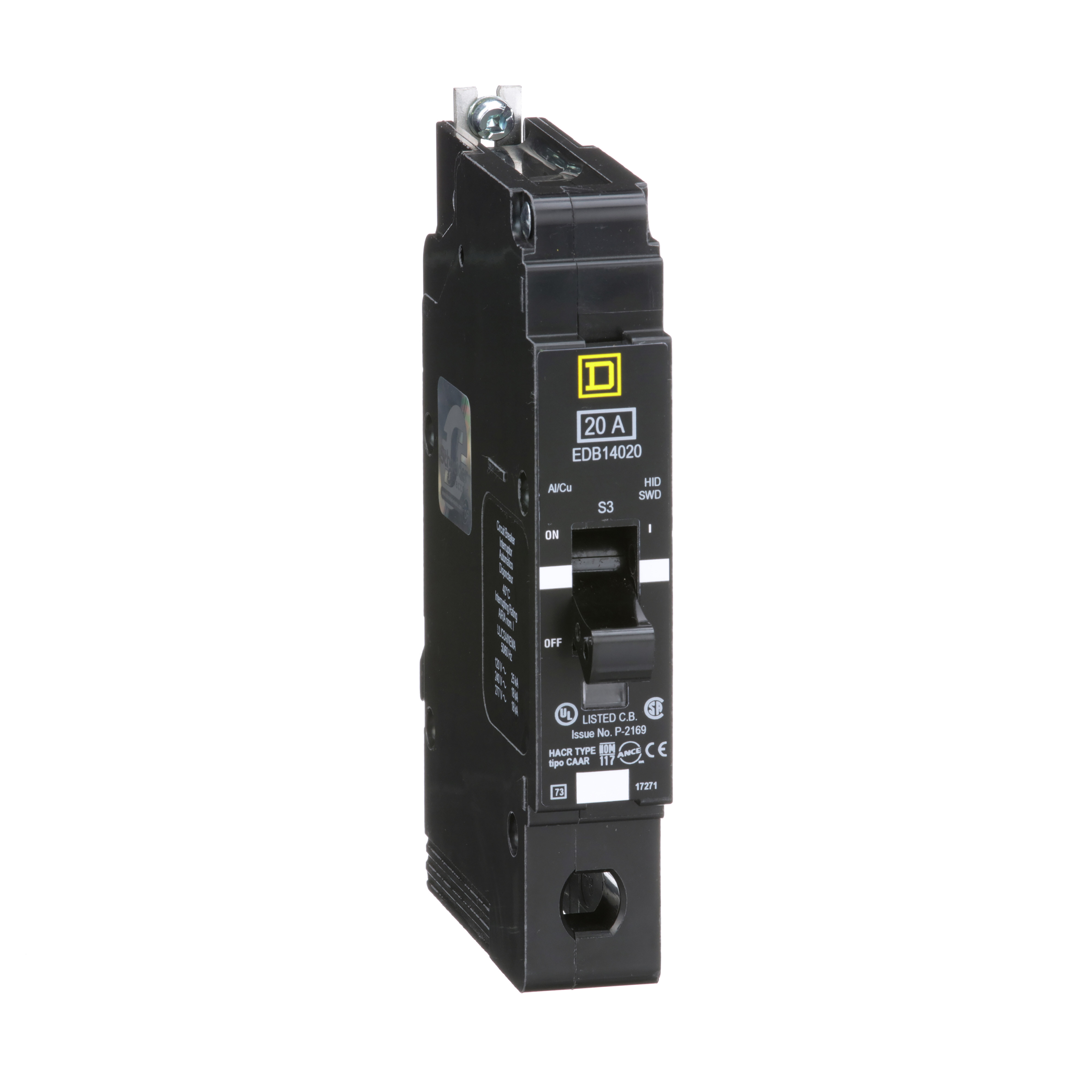

Square D™ EDB14020 Standard Miniature Circuit Breaker, 277/480 VAC, 20 A, 18 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Square D™ EDB14020 Standard Miniature Circuit Breaker, 277/480 VAC, 20 A, 18 kA Interrupt, 1 Pole
SKU34955
MFGR #EDB14020
Your Cost: $148.66/ea
List: Square D EDB14020 MINIATURE CIRCUIT BREAKER 277V 20A,18kA,20A,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EDB14020 MINIATURE CIRCUIT BREAKER 277V 20A,18kA,20A,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EDB14020 Amperage Rating 20 A Application NF panelboard;HID rated;Switching Duty rated;HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number EDB14020 Connection LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 5.66 in H x 0.98 in W x 4.05 in D EU RoHS Indicator Y Frame EDB Frequency Rating 50/60 Hz Gross Volume Per Pack 112.00 Gross Volume per Pack Metric 1835.28 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.4100 lb Gross Weight per Pack Metric 600.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 4.5720 in Height [Metric] 4.5720 cm Interrupt Rating 18 kA Item Group 00931 Length 25.9080 in Length [Metric] 25.9080 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396635&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards CSA Certified, HACR Rated, NOM 117 Certified, RoHS Compliant, UL Listed Stock Status NORMALLY STOCKED Sub Brand E FRAME Substitute Product Catalog Number HPAFD Temperature Rating 40 °C Trip Range 270 to 875 A Trip Type Thermal Magnetic Type Molded Case Standard UNSPSC 39121603 UPC 11 78590187890 UPC 12 785901878902 Voltage Rating 277/480 VAC Warranty Description Contractual Warranty:18 months Width 15.4940 in Width [Metric] 15.4940 cm Wire Size 14 to 6 AWG, 12 to 6 AWG NF panelboard;HID rated;Switching Duty rated;HACR rated BOLT-ON VISI-TRIP feature 14 - 6 AWG copper, 12 - 6 AWG aluminum 270 A hold, 875 A trip Standard For merchandised NF panelboards Optional factory-installed electrical accessories include 120 Vac shunt trip, 1A/1B auxiliary switch and normally open alarm switch Optional handle padlock attachment Optional copper and compression lugs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Alternate Catalog Number | EDB14020 |
Amperage Rating | 20 A |
Application | NF panelboard;HID rated;Switching Duty rated;HACR rated |
ARRA Compliant | N |
Brand | Square D™ |
Buy American Compliant | N |
Catalog Number | EDB14020 |
Connection | LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) |
Connection Type | Lug |
Country of Origin | MX |
Currency | USD |
Depth | 4.05 in |
Dimensions | 5.66 in H x 0.98 in W x 4.05 in D |
EU RoHS Indicator | Y |
Frame | EDB |
Frequency Rating | 50/60 Hz |
Gross Volume Per Pack | 112.00 |
Gross Volume per Pack Metric | 1835.28 |
Gross Volume UOM | CI |
Gross Volume UOM Metric | cm3 |
Gross Weight Per Pack | 1.4100 lb |
Gross Weight per Pack Metric | 600.00 |
Gross Weight UOM Metric | g |
Harmonization Tariff Schedule Code | 8536200040 |
Height | 4.5720 in |
Height [Metric] | 4.5720 cm |
Interrupt Rating | 18 kA |
Item Group | 00931 |
Length | 25.9080 in |
Length [Metric] | 25.9080 cm |
Manufacturer | Schneider Electric |
Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396635&lang=en-us |
Mounting Type | Bolt-On |
Number Of Poles | 1 |
Operating Temperature | 40 °C |
Phase | 1 |
Returnable | Y |
Standard | UL LISTED - CSA CERTIFIED |
Standards | CSA Certified, HACR Rated, NOM 117 Certified, RoHS Compliant, UL Listed |
Stock Status | NORMALLY STOCKED |
Sub Brand | E FRAME |
Substitute Product Catalog Number | HPAFD |
Temperature Rating | 40 °C |
Trip Range | 270 to 875 A |
Trip Type | Thermal Magnetic |
Type | Molded Case Standard |
UNSPSC | 39121603 |
UPC 11 | 78590187890 |
UPC 12 | 785901878902 |
Voltage Rating | 277/480 VAC |
Warranty Description | Contractual Warranty:18 months |
Width | 15.4940 in |
Width [Metric] | 15.4940 cm |
Wire Size | 14 to 6 AWG, 12 to 6 AWG |
NF panelboard;HID rated;Switching Duty rated;HACR rated |
BOLT-ON |
VISI-TRIP feature |
14 - 6 AWG copper, 12 - 6 AWG aluminum |
270 A hold, 875 A trip |
Standard |
For merchandised NF panelboards |
Optional factory-installed electrical accessories include 120 Vac shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
Optional handle padlock attachment |
Optional copper and compression lugs |
