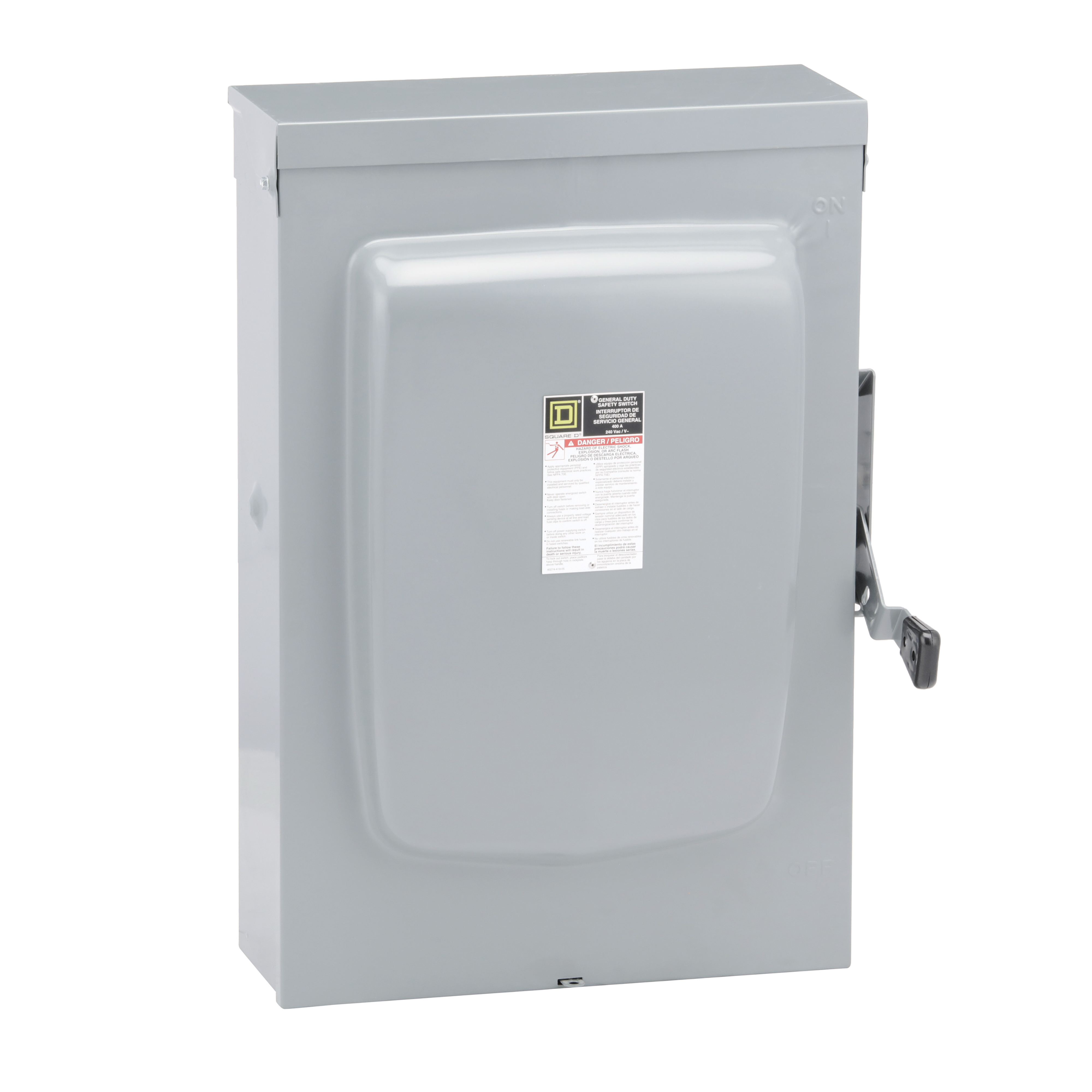

Square D™ D225NR SWITCH FUSIBLE GD 240V 400A 2P NEMA3R
Disconnect Switches
62933
MFG #: D225NR
Square D™
2349.87000
/ ea
Square D D225NR SWITCH FUSIBLE GD 240V 400A 2P NEMA3R,240 Vac,400 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed File E2875,general duty,general duty,surface
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8055754360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=D225NR(3D Rendering URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Square_D_D211N_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Square_D_D211N_Catalog.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_WF318VCKYQ9AJHPB.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=1877.dwg(Tech Drawing URL)
- Spec Sheet URL - 11003_V2HLSQFBOGU5MJ0D.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_0PODYMUK9R17QS25.pdf(Tech Drawing URL)
- Applications
- Features
| GENERAL DUTY |
| GENERAL DUTY |
| Horsepower rated for motor applications |
| Tangential knockouts alleviate the need for offset bends |
| Spring reinforced, plated copper fuse clips |
| Insulated, bonded solid neutral assemblies (standard in fusible switches) |
| Visible blades |
| Quick-make, quick-break operating mechanism |
| Cover padlock hasp and handle lock-off |
| Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel |
| Rainproof and sleet/ice proof (indoor/outdoor) environmental conditions |
| Single throw action |
| Factory-installed neutral (neutrals are field-installable on most general duty and heavy duty safety switches) |
