Square D™

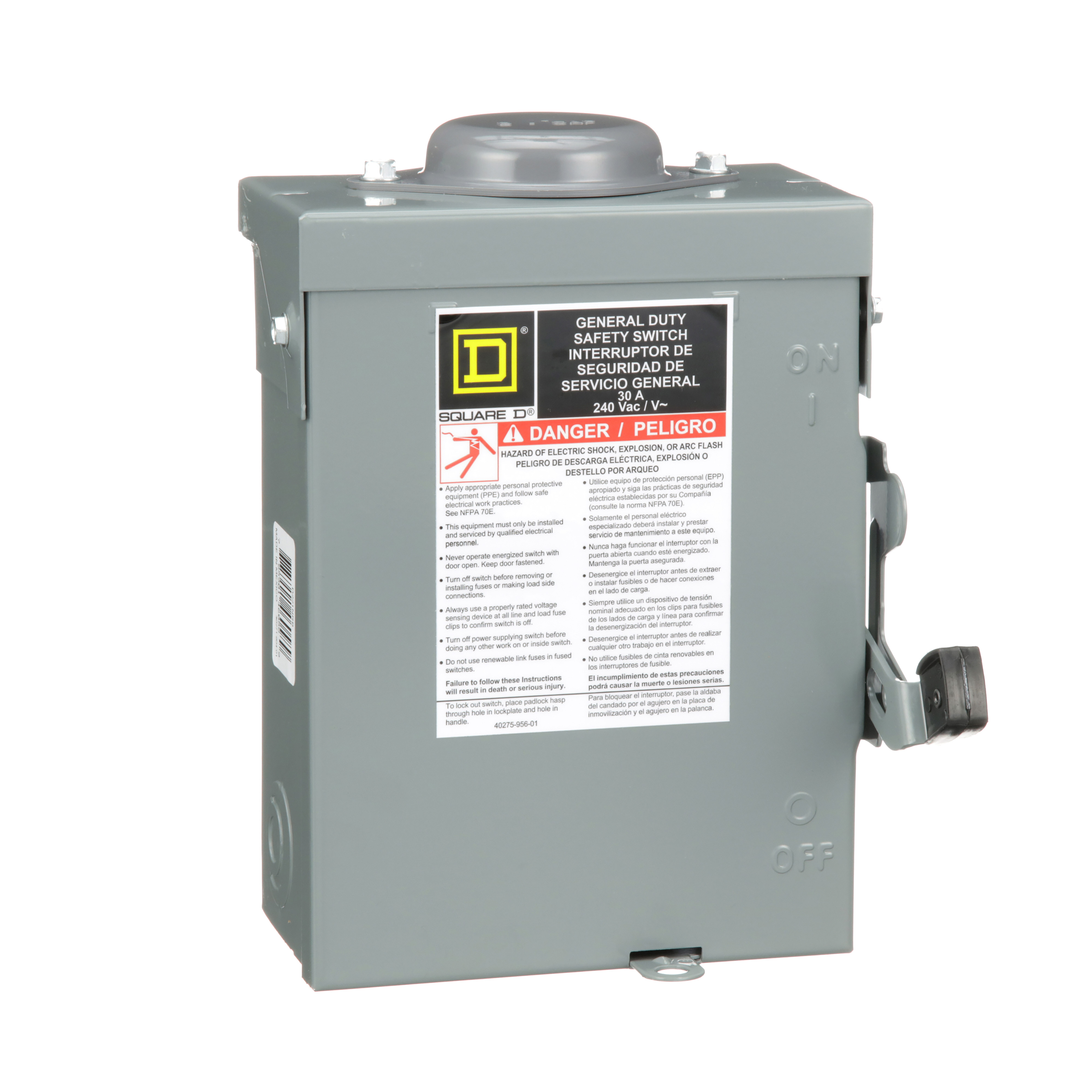

Square D™ D221NRB E3 Fused Single Throw General Duty Safety Switch, 240 VAC, 3 hp, 30 A, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ D221NRB E3 Fused Single Throw General Duty Safety Switch, 240 VAC, 3 hp, 30 A, 2 Poles
SKU33380
MFGR #D221NRB
Your Cost: $127.72/ea
List: Square D D221NRB SWITCH FUSIBLE GD 240V 30A 2P NEMA3R,240 Vac,30 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed File E2875,general duty,general duty,surface
Square D D221NRB SWITCH FUSIBLE GD 240V 30A 2P NEMA3R,240 Vac,30 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed File E2875,general duty,general duty,surface
Amperage Rating 30 A Brand Square D™ Catalog Number D221NRB Country of Origin MX Enclosure Type NEMA 3R Gross Weight Per Pack 4.7200 lb Manufacturer Schneider Electric Material Steel Number Of Poles 2 Standards RoHS CompliantUL File NO. E2875NEMA KS1 Stock Status NORMALLY STOCKED UNSPSC 39122205 UPC 11 78590146058 UPC 12 785901460589 Voltage Rating 240 VAC Action SINGLE THROW Actuator Type Handle Alternate Catalog Number D221NRB Application Residential ARRA Compliant N Buy American Compliant N Contact Form DPST Currency USD Enclosure NEMA 3R EU RoHS Indicator Y Finish Galvanized Frequency Rating 50/60 Hz Gross Volume Per Pack 413.40 Gross Volume per Pack Metric 6774.39 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight per Pack Metric 2.15 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height [Metric] 13.4620 cm Horsepower 3 hp Item Group 00106 Length [Metric] 25.4000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458057&lang=en-us Mounting Surface Mounting Type Surface NEMA Rating 3R Number of Wires 3 Phase 1 pH Returnable Y Series E3 Short Circuit Current Rating 100 kA Standard UL listed file E2875 Sub Brand GENERAL DUTY Substitute Product Catalog Number DRK30 Terminal Type Lug Type Enclosed Fusible Warranty Description Contractual Warranty:18 months Width [Metric] 19.8120 cm Residential GENERAL DUTY Horsepower rated for motor applications Tangential knockouts alleviate the need for offset bends Spring reinforced plated copper fuse clips Insulated, bonded solid neutral assemblies (standard in fusible switches) Visible blades Quick-make, quick-break operating mechanism Cover padlock hasp and handle lock off Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel Rainproof and sleet/ice proof Indoor/outdoor environmental conditions
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 30 A |
| Brand | Square D™ |
| Catalog Number | D221NRB |
| Country of Origin | MX |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 4.7200 lb |
| Manufacturer | Schneider Electric |
| Material | Steel |
| Number Of Poles | 2 |
| Standards | RoHS CompliantUL File NO. E2875NEMA KS1 |
| Stock Status | NORMALLY STOCKED |
| UNSPSC | 39122205 |
| UPC 11 | 78590146058 |
| UPC 12 | 785901460589 |
| Voltage Rating | 240 VAC |
| Action | SINGLE THROW |
| Actuator Type | Handle |
| Alternate Catalog Number | D221NRB |
| Application | Residential |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Contact Form | DPST |
| Currency | USD |
| Enclosure | NEMA 3R |
| EU RoHS Indicator | Y |
| Finish | Galvanized |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 413.40 |
| Gross Volume per Pack Metric | 6774.39 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight per Pack Metric | 2.15 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height [Metric] | 13.4620 cm |
| Horsepower | 3 hp |
| Item Group | 00106 |
| Length [Metric] | 25.4000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458057&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| NEMA Rating | 3R |
| Number of Wires | 3 |
| Phase | 1 pH |
| Returnable | Y |
| Series | E3 |
| Short Circuit Current Rating | 100 kA |
| Standard | UL listed file E2875 |
| Sub Brand | GENERAL DUTY |
| Substitute Product Catalog Number | DRK30 |
| Terminal Type | Lug |
| Type | Enclosed Fusible |
| Warranty Description | Contractual Warranty:18 months |
| Width [Metric] | 19.8120 cm |
| Residential |
| GENERAL DUTY |
| Horsepower rated for motor applications |
| Tangential knockouts alleviate the need for offset bends |
| Spring reinforced plated copper fuse clips |
| Insulated, bonded solid neutral assemblies (standard in fusible switches) |
| Visible blades |
| Quick-make, quick-break operating mechanism |
| Cover padlock hasp and handle lock off |
| Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel |
| Rainproof and sleet/ice proof |
| Indoor/outdoor environmental conditions |
