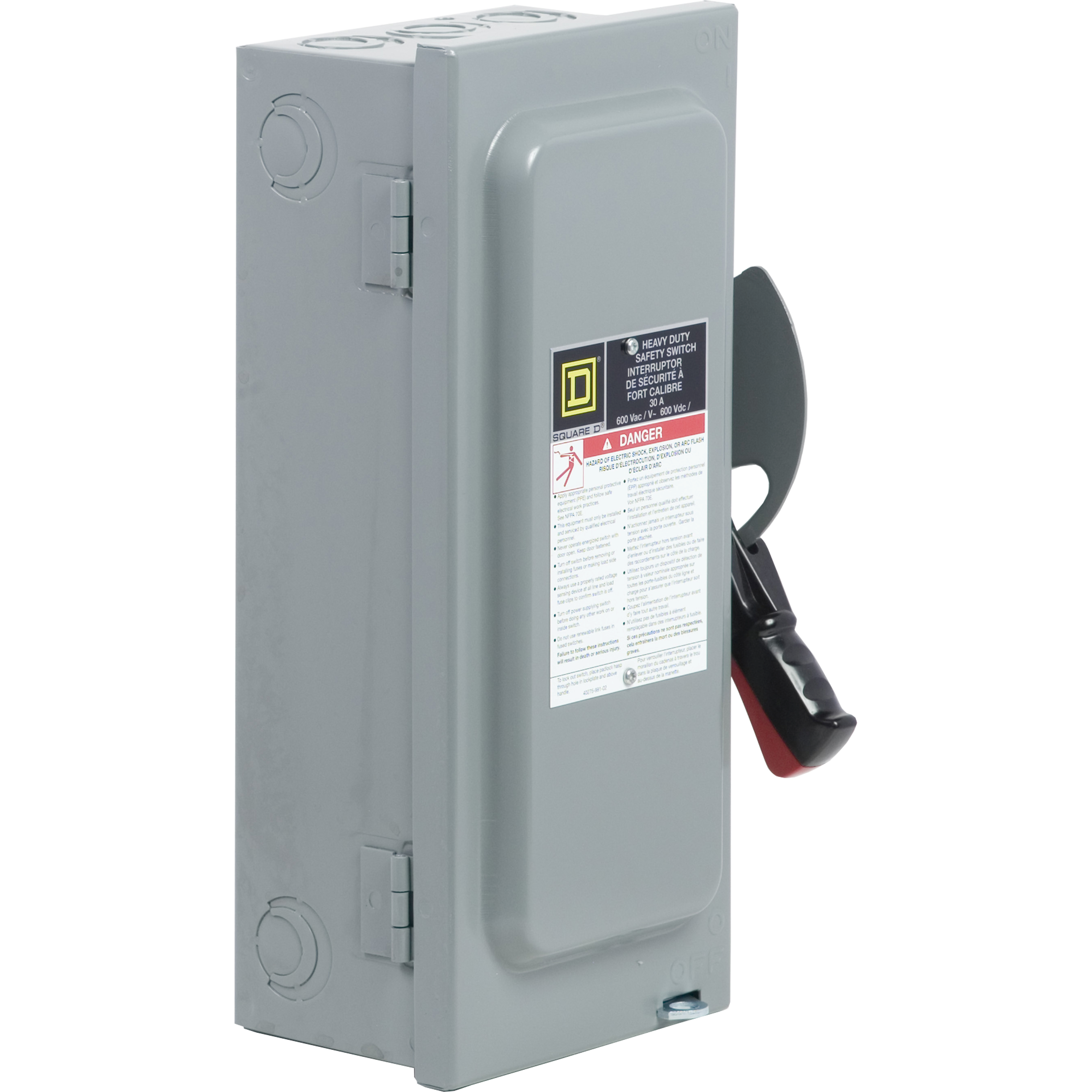

Square D™ CH361 Fusible Heavy Duty Single Throw Disconnect Switch, 600 VAC/VDC, 30 A, 7-1/2 hp, 15 hp, 20 hp, TPST Contact, 3 Poles
Heavy Duty Safety Switches
1392046
MFG #: CH361
Square D™
581.57000
/ ea
Square D™ Disconnect Switch, Fusible Heavy Duty Single Throw, Series, 600, Amperage Rating VAC/VDC, A 30, 7-1/2 hp, 15 hp, 20 hp, Phase, Number of Poles, 3 Wires, Short Circuit Current Rating, kA 200, TPST, Actuator Type, Phenolic Insulation, Enclosure Type, Surface Mount, Terminal Type, Dimensions, Steel, Color, Galvannealed
- Brochure URL - 11003_GX6HE412D73PZ9VO.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_0IBYW91U5ZASPQM2.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_WJ0ZEYPICBU5DF8M.zip(Tech Drawing URL)
- Spec Sheet URL - 11003_WHOZA68XLC4PM32J.pdf(Spec Sheet URL)
- Applications
- Features
| Commercial and Industrial Applications |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "Off" |
| Quick-make/quick-break operating mechanism |
| Lugs suitable for aluminum or copper conductors |
| Multiple padlock provisions in the "Off" position |
| Spring reinforced, plated copper fuse clips |
| Red and black handle indicates the On (red) or Off (black) switch position |
| Dual cover interlock |
| Single throw action |
