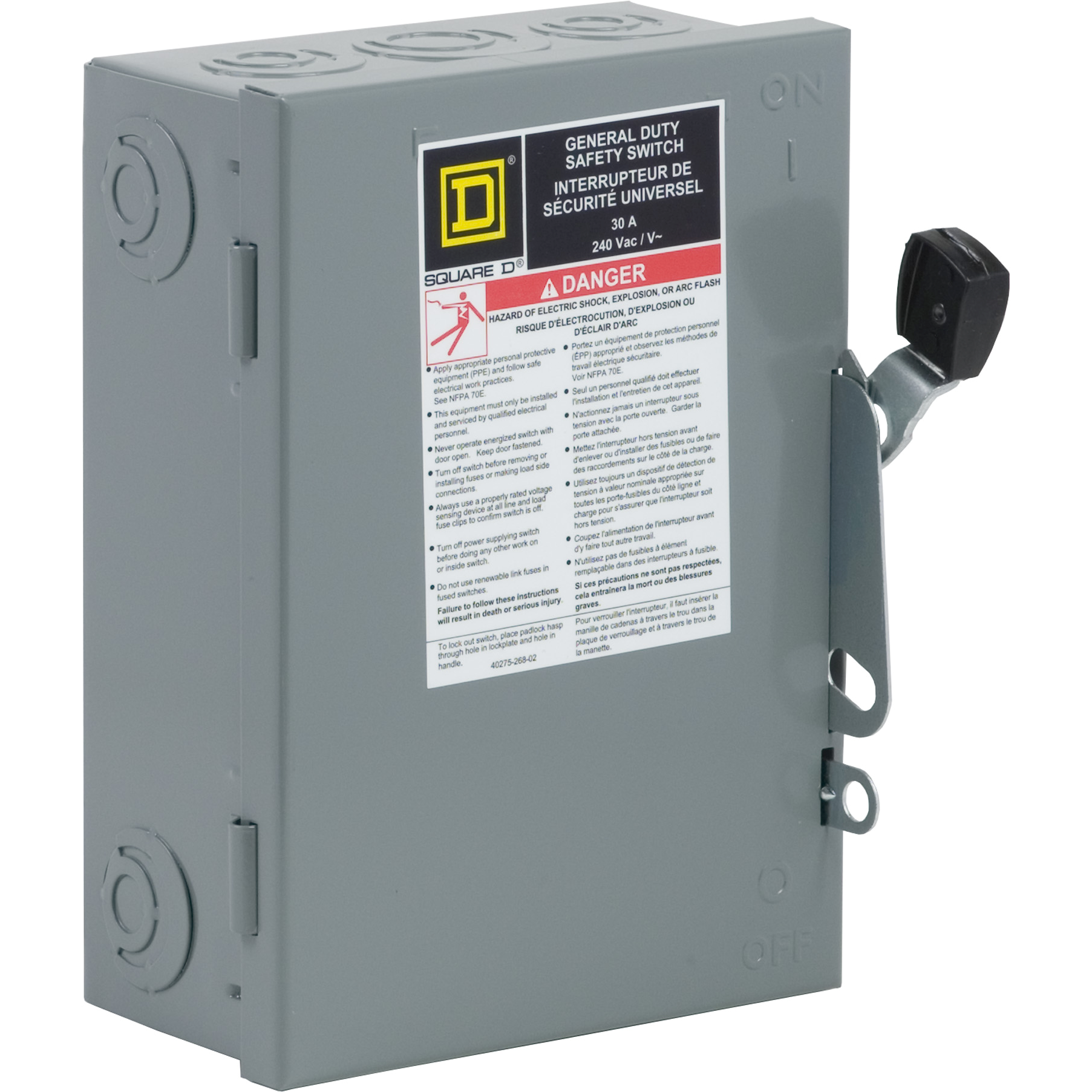

Square D™ CD221N Cartridge Fusible Single Throw General Duty Safety Switch With Solid Neutral, 120/240 VAC, 30 A, 1-1/2 hp, 3 hp, DPST Contact, 2 Poles
General Duty Safety Switches
1381820
MFG #: CD221N
Square D™
129.69000
/ ea
Square D™ General Duty Safety Switch, Cartridge Fusible Single Throw, 120/240 VAC, 30 A, 1-1/2 hp, 3 hp, 1 ph, 2 Pole, 3 Wires, 100 kA Short Circuit, DPST Contact Form, Padlock-Off Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 9.25 in H x 7.25 in W x 3.63 in D Dimensions, Steel, Galvanized
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=1851.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_WF318VCKYQ9AJHPB.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_J65NP4A3ZXDQWBTL.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_I1KR7SLXFY5DMUW9.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_QRG39SMXCFAKH8IJ.dwg(Tech Drawing URL)
- Features
| 14 to 6 AWG (copper), 12 to 6 AWG (aluminum) wire size |
| Fusible disconnector device type |
| Switches have factory installed ground bars |
| Single throw action |
| Factory-installed neutral (neutrals are field-installable on most general duty and heavy duty safety switches) |
