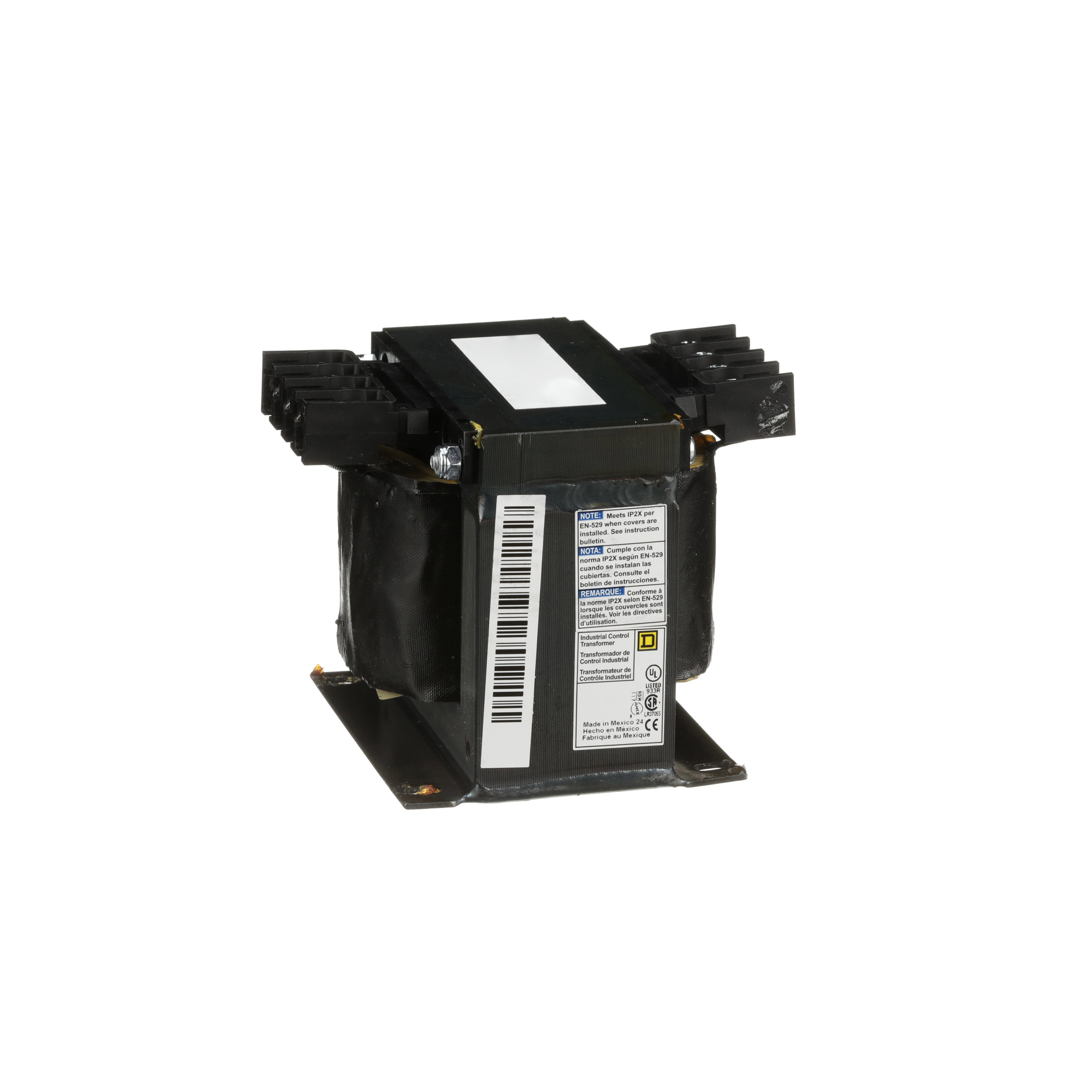

Square D™ 9070T350D31 Type T Industrial Control Transformer, 240 x 480/230 x 460/220 x 440 VAC Primary, 120/240 VAC Secondary, 350 VA Power Rating, 50/60 Hz, 1 Phase
Control Transformers
329510
MFG #: 9070T350D31
Square D™
661.00000
/ ea
Square D™ Control Transformer, Type T Industrial, Series: 9070, 240 x 480/230 x 460/220 x 440 VAC Primary, 120/240 VAC Secondary, 350 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 130 deg C Insulation, Open Enclosure, 80 deg C, 3.84 in H x 4.5 in W x 5.11 in D Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8130842360Den&ext=webp(360 Degree View URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5897.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_R1LX5W8EN3ZTVP4B.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_SIRCBPW8H6K73ZMQ.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_5HFWBRTQLNXSD207.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_7E1FTBY2Q5IZ4KGN.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_J6G51BXWUOKYHIDN.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_SV7JQ3YIXAEF9HBC.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=5897.dxf(Tech Drawing URL)
- Applications
- Features
| For handling high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes, industrial markets, OEM commercial and electrical equipment OEM applications |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes |
| Copper winding |
| 230/460 or 220/440 VAC primary voltage |
| 115/230 or 110/220 VAC secondary voltage |
