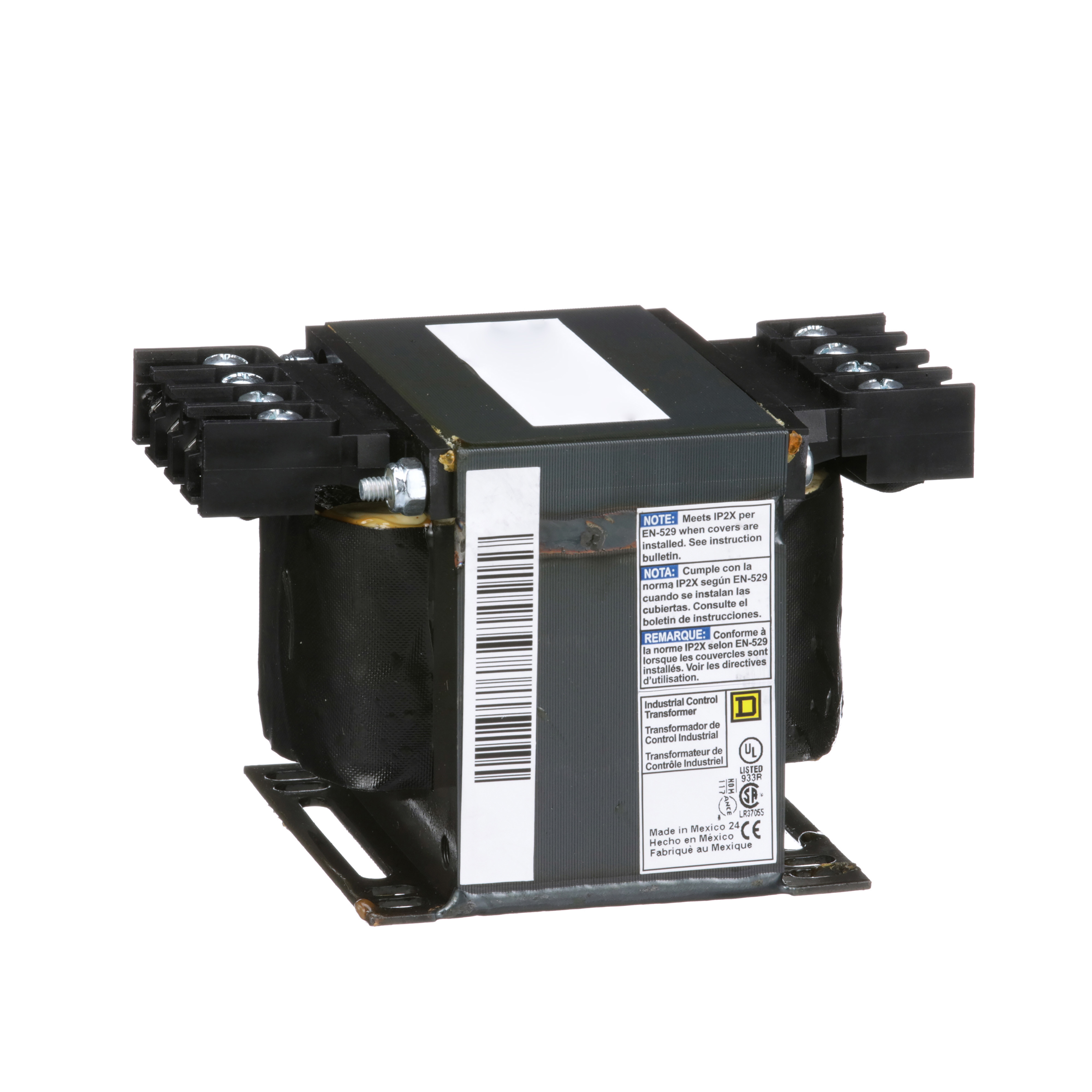

Square D™ 9070T250D24 Type T Industrial Control Transformer, 120/115/110 VAC Primary, 110/115/120 VAC Secondary, 250 VA Power Rating, 50/60 Hz, 1 Phase
Control Transformers
PDW~6446270
MFG #: 9070T250D24
Square D™
0.00000
/ ea
Square D™ Control Transformer, Type T Industrial, Series: 9070, 120/115/110 VAC Primary, 110/115/120 VAC Secondary, 250 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 130 deg C Insulation, Open Enclosure, 3-1/4 in H x 3-3/4 in W x 5-1/4 in D Dimensions
- 360 Degree View URL - index.html?pid=11003&id=8132374360Den&ext=webp(360 Degree View URL)
- Brochure URL - 07d18b421a9c934d97f9052c1fc2a60e283d7b49.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5892.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_R1LX5W8EN3ZTVP4B.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_O6M0NHZABPLFTXRU.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_5HFWBRTQLNXSD207.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_G2DF0L7AHJX5RKZ4.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- Applications
- Features
| For handling high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes, industrial markets, OEM commercial and electrical equipment OEM applications |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes |
| Copper winding |
| 115 or 110 VAC primary voltage |
| 115 or 110 VAC secondary voltage |
