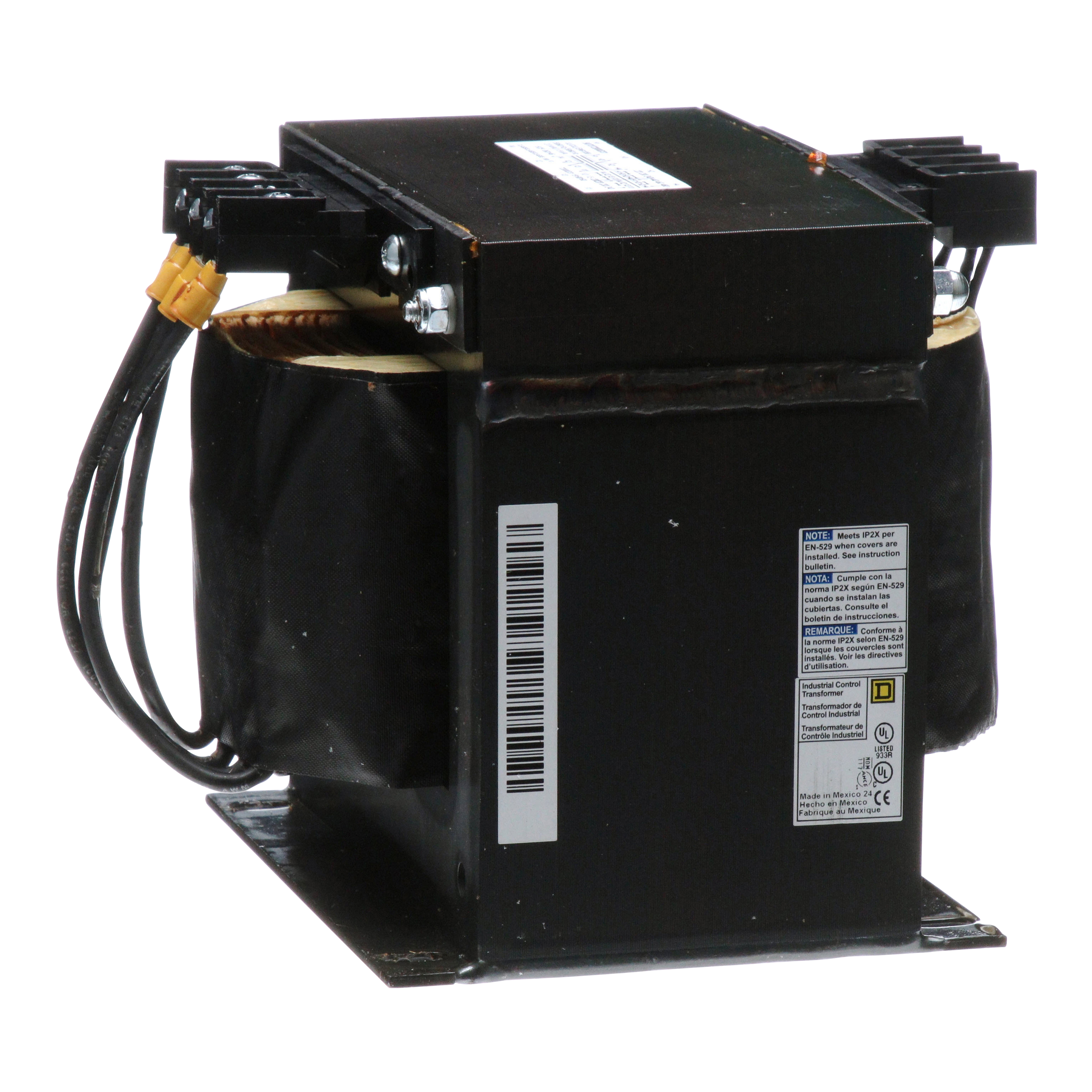

Square D™ 9070T2000D31 Type T Industrial Open Style Control Transformer, 240/480 VAC Primary, 2000 VA
Control Transformers
99660
MFG #: 9070T2000D31
Square D™
1834.00000
/ ea
Square D 9070T2000D31 XFMR CONTROL 2000VA MULTIPLE VOLTAGES,1-Phase,115 Degrees C,120/240V or 115/230V or 110/220V,180 deg.C,2000VA,240x480V or 230x460V or 220x440V,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8038120360Den&ext=webp(360 Degree View URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_9070T1000D1_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_029c12af1a703576ffe19f403f1492d2c42bc2427b3f41968acaab12e1057c40.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5874.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_R1LX5W8EN3ZTVP4B.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_49AFLSYUP6BWIM3E.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_5HFWBRTQLNXSD207.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_7E1FTBY2Q5IZ4KGN.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_Z1LN6XRE48PV5WAC.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_ZYM64FHEQPLK1BUT.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- Applications
- Features
FSC2 |
INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
Stocked in a wide variety of sizes |
Derives 120 or near 120 VAC control power from a wide variety of supply voltages |
Compatible with Square D™ finger-safe® covers |
Compatible with Square D™ control power fuse kits |
Competitively priced with other universal control power transformers on the market |
Copper winding |
240/480, 230/460, 220/440 VAC primary voltage rating |
110/115/120 VAC secondary voltage rating |
