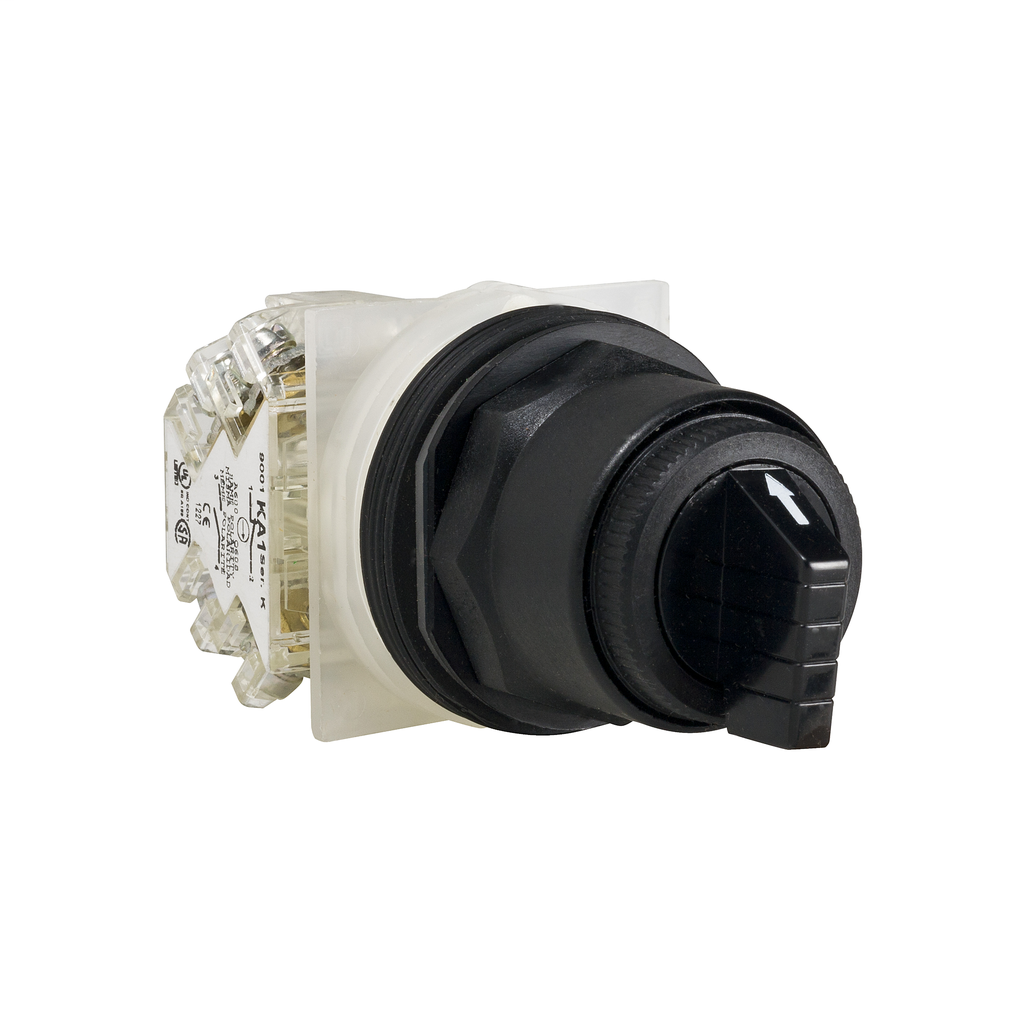

Square D™ 9001SKS63FBH13 SELECTOR SWITCH
SKUPDW~6441734
MFGR #9001SKS63FBH13
Your Cost: $135.03/ea
List: Schneider Electric,SELECTOR SWITCH 600VAC 10A 30MM SK,30 mm,black plastic,spring return left to centre
Schneider Electric,SELECTOR SWITCH 600VAC 10A 30MM SK,30 mm,black plastic,spring return left to centre
Action SPRING RETURN (LEFT TO CENTRE) Actuator 3 POSITIONS,BLACK LONG HANDLE,LEFT TO CENTRE SPRING RETURN Application 9001KA1 SIDE 1 OR 2 ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Cam Code C Catalog Number 9001SKS63FBH13 Contact Mode Momentary/Maintained/Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Enclosure NEMA 1/2/3/3R/4/4X/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/4X/6/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.2000 lb Harmonization Tariff Schedule Code 8536509025 Item Group 21429 Mounting Type Panel Number of Positions 3 Operating Temperature -25-70 A°C Returnable Y Series 9001SK Standard CE-UL LISTED FILE E42259 CCN NKCR-CSA LR24590 CLASS 3211 03,IP66 IEC 60529 Sub Brand 9001SK Substitute Product Catalog Number 9001KA3 Terminal Type Screw/Clamp Throw 70 deg/Left-Center-Right Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round UNSPSC 39122216 UPC 11 78590187735 UPC 12 785901877356 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Black Contact Configuration 1CO Contact Type Slow Break Operator Type Long Handle/Spring Return Size 30 mm 9001KA1 SIDE 1 OR 2 PLASTIC,SELECTOR SWITCH This robust range offers long term reliability in heavy duty industrial applications and extreme environments Simple and easy installation reduces commissioning time Flexible, compact and modular, it enables you to build the right operator to meet your requirements Easy installation with octagonal ring nut
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SPRING RETURN (LEFT TO CENTRE) |
| Actuator | 3 POSITIONS,BLACK LONG HANDLE,LEFT TO CENTRE SPRING RETURN |
| Application | 9001KA1 SIDE 1 OR 2 |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Cam Code | C |
| Catalog Number | 9001SKS63FBH13 |
| Contact Mode | Momentary/Maintained/Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Enclosure | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2000 lb |
| Harmonization Tariff Schedule Code | 8536509025 |
| Item Group | 21429 |
| Mounting Type | Panel |
| Number of Positions | 3 |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001SK |
| Standard | CE-UL LISTED FILE E42259 CCN NKCR-CSA LR24590 CLASS 3211 03,IP66 IEC 60529 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA3 |
| Terminal Type | Screw/Clamp |
| Throw | 70 deg/Left-Center-Right |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Round |
| UNSPSC | 39122216 |
| UPC 11 | 78590187735 |
| UPC 12 | 785901877356 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Black |
| Contact Configuration | 1CO |
| Contact Type | Slow Break |
| Operator Type | Long Handle/Spring Return |
| Size | 30 mm |
| 9001KA1 SIDE 1 OR 2 |
| PLASTIC,SELECTOR SWITCH |
| This robust range offers long term reliability in heavy duty industrial applications and extreme environments |
| Simple and easy installation reduces commissioning time |
| Flexible, compact and modular, it enables you to build the right operator to meet your requirements |
| Easy installation with octagonal ring nut |
