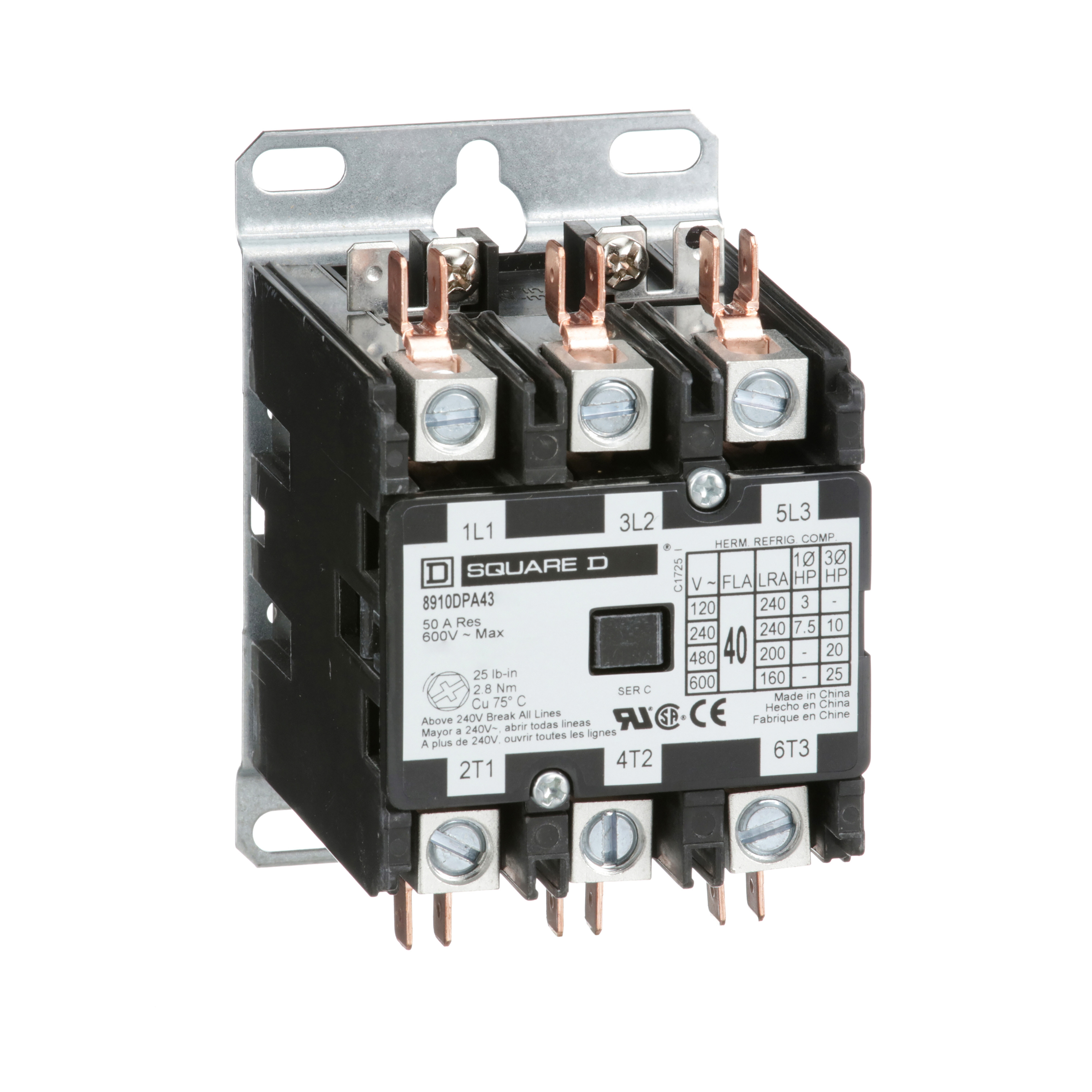

Square D™ 8910DPA43V04 3-Phase Type DPA Definite Purpose Contactor, 277 VAC V Coil, 40 A, 3NO Contact, 3 Poles
Definite Purpose Contactors AC
268285
MFG #: 8910DPA43V04
Square D™
152.04000
/ ea
Square D™ Definite Purpose Contactor, 3-Phase Type DPA, Series: 8910, 277 VAC Coil, 40 A Maximum Load Current, Coil Power Rating: 3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC, 3 Pole, 50/60 Hz, 2.2 kW at 115 V/5.5 kW at 230 V/7.5 kW at 230 V/15 kW at 460/575 V, 3NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500 cpm Operating Cycles, 32 to 149 deg F Operating, Panel Mount, 2.37 in W x 2.9 in D x 3.25 in H
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8152320360Den&ext=webp(360 Degree View URL)
- Brochure URL - c8ca55c81b4ba3ede3adefa9b3fe47d68f680322.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0310201-01-C.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_NDHKIZGT5CUEQYXA.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_YRLZN29P80MVAXD6.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_BZ9QI37KTAPXVFEJ.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_FUZ0WRDB39MPG5KI.zip(Tech Drawing URL)
- Applications
- Features
| Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications |
| 3-3 HP 115 V AC, 1 PHASE-7.5-7.5 HP 230 V AC, 1 PHASE-10-10 HP 230 V AC, 3 PHASE-20-20 HP 460 V AC, 3 PHASE-25-25 HP 575 V AC, 3 PHASE |
| Quick connect terminals and binder head screws allow for easy wiring |
| Box lugs are standard on contactors 40 A and larger |
| Coils can be changed quickly, without a tool, on the type DPA 50 to 90 A contactors |
| Auxiliary contact modules snap-on either side of the type DPA contactors |
| Compact design |
| Industry standard mounting |
| Double break contacts |
| Low coil VA |
| Straight-through wiring |
| 100000 electrical operations on type DP and 200000 on type DPA, SYD |
| 100000 electrical operations on type DP and 200000 on type DPA, SYD |
| Continuous duty cycle |
| Low cost |
| 600 VAC system voltage |
| Quick connect terminals box lugs |
